The Cisco 7507 router provides high reliability, availability, serviceability, and performance. The system supports multiprotocol, multimedia routing, and bridging with a wide variety of protocols and any combination of Ethernet, Fast Ethernet, Token Ring, Fiber Distributed Data Interface (FDDI), serial, multichannel, channel attachment, and High-Speed Serial Interface (HSSI) media. Network interfaces reside on modular interface processors, which provide a direct connection between the two high-speed Cisco Extended Buses (CyBuses) and the external networks.
Online insertion and removal (OIR) allows you to add, replace, or remove interface processors without interrupting the system power or entering any console commands. The redundant power option provides dual load-sharing power supplies that maintain input power without interruption if one supply fails. Environmental monitoring and reporting functions enable you to maintain normal system operation by resolving adverse environmental conditions prior to loss of operation. If conditions reach critical thresholds, the system shuts down to avoid equipment damage from excessive heat or electrical current.
This chapter provides physical and functional overviews to familiarize you with your new system. It contains physical descriptions of the system hardware and major components, and functional descriptions of hardware-related features. Descriptions and examples of software commands appear only when they are necessary for installing or maintaining the system hardware. For complete command descriptions and instructions, refer to the related software reference publications.
Following is a list of acronyms that identify the system components and features:
The router front panel, shown in Figure 1-1, contains three status indicators and two removable panels for access to the internal components. The three light emitting diodes (LEDs) on the front panel indicate normal system operation and the currently active power supplies. On the back of the router, additional LEDs on the RSP2 and power supplies indicate the same status.
The normal LED goes on to indicate that the system is in a normal operating state and is receiving +5-volts direct current (VDC) from the power supplies. The upper power and lower power LEDs go on to indicate that a power supply is installed in the indicated power supply bay and is providing power to the system. The power LEDs go out if the power supply in the corresponding bay reaches an out-of-tolerance temperature or voltage condition. (For descriptions of thresholds and status levels, refer to the section "Environmental Monitoring and Reporting Functions" in this chapter.) The front-panel normal LED is controlled by the RSP2, which contains an identical normal LED that can be seen from the rear of the router.
The rear, or interface processor end, of the router, shown in Figure 1-2, provides access to the seven processor slots and removable power supplies. The lower power supply bay contains the first (standard equipment) power supply, and the upper bay contains the second power supply (optional equipment in systems with redundant power). The processor slots contain up to two RSP2s and up to five network interface processors (collectively referred to as processor modules).
When viewing the router from the rear, a single RSP2 is always located in slot 2 or 3.
The remaining five slots are numbered 0 and 1, and 4 through 6, from left to right, viewing the chassis as shown in Figure 1-2. These interface processor slots support any combination of supported network interface types. The RSP2 and interface processors are keyed with guides on the backplane to prevent them from being fully inserted in the wrong slot. RSP2s can only be inserted in slots 2 and 3 and interface processors can only be inserted in slots 0 and 1 and slots 4 through 6. The RSP2 and interface processors are described in the sections that follow.
The RSP2 and interface processors slide into slots in the rear of the router and connect directly to the CyBus backplane; there are no internal cables to connect. Spring-loaded ejector levers help to ensure that a processor module is either fully connected to the backplane or fully disconnected from it. Captive installation screws at the top and bottom of each processor module faceplate also ensure proper seating in the backplane, and prevent the processor module from disengaging from the backplane. (The system might hang if a processor module pulls away from the backplane and intermittently breaks the connection between the processor module connector and the backplane pins.) Empty slots contain a blank board carrier to maintain proper airflow through the chassis. These blanks are interface processor and RSP2 carriers without boards, LEDs, or connectors.
The system physical specifications and power requirements are listed in Table 1-1.
Table 1-1 Router Physical Specifications
| Description | Specifications |
|---|---|
| High-speed backplane | 1.067-Gbps CyBus (the 7507 has dual CyBuses), 7 slots |
| Dimensions (H x W x D) | 19.25 x 17.5 x 25.1" (48.90 x 44.45 x 63.75 cm)Chassis depth including power cable is 28" (71.12 cm). |
| Weight | Chassis only: 76 lb (34.47 kg)Chassis fully configured with 2 RSP2 and 5 interface processors,and 2 power supplies: 145 lb (65.76 kg) |
| DC-input voltage | --40 volts direct current (VDC) minimum--48 VDC nominal--72 VDC maximum |
| DC voltages supplied and steady-state maximum current ratings | +5.2V @ 100 amps (A)+12V @ 15A--12V @ 3A+24V @ 5A |
| DC-input power | 1000 watts (W) |
| DC-input power supply hold-up time specification | 10 milliseconds (ms) of output after the input has been interrupted |
| DC-input wiring | 8 AWG (American Wire Gauge) wire that you provide |
| Power supply | 700W maximum (AC-input and DC-input power supplies) |
| Power dissipation | 626W maximum configuration, 530W typical with maximum configuration |
| Heat dissipation | 1200W (4100 Btu/hr) |
| Input voltage | 100 to 240 VAC wide input with power factor correction (PFC) |
| Frequency | 50 to 60 Hz (hertz) autoranging |
| AC current rating | 12A maximum at 100 VAC, 6A maximum at 240 VAC with the chassis fully configured |
| Airflow | 140 cfm (cubic feet per minute) through the system blower |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Nonoperating temperature | --4 to 149°F (--20 to 65°C) |
| Humidity | 10 to 90%, noncondensing |
| Agency approvals | Safety: UL 1950, CSA 22.2-950, EN60950: 1992 EMI: FCC Class A, EN55022 Class B, VCCI Class 2 |
The router operates as either a freestanding or rack-mounted unit. An optional rack-mount kit is available for mounting the chassis in an EIA-310C standard 19-inch equipment rack. When the system is not mounted in a rack, place it on the floor or on a sturdy platform.
The top-down view of the chassis shown in Figure 1-3 illustrates the locations of the main system components. The dual arbiter board (which provides CyBus arbitration), the chassis interface board (which contains the environmental monitoring functions), the LED board, and the system blower are located inside the left front of the chassis behind removable front panels.
The blower moves cooling air through the chassis and across the processor modules to prevent components on the boards from overheating. The power supply bays are located next to interface processor slot 0 and are accessible from the rear of the chassis. An air dam keeps cooling air drawn in by the system blower separate from that drawn in by the power supply fans. (Refer to the section "Power Supplies" in this chapter.)
One 700-watt (W), AC-input or DC-input power supply is standard equipment in the router. A second, identical power supply provides a redundant power option. Load sharing and redundancy are automatically enabled when a second power supply is installed; no configuration is required. Each supply has an individual power switch and status LEDs. When only one power supply is used, it should be installed in the bottom power supply bay to maintain a low center of gravity in the router chassis.

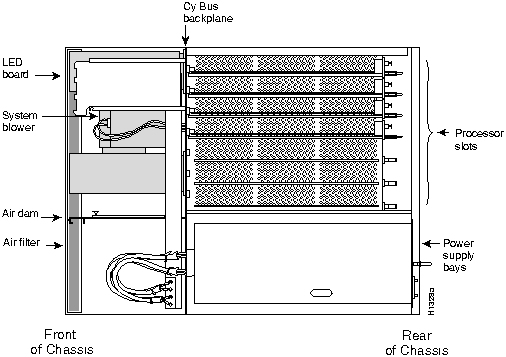

Figure 1-3 Router Top-Down View
The dual-CyBus backplane in the Cisco 7507 has an aggregate bandwidth of 2.134 Gbps. Interface processor slots 0 and 1 comprise CyBus 0, and interface processor slots 4 through 6 comprise CyBus 1. Figure 1-4 shows the orientation of the two CyBuses.

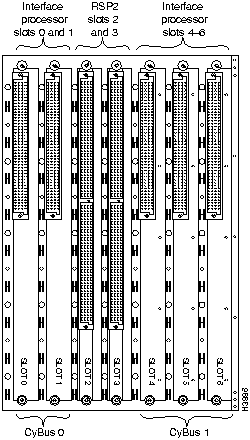

Figure 1-4 CyBus 0 and CyBus 1 Orientation on the Backplane
The RSP2 provides distributed processing and control for the interface processors, and controls communication between high-speed interface processors (interface processor-to-interface processor) and the system processor (interface processor-to-system processor).
Interface processors connected to one CyBus are unaffected by the traffic generated by the interface processors connected to the other CyBus. The two CyBuses are independent of one another.
A chassis identification (memory) device on the backplane contains a bank of hardware (MAC-layer) addresses for the interface processor ports, as well as chassis-specific information.
The backplane slots are keyed so that the processor modules can be installed only in the slots designated for them. Keys on the backplane fit into two key guides on each module. (See Figure 1-5.) These key guides apply to the corresponding blank carriers: MAS-RSPBLANK= for the RSP2 slots and MAS-7KBLANK= for the interface processor slots.
Figure 1-5 Backplane Slot Keys
The dual arbiter, which arbitrates traffic on the dual CyBuses and generates the CyBus clocks, is a printed circuit board that resides on the front of the system backplane inside the front chassis compartment. (See Figure 1-3.) The dual arbiter is a not a spare part; it is a FRU. The dual arbiter arbitrates traffic across the CyBuses by prioritizing access requests from interface processors to ensure that each request is processed and to prevent any interface processor from jeopardizing the CyBus and interfering with the ability of the other interface processors to access the RSP2. Following is a summary of the services that the dual arbiter provides:
The chassis interface provides the environmental monitoring (ENVM) and power supply monitoring functions for the Cisco 7507. (See Figure 1-3 for its relative location.) The chassis interface is not a spare part; it is a FRU.The chassis interface isolates the CPU and system software from chassis-specific variations. The chassis interface attaches directly to the system backplane.
The functions of the chassis interface are as follows:
The router comes equipped with one 700W, AC-input or DC-input power supply. An optional second identical power supply also is available for redundant power. Dual power supplies are automatically load sharing and redundant, which means a second power supply can be installed or replaced without interrupting system operation. Power supplies are available as spare parts.
Each power supply should be connected to a separate power source so that, in case of an input power line or power supply failure, the second power supply maintains uninterrupted system power.
You must turn the power (on/off) switch (shown in Figure 1-6) to the off (O) position before you can remove the power supply from the chassis. When the power supply switch is in the on (|) position, a locking device on the switch slides into a slot in the power supply bay to lock the power supply in the chassis. (See Figure 1-6.) When the switch is in the off (O) position, the tab retracts so that you can slide the power supply out.
Figure 1-6 Power Supply Faceplate (AC-Input Power Supply Shown)
On the router front panel, the upper power and lower power LEDs go on when the power supply in the corresponding bay is installed and supplying power to the system. Both the upper and lower power LEDs should go on in systems with redundant power. All power-related LEDs are described in the appendix "Reading LED Indicators."
The power supplies are self-monitoring. Each supply monitors its own temperature and internal voltages. For a description of power supply shutdown conditions and thresholds, refer to the section "Environmental Monitoring and Reporting Functions" in this chapter.
For AC-input power supplies, a modular power cable connects each power supply to the site power source. A cable retention clip on the power supply AC receptacle prevents the cable from accidentally being pulled out.
For DC-input power supplies, you supply the power cable based on the specifications provided in Table 1-1. Strain relief is provided by two nylon cable ties that you provide. For power supply installation procedures refer to the section "Installing Power Supplies" in the chapter "Installing the Router."
The system blower provides cooling air for the processor modules. The blower is located inside the front chassis compartment as shown in Figure 1-7. An internal fan in each power supply draws cooling air from the front of the chassis, through the power supply, and out the back of the chassis. An air dam keeps the power supply airflow separate from that of the rest of the chassis, which is cooled by the system blower. (See Figure 1-7.)

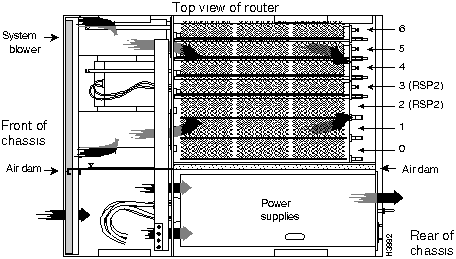

Figure 1-7 Internal Airflow (Top-Down View)
The blower draws air in through the air filter in the front chassis panel and directs it up through the floor of the internal slot compartment and over the boards. The exhaust air is forced out the rear of the chassis above and to each side of the processor slots. Figure 1-7 shows the airflow path.
The blower needs a clean air filter in order to draw in sufficient amounts of cooling air; excessive dust in the filter will restrict the airflow. Keep the air filter clean and replace it when needed. the chapter "Maintaining the Router" provides air filter cleaning and replacement procedures. The blower is available as a spare part.
Sensors on the RSP2 monitor the inlet and internal chassis air temperatures. If the air temperature at either of the sensors exceeds a desired threshold, the environmental monitoring system displays warning messages and can interrupt system operation to protect the system components from possible damage from excessive heat or electrical current. For specific threshold and status level descriptions, refer to the section "Environmental Monitoring and Reporting Functions" in this chapter.
The RSP2 shown in Figure 1-8 is the main system processor in the router. The RSP2 contains the system CPU and system memory components. It maintains and executes the management functions that control the system. The system software is contained on the RSP2 in either a Flash memory, single in-line memory module (SIMM) or in a Personal Computer Memory Card International Association (PCMCIA) Flash memory card.
The RSP2 contains the following components:
In addition to the preceding system components, the RSP2 contains and executes the following management functions that control the system:
The high-speed switching section of the RSP2 communicates with and controls the interface processors on the CyBus. This section decides the destination of a packet and switches the packet based on that decision. The RSP2 uses a 16-million-instructions-per-second (mips) processor to provide high-speed, optimum switching and routing. The single enabled LED goes on to indicate that the RSP2 is receiving +5V and enabled for operation.
Figure 1-8 shows the locations of the various types of memory on the RSP2, and Table 1-2 lists the functions of each.
Figure 1-8 Route Switch Processor (Horizontal Orientation)
Table 1-2 RSP2 Memory Components
| Type | Size | Quantity | Description | Location |
|---|---|---|---|---|
| DRAM(1) | 16 to 128 MB(2) | 2 to 4 | 8, 16, or 32-MB SIMMs (based on maximum DRAM required). | Bank 0: U21 and U33 Bank 1: U4 and U12 |
| NVRAM(3) | 128 KB(4) | 1 | Nonvolatile EPROM(5) for the system configuration file.(6) | U18 |
| Flash SIMMFlash Card | 8 MB8, 16, and 20 MB(7) | 1Up to 2 | Contains the Cisco IOS images on the RSP2.Contains the Cisco IOS images on up to two PCMCIA cards. | U1Slot 0 and Slot 1 |
| Boot ROM(8) | 256 KB | 1 | EPROM for the ROM monitor program. | U30 |
The Cisco 7507 router supports downloadable system software and microcode for most upgrades; you can remotely download, store, and boot from a new image. Upgrade documentation accompanies all upgrade kits, and provides instructions for upgrading software from either floppy disks or over the network.
Flash memory on the RSP2 contains the default system software. An EPROM device on each interface processor contains the latest interface processor microcode version in compressed form. At system startup, an internal system utility scans for compatibility problems between the installed interface processor types and the bundled microcode images, then decompresses the images into running memory (DRAM). The bundled microcode images then function the same as images loaded from the microcode EPROM.
DRAM stores routing tables, protocols, and network accounting applications. The standard RSP2 configuration is 16 MB of DRAM, with up to 128 MB available through SIMM upgrades.
The NVRAM stores the system configuration and the environmental monitoring logs, and is backed up with built-in lithium batteries that retain the contents for a minimum of five years. When replacing an RSP2 in a Cisco 7507 with a single RSP2, be sure to back up your configuration to a remote server so that you can retrieve it later. (See the Timesaver note that follows.)
Either the imbedded (onboard) Flash memory (on a SIMM) or the Flash memory on a Flash memory (PCMCIA) card, allows you to remotely load and store multiple Cisco IOS software and microcode images. You can download a new image over the network or from a local server and then add the new image to Flash or replace the existing files. You can then boot routers either manually or automatically from any of the stored images. Flash memory also functions as a TFTP server to allow other servers to remotely boot from stored images or to copy them into their own Flash memory.
An electrically erasable programmable read-only memory (EEPROM) component on the RSP2 (and each interface processor) stores board-specific information such as the board serial number, part number, controller type, hardware revision, and other details unique to each board.
Because the RSP2 uses a software configuration register for system configuration and Flash memory for system software images, there are no user-configurable jumpers on the RSP2.
The two LEDs on the RSP2 indicate the system and RSP2 status. The normal LED is on when the system is operational; during normal operation the CPU halt LED should be off. The CPU halt LED, which goes on only if the system detects a processor hardware failure, should never be on. For complete descriptions of the LED states, refer to the appendix "Reading LED Indicators."
Two asynchronous EIA/TIA-232 serial ports on the RSP2, the console and auxiliary ports, provide the means for connecting a terminal, modem, or other device for configuring and managing the system. A data circuit-terminating equipment (DCE) EIA/TIA-232 receptacle console port on the RSP2 provides a direct connection for a console terminal.
The adjacent data terminal equipment (DTE) EIA/TIA-232 plug auxiliary port supports flow control and is often used to connect a modem, a channel service unit (CSU), or other optional equipment for Telnet management of the attached device.
The console and auxiliary ports support asynchronous transmission. Asynchronous transmission uses control bits to indicate the beginning and end of characters rather than precise timing. The serial interface ports on the FSIP support synchronous transmission, which maintains precise clocking between the transmitter and receiver by sending frames of information that comprise separate clock signals along with the data signals. When connecting serial devices, ensure that the devices support the proper transmission timing methods for the respective port: asynchronous for the console and auxiliary ports, and synchronous for the FSIP and MIP serial ports.
An interface processor consists of a modular, self-contained interface board and one or more network interface connectors in a single 11 x 14-inch unit. All interface processors support OIR, so you can install and remove them without opening the chassis and without turning off the chassis power.
Following are descriptions of the interface processors:
The microcode on each interface processor contains board-specific software instructions. New features and enhancements to the system or interfaces are often implemented in microcode upgrades.
The Cisco 7507 supports downloadable microcode, which enables you to download new microcode images remotely and store them in Flash memory. You can then use software commands to load a specific microcode image from Flash memory or to load the default microcode image from ROM.
System software upgrades also can contain upgraded microcode images, which will load automatically when the new software image is loaded. With this downloadable microcode feature, you will probably never need to replace the microcode ROM on the board. If replacement is necessary in the future, refer to the section "Microcode Component Replacement" in the chapter "Maintaining the Router." Specific instructions will also be provided with the replacement component in an upgrade kit.
Each interface processor has a unique bank of status LEDs, and all have a common enabled LED at the top of the interface processor face plate. The enabled LED goes on when the RSP2 has completed initialization of the interface processor for operation, indicating that, as a minimum, the interface processor is correctly connected to the backplane, that it is receiving power, and that it contains a valid microcode version. If any of these conditions is not met, or if the initialization fails for other reasons, the enabled LED does not go on. Additional LEDs on each interface processor type indicate the state of the interfaces.
The following sections describe each interface processor type. The appendix "Reading LED Indicators" describes the specific LED states of each.
The AIP provides a direct connection between the high-speed CyBus and the external networks. (See Figure 1-9.) The AIP can support the following data transmission rates: Transparent Asynchronous Transmitter/Receiver Interface (TAXI) 4B/5B at 100 Mbps, Synchronous Optical Network/Synchronous Digital Hierarchy (SONET/SDH) at 155 Mbps, E3 at 34 Mbps, and DS3 at 44.736 Mbps (± 20 parts per million [ppm]). The default AIP microcode resides on an EPROM in socket U111.
Figure 1-9 ATM Interface Processor (User-to-Network Interface PLIM Shown)
The specific physical layer interface module (PLIM) on the AIP determines the type of ATM connection. There are no restrictions on slot locations or sequence; an AIP can be installed in any available interface processor slot. The AIP supports the following features:
Following are the product numbers associated with the AIP:
For more information on the AIP, refer to the sections "Distance Limitations" and "AIP Connection Equipment" in the chapter "Preparing for Installation." Also refer to the Asynchronous Transfer Mode Interface Processor (AIP) Installation and Configuration publication (Document Number 78-1214-xx), available on Cisco Connection Documentation CD-ROM or in print.
The CIP provides up to two channel-attached interfaces, eliminating the need for a separate front-end processor. (See Figure 1-10.) The CIP interfaces are combinations of a bus and tag (also called an original equipment manufacturer's interface [OEMI] and a parallel I/O interface) adapter and/or an Enterprise Systems Connection (ESCON) adapter. The bus and tag adapter is called the Parallel Channel Adapter (PCA) and the ESCON adapter is called the ESCON Channel Adapter (ECA). The PCA and ECA connect directly to the CIP, and any combination of the two adapters can be used.
Figure 1-10 Channel Interface Processor (Combination PCA and ECA Shown)
The supported processor input/output architectures for the CIP include ESA/390 for ESCON and System/370, 370/Xa, and ESA/390 for bus and tag. The ESCON interface is capable of a data rate up to 17 megabytes per second (MBps), and the bus and tag interface is capable of a data rate up to 4.5 MBps. Only the CIP microcode boot image resides on an EPROM in socket U37. (See Figure 1-10.) The entire CIP microcode image is located in the software/microcode bundle.
There are three carrier types: PCA-ECA carrier, dual ECA carrier, and dual PCA carrier. Following are the product numbers and carrier types associated with the CIP:
For more information on the CIP, refer to the Channel Interface Processor (CIP) Installation and Configuration publication (Document Number 78-1342-xx), available on Cisco Connection Documentation CD-ROM, or in print.
The EIP, shown in Figure 1-11, provides two, four, or six Ethernet ports that operate at up to 10 Mbps. A bit-slice processor provides a high-speed data path between the EIP and other interface processors. The default EIP microcode resides on an EPROM in socket U101.
Figure 1-11 Ethernet Interface Processor
Each port requires an Ethernet transceiver or a media attachment unit (MAU) and attachment unit interface (AUI) cable to connect to the external network. Following are the product numbers associated with the EIP:
For descriptions of Ethernet transceivers and AUIs, refer to the section "Ethernet Connection Equipment" in the chapter "Preparing for Installation." For descriptions of Ethernet network connections, refer to the section "Ethernet Connections" in the chapter "Installing the Router."
Each port on the EIP automatically supports both Ethernet Version 1 and Version 2/IEEE 802.3 connections. When an interface is connected to an EIP port, the port automatically adjusts to the interface type. The ports are independent, so you can mix both versions on one EIP.
The FEIP provides up to two 100-Mbps, IEEE 802.3u 100BASE-T ports. (Figure 1-12 shows a two-port FEIP.) IEEE 802.3u specifies several different physical layers for 100BASE-T: 100BASE-TX---100BASE-T half duplex, over Category 5, unshielded twisted-pair (UTP), EIA/TIA-568-compliant cable; 100BASE-FX---100BASE-T full duplex, over twisted pair or optical fiber); and 100BASE-T4---100BASE-T full duplex, using Category 3 and 4 cabling with four pairs (also called 4T+).
Figure 1-12 Fast Ethernet Interface Processor
Following are the product numbers associated with the FEIP:
The interfaces on an FEIP can both be configured at 100 Mbps, half duplex (HDX) or full duplex (FDX), for a maximum aggregate bandwidth of 200 Mbps. The FEIP microcode boot image resides in an EPROM in socket location U37.
The FIP contains the industry-standard AMD SuperNet chipset for interoperability, and a 16-million instructions per second (mips) processor for high-speed (100 Mbps) interface rates. There are no restrictions on slot locations or sequence; you can install a FIP in any available interface processor slot.
Figure 1-13 shows a multimode/multimode FIP on the bottom and a single-mode/multimode FIP on the top. The FIP supports single attachment stations (SASs), dual attachment stations (DASs), dual homing, and optical bypass for both multimode and single-mode operation. The FIP complies with ANSI X3.1 and ISO 9314 FDDI standards. The default FIP microcode resides on an EPROM in socket U23.
Figure 1-13 FDDI Interface Processor
Each FIP provides a single network interface for both multimode and single-mode FDDI networks. The two FIP connectors are available in any combination of multimode (MIC) or single-mode (FC) connectors for matching multimode and single-mode fiber in the same FDDI network. Following are the product numbers associated with the FIP:
Each FIP provides the interface for connection to a Class A, DAS (with primary and secondary rings), or to a Class B, SAS (with only a primary ring). The multimode MIC or single-mode FC ports on the FIP provide a direct connection to the external FDDI network.
A six-pin mini-DIN connector on the multimode/multimode and single-mode/single-mode FIPs provides the connection for an optical bypass switch. When the interface is shut down, the bypass switch allows the light signal to pass directly from the receive port to the transmit port on the bypass switch, completely bypassing the FIP transceivers. The bypass switch does not repeat the signal, and significant signal loss may occur when transmitting to stations at maximum distances.
Optical bypass switches typically use a six-pin DIN or mini-DIN connector. A DIN-to-mini-DIN adapter cable (CAB-FMDD) is included with the FIP to allow connection to either type of connector. For a detailed description of optical bypass and FDDI connections, refer to the section "FDDI Connection Equipment" in the chapter "Preparing for Installation." For descriptions of FDDI network connections, refer to the section "FDDI Connections" in the chapter "Installing the Router."
The FSIP provides four or eight channel-independent, synchronous serial ports that support full- duplex operation at T1 (1.544 Mbps) and E1 (2.048 Mbps) speeds. Each port supports any of the available interface types: EIA/TIA-232, EIA/TIA-449, V.35, X.21, EIA-530, and E1-G.703/G.704. Figure 1-14 shows an eight-port FSIP. The eight ports are divided into two four-port modules, each of which is controlled by a dedicated Motorola MC68040 processor and contains 128 kilobytes (KB) of static random-access memory (SRAM). Each module can support up to 4 T1 or 3 E1 interfaces, and an aggregate bandwidth of up to 8 Mbps at full-duplex operation. The type of electrical interface, the amount of traffic, and the types of external data service units (DSUs) connected to the ports affect actual rates. For information on setting up high-speed interfaces, refer to the section "Configuring the FSIP" in the chapter "Maintaining the Router." The default FSIP microcode resides on a PLCC-type EPROM in socket U81.
Figure 1-14 Fast Serial Interface Processor
Additional port adapters are available as spares so that you can replace one that fails; however, you cannot upgrade a four-port FSIP to an eight-port by adding port adapters. Each FSIP comprises an FSIP board with two or four port adapters installed. Following are the FSIP product numbers:
The four-port FSIP is not constructed to support additional ports after it leaves the factory. It contains the circuitry to control only one four-port module. For port adapter descriptions, refer to "Universal Serial Port Adapters" which follows in this section.
There are no restrictions on slot locations or sequence; you can install FSIPs in any available interface processor slots. For descriptions of serial connection equipment, refer to the section "Serial Connection Equipment" in the chapter "Preparing for Installation." For examples of network connections, refer to the section "Serial Connections" in the chapter "Installing the Router."
All interface types except EIA-530 and E1-G.703/G.704 are individually configurable for operation with either external timing (DTE mode) or internal timing (DCE mode); EIA-530 operates with external timing only. In addition, all interfaces support nonreturn to zero (NRZ) and nonreturn to zero inverted (NRZI) format, and both 16-bit and 32-bit cyclic redundancy checks (CRCs). The default configuration is for NRZ format and 16-bit CRC. You can change these default settings with software commands. (See the section "Configuring the FSIP" in the chapter "Maintaining the Router.")
In order to provide a high density of ports, the FSIP uses special port adapters and adapter cables. A port adapter is a daughter card that provides the physical interface for two FSIP ports. Both ports use the same high-density, 60-pin universal receptacle that supports all interface types. The adapter cable connected to the port determines the interface type and mode.
The interface ports are not set to a default mode or for a default clock source, so there are no software commands required to enable internal or external timing (DCE or DTE). Each port automatically supports the mode of the port adapter cable when one is connected. However, there is no default clock rate set. You must set the clock rate on all DCE ports with the clockrate command before the port can operate with an external timing signal.
To use the port as a DCE interface, you must set the clock rate and connect a DCE adapter cable. To use the port as a DTE interface, you need only connect a DTE adapter cable to the port. If you connect a DTE cable to a port on which a clock rate is set, the system will ignore the clock rate until a DCE cable is attached. For example, you can change an interface from an EIA/TIA-232 to a V.35 by replacing the adapter cable, or change the mode of an EIA/TIA-232 DTE port by replacing the EIA/TIA-232 DTE cable with an EIA/TIA-232 DCE cable, provided that you have already specified a clock rate for the port.
The FSIP uses special universal serial port adapters and adapter cables to allow up to eight interface ports on an FSIP, regardless of the size or form factor of the connectors typically used with each electrical interface type. Figure 1-15 shows a universal serial port adapter with the 60-pin connectors that support all interface types. The adapter cable connected to the port determines the interface type and mode.
The universal port adapters are field-replaceable daughter cards mounted to the FSIP, and each provides two high-density connectors for two FSIP ports. (See Figure 1-15.) The 60-pin D-shell receptacle supports EIA/TIA-232, V.35, EIA/TIA-449, X.21, and EIA-530.
Figure 1-15 Universal Serial Port Adapter
The router (FSIP) end of all universal-type adapter cables is a 60-pin plug that connects to the 60-pin port (receptacle) on the FSIP. The network end of the cable is an industry-standard connector for the type of electrical interface that the cable supports: DB-25 for EIA/TIA-232 and EIA-530, DB-37 for EIA/TIA-449, DB-15 for X.21, or a standard V.35 block connector. For most interface types, the adapter cable for DTE mode uses a plug at the network end, and the cable for DCE mode uses a receptacle at the network end. However, V.35 adapter cables are available with either a V.35 plug or a receptacle for either mode, and EIA-530 is available only in DTE mode with a DB-25 plug.
Factory-installed 4-40 thumbscrews are standard at the network end of all cable types except V.35. A metric conversion kit with M3 thumbscrews is included with each cable to allow connection to devices that use metric hardware.
The FSIP is shipped from the factory with two or four dual-port adapters installed. Additional port adapters are available as spares so that you can replace one that fails; however, you cannot upgrade a four-port FSIP to an eight-port by adding port adapters. The four-port FSIP is manufactured with only one four-port module and processor.
For port adapter replacement instructions, refer to the section "Configuring the FSIP" in the chapter "Maintaining the Router." The appendix "Cabling Specifications" provides adapter cable pinouts. However, because the FSIP uses a special high-density port that requires special adapter cables for each electrical interface type, we recommend that you obtain serial interface cables from the factory.
The FSIP E1-G.703/G.704 port adapter (see Figure 1-16) connects the Cisco 7507 with 2-Mbps leased-line services. The interface eliminates the need for a separate, external data termination unit to convert a standard serial interface (such as V.35) to a G.703/G.704/G.732 interface.
Figure 1-16 FSIP E1-G.703/G.704 Port Adapter
The FSIP can be configured to support up to eight E1-G.703/G.704 ports (four ports per module, two modules per FSIP). FSIP bandwidth can be allocated by the user, and the maximum aggregate bandwidth per four-port module is 16 Mbps, full duplex. We recommend that you leave one port on each module shut down to avoid exceeding this 16-Mbps maximum per module. Each of the four interfaces can operate up to 2.048 Mbps, which potentially presents a load greater than 16 Mbps, full duplex, if all four interfaces are configured. Eight E1-G.703/G.704 ports can be supported up to the 16-Mbps aggregate bandwidth capability; however, it is not possible to simultaneously support eight E1-G703/G.704 ports at 100-percent peak bandwidth utilization, without exceeding the 16-Mbps maximum per module.
Two versions of the E1-G.703/G.704 interface are available: one supports balanced mode, and the other supports unbalanced mode. Neither the modes nor the cables are interchangeable; you cannot configure a balanced port to support an unbalanced line, nor can you attach an interface cable intended for a balanced port to an unbalanced port.
The FSIP E1-G.703/G.704 interface supports both framed and unframed modes of operation, a loopback test, and a four-bit CRC. The interface can operate with either a line-recovered or an internal clock signal. The FSIP is configured at the factory with from one to four E1-G.703/G.704 port adapters. Each port adapter provides two 15-pin D-shell (DB-15) receptacles, which support only E1-G.703/G.704 interfaces.
The FSIP E1-G.703/G.704 interface uses a DB-15 receptacle for both the balanced and unbalanced ports. The label adjacent to the port indicates whether the port is balanced or unbalanced; you must connect the correct type of interface cable or the port will not operate.
The FSIP end of all E1-G.703/G.704 adapter cables is a DB-15 connector. At the network end, the adapter cable for unbalanced connections uses a BNC connector. The adapter cables for balanced mode are available with several connector types to accommodate connection standards in different countries. You must use the proprietary cables to connect the E1-G.703/G.704 port to your network.
Cables for balanced and unbalanced mode are available with the following types of network-end connectors:
In addition, some connections require bare-wire connections (directly to terminal posts).
Table 1-3 lists the model numbers and descriptions of the E1-G.703/G.704 port adapters and cables.
Table 1-3 Model Numbers and Descriptions of E1-G.703/G.704 Port Adapter and Cables
| Port Adapter and Cable Model Numbers | Description |
|---|---|
| PA-7KF-E1/120=(1) | Dual-port E1-G.703/G.704 120 ohm, balanced |
| PA-7KF-E1/75= | Dual-port E1-G.703/G.704 75 ohm, unbalanced |
| CAB-E1-TWINAX= | E1 cable twinax 120 ohm, balanced, 5 m |
| CAB-E1-DB15= | E1 cable, DB-15, 120 ohm, balanced, 5 m |
| CAB-E1-BNC= | E1 cable BNC 75 ohm, unbalanced, 5 m |
The HIP, shown in Figure 1-17, provides a full-duplex, synchronous serial interface for transmitting and receiving data at rates of up to 52 Mbps. HSSI, recently standardized as EIA/TIA-612/613, provides access to services at T3 (45 Mbps), E3 (34 Mbps), and SONET STS-1 (51.82 Mbps) rates. The actual rate of the interface depends on the external DSU and the type of service to which it is connected. The default HIP microcode resides on an EPROM in socket U133.
Figure 1-17 HSSI Interface Processor
The HIP interface port is a 50-pin, SCSI-II-type receptacle; however, you need an HSSI interface cable to connect the HIP with an external DSU.
A null modem cable allows you to connect two collocated routers back to back to verify the operation of the HSSI interface or to build a larger node by linking the routers directly. For a description of HSSI network and null modem connections, refer to the section "HSSI Connections" in the chapter "Installing the Router." The appendix "Cabling Specifications" provides connector pinouts and cable assembly drawings.
Following are the product numbers associated with the HIP:
There are no restrictions on slot locations or sequence; you can install a HIP in any available interface processor slot.
The MIP provides up to two channelized T1 or E1 connections via serial cables to a CSU. On the MIP, two controllers can each provide up to 24 T1 channel-groups or 30 E1 channel-groups. Each channel-group is presented to the system as a serial interface that can be configured individually.
The MIP, shown in Figure 1-18, provides one or two controllers for transmitting and receiving data bidirectionally at the T1 rate of 1.544 Mbps or one or two controllers for transmitting and receiving data bidirectionally at the E1 rate of 2.048 Mbps. For wide-area networking, the MIP can function as a concentrator for a remote site. The default MIP microcode resides on an EPROM in socket U41.
Figure 1-18 Multichannel Interface Processor (Dual-Port Module Shown)
Following are the product numbers associated with the MIP:
There are no restrictions on slot locations or sequence; you can install a MIP in any available interface processor slot.
The TRIP, shown in Figure 1-19, provides two or four Token Ring ports for interconnection with IEEE-802.5 and IBM Token Ring media. The TRIP uses the IBM 16/4-Mbps chipset with an imbedded, performance-enhanced interface driver and a 16.7-MHz bit-slice processor for high-speed processing. The speed on each port is independently software-configurable for either 4 or 16 Mbps. The default TRIP microcode resides on an EPROM in socket U41.
Figure 1-19 Token Ring Interface Processor
The TRIP is available with two or four ports. Each port requires a media access unit (MAU) to connect the DB-9 TRIP connectors to the external Token Ring networks. There are no restrictions on slot locations or sequence; you can install a TRIP in any available interface processor slot.
Following are the product numbers associated with the TRIP:
For descriptions of Token Ring connectors and MAUs, refer to the section "Token Ring Connection Equipment" in the chapter "Preparing for Installation." For descriptions of Token Ring network connections, refer to the section "Token Ring Connections" in the chapter "Installing the Router."
This section describes functions that support the router's high availability and maintainability. OIR for interface processors and redundant hot-swap for power supplies enable you to quickly install new equipment without interrupting system power or shutting down interfaces. The environmental monitoring and reporting functions continuously monitor temperature and voltage points in the system, and provide reports and warning messages that enable you to quickly locate and resolve problems and maintain uninterrupted operation. The redundant power option provides dual load-sharing power supplies. In the event of a power supply failure, or if one of two separate power sources fails, the redundant power option assures uninterrupted operation.
Each interface (port) in a Cisco 7507 uses different types of addressing. The slot/port number is the actual physical location of the interface connector (port) within the chassis (slot). The system software uses the slot/port numbers to control activity within the router and to display status information. These slot/port numbers are not used by other devices in the network; they are specific to the individual router and its internal components and software.
The Media Access Control (MAC) layer or hardware address is a standardized data link layer address that is required for every port or device that connects to a network. The Cisco 7507 uses a specific method to assign and control the MAC-layer addresses of its interfaces.
The following sections describe how the Cisco 7507 assigns and controls both the slot/port numbers and MAC--layer addresses for interfaces within the chassis.
In the Cisco 7507, slot/port numbers specify the actual location of each interface port on the router interface processors. (See Figure 1-20.) The number uses the format slot/port. The first number identifies the slot in which the interface processor is installed (0 through 6, beginning at the far left slot). The second number identifies the port number on the interface processor. The ports on each interface processor are numbered sequentially from top to bottom beginning with the port 0.
Interface ports maintain the same slot/port number regardless of whether other interface processors are installed or removed. However, when you move an interface processor to a different slot, the first number changes to reflect the new slot number. For example, on a six-port EIP in slot 0, the slot/port number of the first (top) port is 0/0 and that of the last (bottom) port is 0/5. If you remove the EIP from slot 0 and install it in slot 1, the slot/port numbers of those same ports become 1/0 and 1/5, respectively.

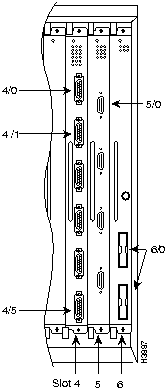

Figure 1-20 shows some of the slot/port numbers of a sample system.
Figure 1-20 Interface Slot/Port Number Examples (Slots 4, 5, and 6 Shown)
Interface slots are numbered 0 and 1, and 4 through 6 from left to right. The port numbers always begin at 0 and are numbered from top to bottom. The number of additional ports depends on the number of ports available on an interface. For example, FDDI interfaces are always /0, because each FIP supports one interface. (The multiple connectors on the FIP can be misleading, but they provide multiple attachment options for a single FDDI interface.) Ethernet interfaces can be numbered from /0 through /5 because EIPs support up to six Ethernet ports. Serial interfaces on an eight-port FSIP are numbered /0 through /7, and so forth.
You can identify interface ports by physically checking the slot/port number on the back of the router or by using software commands to display information about a specific interface or all interfaces in the router. To display information about every interface, use the show interface command without arguments. To display information about a specific interface, use the show interface command with the interface type and slot/port number in the format show interface [type slot/port]. If you abbreviate the command (sho int) and do not include arguments, the system interprets the command as show interface and displays the status of all interfaces.
Following is an example of how the show interface command, used without arguments, displays status information (including the physical slot/port number) for each interface in the router. In the following example, most of the status information for each interface is omitted.
Router# sh int
Serial0/0 is up, line protocol is up
Hardware is cxBus Serial
Internet address is 1.1.1.4, subnet mask is 255.255.255.0
(display text omitted)
Ethernet1/2 is up, line protocol is up
Hardware is cxBus Ethernet, address is 0000.0c02.d0f1 (bia 0000.0c02.d0f1)
(display text omitted)
Fddi4/0 is administratively down, line protocol is down
Hardware is cxBus Fddi, address is 0000.0c02.adc2 (bia 0000.0c02.adc2)
Internet address is 1.1.1.8, subnet mask is 255.255.255.0
(display text omitted)
You can also use arguments such as the interface type (ethernet, tokenring, fddi, serial, hssi, and so forth) and the port address (slot/port) to display information about a specific interface only.
The following example shows the display for the first (far left) Ethernet port on an EIP in slot 1:
Router# sh int ether 1/0
Ethernet1/0 is up, line protocol is up
Hardware is cxBus Ethernet, address is 0000.0c02.d0ce (bia 0000.0c02.d0ce)
Internet address is 1.1.1.3, subnet mask is 255.255.255.0
MTU 1500 bytes, BW 10000 Kbit, DLY 1000 usec, rely 255/255, load 1/255
Encapsulation ARPA, loopback not set, keepalive set (10 sec)
(display text omitted)
For complete command descriptions and instructions, refer to the Router Products Configuration Guide and Router Products Command Reference publications.
All network interface connections (ports), except serial ports, require a unique MAC address, which is also known as a hardware address. Typically, the MAC address of an interface is stored on a memory component that resides directly on the interface circuitry; however, the OIR feature requires a different method.
The OIR feature allows you to remove an interface processor and replace it with another identically configured one. If the new interfaces match the interfaces you removed, the system immediately brings them on line. In order to allow OIR, an address allocator with unique MAC addresses is stored in a memory device on the backplane. Each address is reserved for a specific slot/port in the router regardless of whether an interface resides in that port. The MAC addresses are assigned to the ports in sequence; the first address is assigned to the first port on the interface processor in slot 0 and the last address is assigned to the last port on the interface processor in slot 3. This address scheme allows you to remove interface processors and insert them into other routers without causing the MAC addresses to move around the network or be assigned to multiple devices.
Note that if the MAC addresses were stored on each interface processor, OIR would not function because you could never replace one interface with an identical one; the MAC addresses would always be different. Also, each time an interface was replaced, other devices on the network would have to update their data structures with the new address, and, if they did not do so quickly enough, could cause the same MAC address to appear in more than one device at the same time.
Storing the MAC addresses in a memory device on the backplane avoids these problems. When an interface is replaced with another identical interface, there is no need for other devices in the network to update their data structures and routing tables.
The OIR function allows you to install and replace interface processors while the system is operating; you do not need to notify the software or shut down the system power. All interface processors support online insertion and removal. The following is a functional description of OIR for background information only; for specific procedures for installing and replacing interface processors on line, refer to the sections "Removing Interface Processors" and "Installing Interface Processors" in the chapter "Maintaining the Router."
Each interface processor contains a bus connector with which it connects to the system backplane. Each card connector comprises a set of tiered pins in three lengths. The pins send specific signals to the system as they make contact with the backplane. The system assesses the signals it receives and the order in which it receives them to determine what event is occurring and what task it needs to perform, such as reinitializing new interfaces or shutting down removed ones. For example, when inserting an interface processor, the longest pins make contact with the backplane first, and the shortest pins make contact last. The system recognizes the signals and the sequence in which it receives them. The system expects to receive signals from the individual pins in this logical sequence, and the ejectors help to ensure that the pins mate in this sequence.
When you remove or insert an interface processor, the backplane pins send signals to notify the system, which then performs as follows:
OIR functionality enables you to add, remove, or replace interface processors while the system is on line. This provides a method that is seamless to end users on the network, maintains all routing information, and ensures session preservation.
When you insert a new interface processor, the system runs a diagnostic on the new interfaces and compares them to the existing configuration. If this initial diagnostic fails, the system remains off line for another 15 seconds while it performs a second set of diagnostics to determine whether or not the interface processor is faulty and if normal system operation is possible.
If the second diagnostic test passes, which indicates that the system is operating normally and the new interface processor is faulty, the system resumes normal operation but leaves the new interfaces disabled.
If the second diagnostic fails, the system crashes, which usually indicates that the new interface processor has created a problem in the bus and should be removed.
The system brings on line only interfaces that match the current configuration and were previously configured on line; all others require that you configure them with the configure command. On interface processors with multiple interfaces, only the interfaces already configured are brought on line. For example, if you replace an EIP-4 with an EIP-6, only the four previously configured interfaces (ports /0 through /3) are brought on line; the last two remain in the down state until you configure them and bring them on line.
The function of the ejector levers (see Figure 1-21) is to align and seat the card connectors in the backplane. Failure to use the ejectors and insert the interface processor properly can disrupt the order in which the pins make contact with the backplane. Following are examples of incorrect insertion practices and results:
It is also important to use the ejector levers when removing an interface processor to ensure that the board connector pins disconnect from the backplane in the logical sequence expected by the system. Any interface processor that is only partially connected to the backplane can hang the bus.
Figure 1-21 Ejector Levers and Captive Installation Screws
The Cisco 7507 supports downloadable microcode for most upgrades, which enables you to load new microcode images into Flash memory instead of replacing the microcode ROMs on the boards. The latest microcode version for each interface processor type is bundled with the system software image. New microcode images are now distributed on floppy disk as part of a software maintenance release; microcode upgrades are no longer distributed individually.
The default operation is to load the microcode from the bundled image. At system startup, an internal system utility scans for compatibility problems between the installed interface processor types and the bundled microcode images, then decompresses the images into running memory (DRAM). The bundled microcode images then function the same as images loaded from the individual microcode ROMs on the processor modules. You can override the default and instruct the system to load a specific microcode image from a Flash memory file or from the microcode ROM with the microcode [card type] flash [file name] command.
The show microcode command lists all of the microcode images that are bundled with the system software image. In order to support online insertion and replacement (OIR), the system loads a microcode image for all available processor types.
Following is an example of the show microcode command (microcode versions are examples only):
Router# show microcode Microcode bundled in system Card Microcode Target Hardware Description Type Version Version ---- --------- --------------- ----------- EIP 10.1 1.x EIP version 10.1 FIP 10.2 2.x FIP version 10.2 TRIP 10.1 1.x TRIP version 10.1 AIP 10.5 1.x AIP version 10.5 FEIP 10.1 1.x FEIP version 10.1 FSIP 10.6 1.x FSIP version 10.6 HIP 10.2 1.x HIP version 10.2 MIP 11.0 1.x MIP version 11.0 CIP 10.3 1.x CIP version 10.3 Router#
The microcode version and description lists the bundled microcode version for each processor type, which is not necessarily the version that is currently loaded and running in the system. A microcode image that is loaded from ROM or a Flash memory file is not shown in this display. To display the currently loaded and running microcode version for each processor type, issue the show controller cybus command.
The target hardware version lists the minimum hardware revision required to ensure compatibility with the new software and microcode images. When you load and boot from a new bundled image, the system checks the hardware version of each processor module that it finds installed and compares the actual version to its target list.
If the target hardware version is different from the actual hardware version, a warning message appears when you boot the router, indicating that there is a disparity between the target hardware and the actual hardware. You will still be able to load the new image; however, contact a customer service representative for information about upgrades and future compatibility requirements.
To display the current microcode version for each interface processor, enter the show controller cybus command. The following example shows an FSIP running Microcode Version 10.0:
Router# show cont cybus (display text omitted) FSIP 0, hardware version 4, microcode version 10.0 (display text omitted)
Although most microcode upgrades are distributed on floppy disk, some exceptions may require microcode EPROM replacement. If so, refer to the section "Microcode Component Replacement" in the chapter "Maintaining the Router" for EPROM replacement procedures. (Instructions are also provided with the upgrade kit.) For complete command descriptions and instructions, refer to the related software documentation.
One 700W, AC-input or DC-input power supply is standard in the router. A second, identical power supply can be installed to provide redundant power. Dual power supplies are load sharing; when two power supplies are installed and both are operational (both are turned on), each concurrently provides about half of the required power to the system. If one of the power supplies fails, the second power supply ramps up to full power to maintain uninterrupted system operation. Dual power supplies should be connected to separate input lines so that, in case of a line failure, the second source will most likely still be available. Load sharing and redundancy are automatically enabled when the second power supply is installed; no software configuration is required.
The environmental monitoring and reporting functions, controlled by the chassis interface board, enable you to maintain normal system operation by identifying and resolving adverse conditions prior to loss of operation. The environmental monitoring functions constantly monitor the internal chassis air temperature and DC supply voltages. Each power supply monitors its own voltage and temperature and shuts itself down if it detects a critical condition within the power supply. If conditions reach shutdown thresholds, the system shuts down to avoid equipment damage from excessive heat. The reporting functions periodically log the values of measured parameters so that you can retrieve them for analysis later, and the reporting functions display warnings on the console if any of the monitored parameters exceed defined thresholds.
In addition to monitoring internal temperature and voltage levels, the system also monitors the blower. If the blower fails, the system displays a warning message on the console. If the blower is still not operating properly after two minutes, the system shuts down to protect the internal components against damage from excessive heat.
Three sensors on the RSP2 monitor the temperature of the cooling air that flows through the processor slots: inlet, hotpoint, and exhaust. The sensors are located at the bottom, center, and top of the RSP2, when facing the interface processor end of the chassis and viewing the RSP2 as it is installed.
The power supply uses the Normal, Critical, and Warning levels to monitor DC voltages. Table 1-4 lists temperature thresholds for the three processor-monitored levels. Table 1-5 lists the DC power thresholds for the Normal and Critical (power supply-monitored) levels.
Table 1-4 Typical Processor-Monitored Temperature Thresholds
| Parameter | Normal | High Warning | High Critical | Shutdown |
|---|---|---|---|---|
| Inlet | 10--40°C | 44°C | 50°C | -- |
| Hotpoint | 10--40°C | 54°C | 60°C | -- |
| Exhaust | 10--40°C | -- | -- | -- |
| Processors | -- | -- | -- | 70°C |
| Power supply | -- | -- | -- | 75°C |
| Restart | 40°C | -- | -- | -- |
Table 1-5 Typical Power Supply-Monitored DC-Voltage Thresholds
| Parameter | Normal | Low Critical | Low Warning | High Warning | High Critical |
|---|---|---|---|---|---|
| +5V | 4.74 to 5.26 | 4.61 | 4.94 | 5.46 | 5.70 |
| +12V | 10.20 to 13.8 | 10.90 | 11.61 | 12.82 | 13.38 |
| --12V | --10.20 to --13.80 | --10.15 | --10.76 | --13.25 | --13.86 |
| +24V | 20.00 to 28.00 | 20.38 | 21.51 | 26.42 | 27.65 |
If the air temperature exceeds a defined threshold, the system processor displays warning messages on the console terminal and, if the temperature exceeds the shutdown threshold, it shuts down the system. The system stores the present parameter measurements for both temperature and DC voltage in NVRAM, so that you can retrieve it later as a report of the last shutdown parameters.
The power supplies monitor internal power supply temperature and voltages. A power supply is either within tolerance (Normal) or out of tolerance (Critical or Warning levels), as shown in Table 1-5. If an internal power supply temperature or voltage reaches a critical level, the power supply shuts down without any interaction with the system processor.
If the system detects that AC or DC input power is dropping, but it is able to recover before the power supply shuts down, it logs the event as an intermittent power failure. The reporting functions display the cumulative number of intermittent power failures logged since the last power up.
The system displays warning messages on the console if chassis interface-monitored parameters exceed a desired threshold or if a blower failure occurs. You can also retrieve and display environmental status reports with the show environment, show environment all, show environment last and show environment table commands. Parameters are measured and reporting functions are updated every 60 seconds. A brief description of each of these commands follows.
The show environment command display reports the current environmental status of the system. The report displays parameters that are out of the normal values. No parameters are displayed if the system status is normal. The example that follows shows the display for a system in which all monitored parameters are within Normal range. Following is sample output of the show env command:
Router# show env All measured values are normal
If the environmental status is not normal, the system reports the worst-case status level in the last line of the display.
The show environment last command retrieves and displays the NVRAM log showing the reason for the last shutdown (if the shutdown was related to voltage or temperature) and the environmental status at that time. Air temperature is measured and displayed, and the DC voltages supplied by the power supply are also displayed. Following is sample output of the show env last command:
Router# show env last RSP(2) Inlet previously measured at 27C/80F RSP(2) Hotpoint previously measured at 38C/100F RSP(2) Exhaust previously measured at 31C/87F +12 Voltage previously measured at 12.17 +5 Voltage previously measured at 5.19 -12 Voltage previously measured at -12.17 +24 Voltage previously measured at 23.40
The show environment table command displays the temperature and voltage thresholds for each of the three RSP2 temperature sensors, for each monitored status level: low critical, low warning, high warning, and high critical, which are the same as those listed in Tables 1-4 and 1-5. The slots in which the RSP2 can be installed are indicated in parentheses (2 and 3). Also listed are the shutdown thresholds for the processor boards and power supplies. Following is sample output of the show env table command:
Router# show env table Sample Point LowCritical LowWarning HighWarning HighCritical RSP(2) Inlet 44C/111F 50C/122F RSP(2) Hotpoint 54C/129F 60C/140F RSP(2) Exhaust 101C/213F 101C/213C RSP(3) Inlet 44C/111F 50C/122F RSP(3) Hotpoint 54C/129F 60C/140F RSP(3) Exhaust 101C/213F 101C/213F +12 Voltage 10.90 11.61 12.82 13.38 +5 Voltage 4.49 4.74 5.25 5.52 -12 Voltage -10.15 -10.76 -13.25 -13.86 +24 Voltage 19.06 21.51 26.51 28.87 Shutdown boards at 101C/213F Shutdown power supplies at 101C/213F
The show environment all command displays an extended report that includes the arbiter type, backplane type, power supply type (AC or DC), wattage and status, the number and type of intermittent power failures (if any) since the system was last powered on, and the currently measured values at the RSP2 temperature sensors and the power supply voltages. The show environment all command also displays a report showing which slots in the Cisco 7507 are occupied (indicated by an X) and which are empty.
Active fault conditions are indicated when the blower or power supply has failed or is not present (as "Blower #3" indicates in the following example). The system expects to see one blower in the Cisco 7507, the main system blower. The system blower is designated #1. The active fault condition in the following example shows that there is no power supply installed in power bay B because the display indicates that power supply #2 (in the upper bay) is removed.
There are four active trip points: restart OK, temperature warning, board shutdown, and power supply shutdown. (There are no active trip points shown in the following example.) The soft shutdowns refer to the number of times the system will reset itself before it executes a complete chassis (or hard) shutdown.
The current temperature measurements at the three RSP2 sensors are displayed as inlet, hotpoint, and exhaust. The shutdown temperature source is the hotpoint sensor, which is located toward the center of the RSP2. System voltage measurements are also displayed, followed by the system current measurements and power supply wattage calculation. Following is sample output of the show env all command:
Router# show env all
Arbiter type 1, backplane type 7507 (id 4)
Power supply #1 is removed (id 3), power supply #2 is 700W (id 2)
Active fault conditions: none
Active trip points: Restart_Inhibit
15 of 15 soft shutdowns remaining before hard shutdown
0123456
Dbus slots: XX XXX
inlet hotpoint exhaust
RSP(3) 16C/60F 24C/71F 20C/68F
Shutdown temperature source is 'hotpoint' slot3 (requested slot2)
+12V measured at 11.84
+5V measured at 5.05
-12V measured at -11.84
+24V measured at 23.78
+2.5 reference is 2.46
PS1 +5V Current measured at 42.35 A (capacity 200 A)
PS1 +12V Current measured at 6.86 A (capacity 35 A)
PS1 -12V Current measured at 0.55 A (capacity 3 A)
PS1 output is 296 W
|
Copyright 1988-1995 © Cisco Systems Inc.
