This chapter provides maintenance procedures for the Cisco 7507 router and its spare parts. Your router is configured to your order and ready for installation and startup when it leaves the factory. As your communication requirements change, you may want to upgrade your system, add components, or change the initial configuration. This chapter describes the procedures for installing, replacing, and reconfiguring interface processors, and for adding and replacing internal system components such as the system blower, arbiter board, and front panel components. Software and microcode component upgrades require specific part numbers and other frequently updated information; therefore, only basic replacement guidelines are included in this publication. Detailed, up-to-date instructions (called configuration notes) are shipped with the replacement parts and upgrade kits.
The replaceable system components fall into two categories: those that support online insertion and removal (OIR) and those that require you to shut down the system power before replacement. Redundant power supplies, interface processors, and the air filter support OIR and can be replaced while the system is operating.

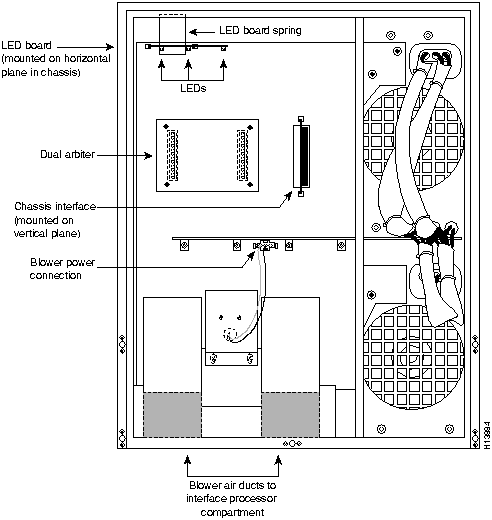

You must turn off all power supplies before replacing the LED board or system blower. Access to them also requires that you remove the front panels to access the chassis interior, which exposes the power supply wiring and backplane.
Warning This unit might have more than one power cord. To reduce the risk of electric shock, disconnect the two power supply cords before servicing the unit.
This chapter contains information on the following:
This section describes the following maintenance aspects of the RSP2:
It might become necessary for you to replace or install a Flash memory card in your RSP2. The RSP2 has two PCMCIA slots: Slot 0 (left) and Slot 1 (right). (See Figure 5-1 on the following page.) The following procedure is generic and can be used for a Flash memory card in either slot position.
Following is the procedure for installing and removing a Flash memory card:
Figure 5-1 Installing and Removing a Flash Memory Card
This section describes the software (virtual) configuration register that is used with the RSP2.
Following is the information included in this section:
Settings for the 16-bit software configuration register are written into the NVRAM. Following are some reasons for changing the software configuration register settings:
Table 5-1 lists the meaning of each of the software configuration memory bits, and Table 5-2 defines the boot field.
Table 5-1 Software Configuration Register Bit Meanings
| Bit Number(1) | Hexadecimal | Meaning |
|---|---|---|
| 00 to 03 | 0x0000 to 0x000F | Boot field (see Table 5-2) |
| 06 | 0x0040 | Causes system software to ignore NVRAM contents |
| 07 | 0x0080 | OEM bit enabled(2) |
| 08 | 0x0100 | Break disabled |
| 09 | 0x0200 | Use secondary bootstrap |
| 10 | 0x0400 | Internet Protocol (IP) broadcast with all zeros |
| 11 to 12 | 0x0800 to 0x1000 | Console line speed (default is 9600 baud) |
| 13 | 0x2000 | Boot default Flash software if network boot fails |
| 14 | 0x4000 | IP broadcasts do not have network numbers |
| 15 | 0x8000 | Enable diagnostic messages and ignore NVRAM contents |
Table 5-2 Explanation of Boot Field (Software Configuration Register Bits 00 to 03)
| Boot Field | Meaning |
|---|---|
| 00 | Stays at the system bootstrap prompt |
| 01 | Boots the first system image in onboard Flash memory |
| 02 to 0F | Specifies a default netboot filename Enables boot system commands that override the default netboot filename |
To change the configuration register while running the system software, follow these steps:
Router> enable Password: Router#
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)#
Router(config)# config-register 0xvalue
Configuration register is 0x141 (will be 0x101 at next reload)
The lowest four bits of the software configuration register (bits 3, 2, 1, and 0) form the boot field. (See Table 5-2.) The boot field specifies a number in binary form. If you set the boot field value to 0, you must boot the operating system manually by entering the b command at the bootstrap prompt as follows:
rommon1> b [tftp] flash filename
Definitions of the various b command options follow:
For more information about the b [tftp] flash filename command, refer to the set of router products configuration publications.
If you set the boot field value to 0x2 through 0xF, and there is a valid system boot command stored in the configuration file, then the router boots the system software as directed by that value. If you set the boot field to any other bit pattern, the router uses the resulting number to form a default boot filename for netbooting. (See Table 5-3.)
In the following example, the software configuration register is set to boot the router from onboard Flash memory and to ignore Break at the next reboot of the router:
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)# config-register 0x102 Router(config)# boot system flash [filename] Router(config)# ^z Router#
The server creates a default boot filename as part of the automatic configuration processes. To form the boot filename, the server starts with the name cisco and adds the octal equivalent of the boot field number, a hyphen, and the processor-type name. Table 5-3 lists the default boot filenames or actions for the processor.
Table 5-3 Default Boot Filenames
| Action/File Name | Bit 3 | Bit 2 | Bit 1 | Bit 0 |
|---|---|---|---|---|
| Bootstrap mode | 0 | 0 | 0 | 0 |
| Default software | 0 | 0 | 0 | 1 |
| cisco2-RSP2 | 0 | 0 | 1 | 0 |
| cisco3-RSP2 | 0 | 0 | 1 | 1 |
| cisco4-RSP2 | 0 | 1 | 0 | 0 |
| cisco5-RSP2 | 0 | 1 | 0 | 1 |
| cisco6-RSP2 | 0 | 1 | 1 | 0 |
| cisco7-RSP2 | 0 | 1 | 1 | 1 |
| cisco10-RSP2 | 1 | 0 | 0 | 0 |
| cisco11-RSP2 | 1 | 0 | 0 | 1 |
| cisco12-RSP2 | 1 | 0 | 1 | 0 |
| cisco13-RSP2 | 1 | 0 | 1 | 1 |
| cisco14-RSP2 | 1 | 1 | 0 | 0 |
| cisco15-RSP2 | 1 | 1 | 0 | 1 |
| cisco16-RSP2 | 1 | 1 | 1 | 0 |
| cisco17-RSP2 | 1 | 1 | 1 | 1 |
Bit 8 controls the console Break key. Setting bit 8 (the factory default) causes the processor to ignore the console Break key. Clearing bit 8 causes the processor to interpret the Break key as a command to force the system into the bootstrap monitor, thereby halting normal operation. A break can be sent in the first 60 seconds while the system reboots, regardless of the configuration settings.
Bit 9 controls the secondary bootstrap program function. Setting bit 9 causes the system to use the secondary bootstrap; clearing bit 9 causes the system to ignore the secondary bootstrap. The secondary bootstrap program is used for system debugging and diagnostics.
Bit 10 controls the host portion of the IP broadcast address. Setting bit 10 causes the processor to use all zeros; clearing bit 10 (the factory default) causes the processor to use all ones. Bit 10 interacts with bit 14, which controls the network and subnet portions of the broadcast address. Table 5-4 shows the combined effect of bits 10 and 14.
Table 5-4 Configuration Register Settings for Broadcast Address Destination
| Bit 14 | Bit 10 | Address (<net> <host>) |
|---|---|---|
| Off | Off | <ones> <ones> |
| Off | On | <zeros> <zeros> |
| On | On | <net> <zeros> |
| On | Off | <net> <ones> |
Bits 11 and 12 in the configuration register determine the baud rate of the console terminal.
Table 5-5 shows the bit settings for the four available baud rates. (The factory-set default baud rate is 9600.)
Table 5-5 System Console Terminal Baud Rate Settings
| Baud | Bit 12 | Bit 11 |
|---|---|---|
| 9600 | 0 | 0 |
| 4800 | 0 | 1 |
| 1200 | 1 | 0 |
| 2400 | 1 | 1 |
Bit 13 determines the server response to a bootload failure. Setting bit 13 causes the server to load operating software from Flash memory after five unsuccessful attempts to load a boot file from the network. Clearing bit 13 causes the server to continue attempting to load a boot file from the network indefinitely. By factory default, bit 13 is cleared to 0.
To enable booting from Flash memory, set configuration register bits 3, 2, 1, and 0 to a value between 2 and 15 in conjunction with the boot system flash [filename] configuration command.
To enter configuration mode while in the system software image and specify a Flash filename from which to boot, enter the configure terminal command at the enable prompt, as follows:
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)# boot system flash [device:filename]
To disable Break and enable the boot system flash command, enter the config-register command with the value shown in the following example:
Router(config)# config-reg 0x2102 Router(config)# ^Z Router#
Copying a new image to Flash memory might be required whenever a new image or maintenance release becomes available.
Use the command copy tftp:filename [ bootflash | slot0 | slot1 ]:filename for the copy procedure, where tftp:filename is the source of the file and [ bootflash | slot0 | slot1 ]:filename is the destination in onboard Flash memory or on either of the Flash memory cards.
An example of the copy tftp:filename command follows:
Router# copy tftp:myfile1 slot0:myfile1 20575008 bytes available on device slot0, proceed? [confirm] Address or name of remote host [1.1.1.1]? Loading new.image from 1.1.1.1 (via Ethernet1/0): !!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!![OK - 7799951/15599616 bytes] CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC Router#
Following are additional commands related to the Flash memory on the RSP2 and on PCMCIA cards. (The following example assumes you are currently in PCMCIA slot 0.) You can determine which PCMCIA slot you are accessing using the pwd command as follows:
Router# pwd slot0
You can move between Flash memory media using the cd [ bootflash | slot0 | slot1 ] command as follows:
Router# cd slot0 slot0 Router# cd slot1 Router# pwd slot1
You can list the directory of any Flash memory media using the dir [ bootflash | slot0 | slot1 ] command as follows:
Router# dir -#- -length- -----date/time------ name 1 4601977 May 19 1994 09:42:19 myfile1 6 679 May 19 1994 05:43:56 todays--config 7 1 May 19 1994 09:54:53 fun1
You can delete a file from any Flash memory media using the delete command as follows:
Router# delete slot0:fun1 Router# dir -#- -length- -----date/time------ name 1 4601977 May 19 1994 09:42:19 myfile1 6 679 May 19 1994 05:43:56 todays--config
Files that are deleted are simply marked as deleted, but still occupy space in Flash memory. The squeeze command removes them permanently, and pushes all other undeleted files together to eliminate spaces between them.
Following is the syntax of the squeeze command:
Router# squeeze slot0: All deleted files will be removed, proceed? [confirm] Squeeze operation may take a while, proceed? [confirm] ebESZ
To prevent loss of data due to sudden power loss, the "squeezed" data is temporarily saved to another location of Flash memory, which is specially used by the system.
In the previous command display output, the character "e" means this special location has been erased (which must be performed before any write operation). The character "b" means that the data that is about to be written to this special location has been temporarily copied. The character "E" signifies that the sector which was temporarily occupied by the data has been erased. The character "S" signifies that the data was written to its permanent location in Flash memory.
The squeeze command operation keeps a log of which of these functions has been performed so that on sudden power failure, it can come back to the right place and continue with the process. The character "Z" means this log was erased after the successful squeeze command operation.
The configuration register setting 0x2101 tells the system to boot the default image (the first image) from onboard Flash memory, but does not reset the Break disable or checking for a default netboot filename. The configuration register setting 0x2102 tells the system to boot from Flash memory if netboot fails, to disable Break, and to check for a default netboot filename. For more information on the copy tftp:filename [ flash | slot0 | slot1 ]:filename command, and other related commands, refer to the set of router products configuration and command reference publications.
An overview of recovering a lost password follows:
To recover a lost password, follow these procedures.
rommon 1 >
rommon 1 > confreg Configuration Summary enabled are: console baud: 9600 boot: image specified by the boot system command or default to : cisco2-RSP do you wish to change the configuration? y/n [n]: y enable "diagnostic mode"? y/n [n]: enable "use net in IP bcast address"? y/n [n]: enable "load rom after netbootfails"? y/n [n]: enable "use all zero broadcast"? y/n [n]: enable "break/abort has effect?" y/n [n]: enable "ignore system config info?" [n]: y change console baud rate? y/n [n]: change boot characteristics? y/n [n] Configuration Summary enabled are: console baud: 9600 boot: image specified by the boot system command or default to : cisco2-RSP do you wish to change the configuration? y/n [n] You must reset or power cycle for the new config to take effect
rommon 1 > i
--- System Configuration Dialog ---
Press RETURN to get started!
Router >
Router #
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)#
The system DRAM resides on up to four single in-line memory modules (SIMMs) on the RSP2. The default DRAM configuration is 16 MB. This section provides the steps for increasing the amount of DRAM by replacing the SIMMs with SIMMs that you obtain from an approved vendor.
Although the SIMM specifications are defined in the manufacturers' part numbers, the SIMMs must meet the following requirements:
You need the following parts and tools to replace SIMMs. If you need additional equipment, contact a customer service representative for ordering information.
The DRAM SIMM sockets are U33 and U21 for Bank 0, and U12 and U4 for Bank 1. The default DRAM configuration is 16 MB (two 8-MB SIMMs in Bank 0). (See Figure 5-2.)
Before proceeding, ensure that you have met the following prerequisites:
To upgrade DRAM, you install SIMMs in one or both DRAM SIMM banks. Table 5-6 lists the various configurations of DRAM SIMMs that are available to you. This information is also available on CCO. Note which banks are used given the combinations of available SIMM sizes and the maximum DRAM you require. The onboard, default Flash memory is 8 MB.
Table 5-6 DRAM SIMM Configurations
| DRAM Bank 0 | Quantity | DRAM Bank 1 | Quantity | Total | Product Names |
| U33 and U21 | 2, 8-MB SIMMs | U12 and U4 | -- | 16 MB | MEM-RSP2-16M= |
| U33 and U21 | 2, 16-MB SIMMs | U12 and U4 | -- | 32 MB | MEM-RSP2-32M= |
| U33 and U21 | 2, 32-MB SIMMs | U12 and U4 | -- | 64 MB | MEM-RSP2-64M= |
| U33 and U21 | 2, 32-MB SIMMs | U12 and U4 | 2, 32-MB SIMMs | 128 MB | MEM-RSP2-128M= |
Place removed SIMMs on an antistatic mat and store them in an antistatic bag. You can use the SIMMs that you remove in compatible equipment. To prevent ESD damage, handle SIMMs by the card edges only.
Follow these steps to remove the existing SIMMs:
Figure 5-3 Releasing the SIMM Spring Clips
This completes the SIMM removal procedure. Proceed to the next section to install the new SIMMs.
SIMMs are sensitive components that are susceptible to ESD damage. Handle SIMMs by the edges only; avoid touching the memory modules, pins, or traces (the metal fingers along the connector edge of the SIMM).(See Figure 5-4.)
Follow these steps to install the new SIMMs:
This completes the SIMM replacement procedure.
To replace the RSP2 in the chassis, proceed to the section "Installing and Configuring Interface Processors" in this chapter and then restart the system for an installation check.
If the system fails to boot properly, or if the console terminal displays a checksum or memory error, check the following:
If after several attempts the system fails to restart properly, contact a service representative for assistance. Before you call, make note of any error messages, unusual LED states, or any other indications that might help solve the problem.
The RSP2 supports high system availability (HSA), which is a new feature in Cisco Internetwotk Operating System (Cisco IOS) Release 11.1(2) or later (or a Cisco-approved beta version of Release 11.1[2]), which allows two RSP2s to be used simultaneously in a Cisco 7507 router.
One RSP2 operates as system master and the other RSP2 operates as the system slave, which takes over if the master RSP2 fails. Figure 5-5 shows a Cisco 7507 with two RSP2s installed.
Figure 5-5 Cisco 7507 with Two RSP2s
The HSA feature requires that the boot read-only memory (ROM) device be updated to Version 11.1(2) or later. New RSP2s are shipping with this new boot ROM version; however, to check the boot ROM (System Bootstrap) version currently running on your RSP2, use the show version command and check the boot ROM's version number as follows:
Router# sh version (display text omitted) System Bootstrap, Version 11.1(2)
For systems with two RSP2s installed (one as master and one as slave in RSP slots 6 and 7, using the HSA feature), you can simultaneously connect to both console or auxiliary ports using a special Y-cable. RSP2 defaults as the system masters if only one is installed. Figure 5-6 shows the console Y-cable and Figure 5-7 shows the auxiliary Y-cable.

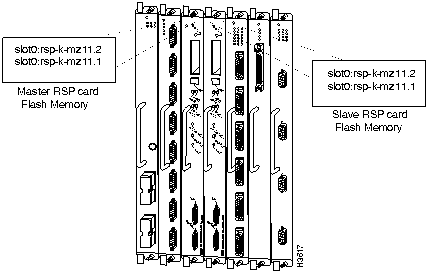

High system availability (HSA) (available with Cisco IOS Release 11.1[2] or later) refers to how quickly your router returns to an operational status after a failure occurs. You can install two RSP2 cards in a single router to improve system availability. For more complete HSA configuration information, refer to the Configuration Fundamentals Configuration Guide and the Configuration Fundamentals Command Reference publications, which are available on Cisco Connection Documentation CD-ROM or as printed copies.
Two RSP2 cards in a router provide the most basic level of increased system availability through a "cold restart" feature. A "cold restart" means that when one RSP2 card fails, the other RSP2 card reboots the router. In this way, your router is never in a failed state for very long, thereby increasing system availability.
When one RSP2 card takes over operation from another, system operation is interrupted. Such a change is similar to issuing the reload command. The following events occur when one RSP2 card fails and the other takes over:
A router configured for HSA operation has one RSP2 card that is the master and one that is the slave. The master RSP2 card functions as if it were a single processor, controlling all functions of the router. The slave RSP2 card does nothing but actively monitor the master for failure. A system crash can cause the master RSP2 to fail or go into a nonfunctional state. When the slave RSP2 detects a nonfunctional master, the slave resets itself and takes part in master-slave arbitration. Master-slave arbitration is a ROM monitor process that determines which RSP2 card is the master and which is the slave upon startup (or reboot).
If a system crash causes the master RSP2 to fail, the slave RSP2 becomes the new master RSP2 and uses its own system image and configuration file to reboot the router. The failed RSP2 card (now the slave) remains inactive until you perform diagnostics, correct the problem, and then issue the slave reload command.
With HSA operation, the following items are important to note:
There are two common ways to use HSA as follows:
You can also use HSA for advanced implementations. For example, you can configure the RSP2 cards with the following:
To configure HSA operation, you must have a Cisco 7507 containing two RSP2 processor cards and Cisco IOS Release 11.1(2) or later (or a Cisco-approved beta version of Release 11.1[2]). The slave RSP2 should have the same DRAM configuration as the master RSP2
When configuring HSA operation, complete the tasks in the following sections. The first is required. Depending on the outcome of the first, the second or third is also required. The fourth is optional.
Before you can configure HSA operation, you must first decide how you want to use HSA in your internetwork. Do you want to use HSA for simple hardware backup or for software error protection? If you are using new or experimental Cisco IOS software, consider using the software error protection method; otherwise, use the simple hardware backup method.
Once you have decided which method to use, proceed to either the ""Configuring HSA for Simple Hardware Backup"" section or the ""Configuring HSA for Software Error Protection"" section.
With the simple hardware backup method, you configure both RSP2 cards with the same software image and configuration information. To configure HSA for simple hardware backup, perform the tasks in the following sections. The first is optional.
Because your view of the environment is always from the master RSP2's perspective, you define a default slave RSP2. The router uses the default slave information when booting:
To define the default slave RSP2, perform the following task, beginning in global configuration mode:
| Tasks | Command |
| |
configure terminal |
| |
slave default-slot processor-slot-number |
| |
Ctrl-Z |
| |
copy running-config startup-config |
Upon the next system reboot, the above changes take effect (if both RSP2 cards are operational). Thus, the specified default slave becomes the slave RSP2 card. The other RSP2 card takes over mastership of the system and controls all functions of the router.
If you do not specifically define the default slave RSP2, the RSP2 card located in the higher number processor slot is the default slave. On the Cisco 7507, processor slot 3 contains the default slave RSP2.
The following example sets the default slave RSP2 to processor slot 3 on a Cisco 7507:
Router# configure terminal Router (config)# slave default-slot 3 Ctrl-Z Router# copy running-config startup-config

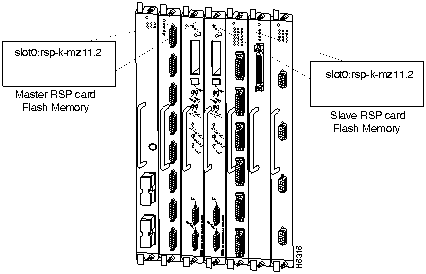

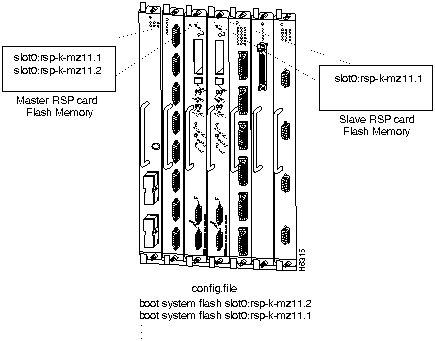

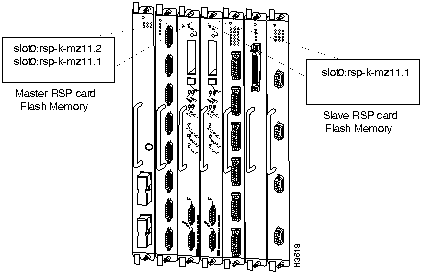

To ensure that both RSP2 cards have the same system image, perform the following tasks in EXEC mode:
| Tasks | Command |
| |
show boot |
| |
dir [/all | /deleted] [/long] {bootflash | slot0 | slot1} [filename] |
| |
dir [/all | /deleted] [/long] {slavebootflash | slaveslot0 | slaveslot1} [filename] |
| |
copy file_id {slavebootflash | slaveslot0 | slaveslot1} Note that you might also have to use the delete and/or squeeze command in conjunction with the copy command to accomplish this step. |
The following example ensures that both RSP2 cards have the same system image. Note that because no environment variables are set, the default environment variables are in effect for both the master and slave RSP2.
Router# show boot BOOT variable = CONFIG_FILE variable = Current CONFIG_FILE variable = BOOTLDR variable does not exist Configuration register is 0x0 Slave auto-sync config mode is on current slave is in slot 7 BOOT variable = CONFIG_FILE variable = BOOTLDR variable does not exist Configuration register is 0x0 Router# dir slot0: -#- -length- -----date/time------ name 1 3482498 May 4 1993 21:38:04 rsp-k-mz11.2 7993896 bytes available (1496 bytes used) Router# dir slaveslot0: -#- -length- -----date/time------ name 1 3482498 May 4 1993 21:38:04 rsp-k-mz11.1 7993896 bytes available (1496 bytes used) Router# delete slaveslot0:rsp-k-mz11.1 Router# copy slot0:rsp-k-mz11.2 slaveslot0:rsp-k-mz11.2
To ensure that both RSP2 cards have the same microcode images, perform the following tasks beginning in privileged EXEC mode:
| Tasks | Command |
| |
show controller cbus |
| |
dir [/all | /deleted] [/long] {bootflash | slot0 | slot1} [filename] |
| |
dir [/all | /deleted] [/long] {slavebootflash | slaveslot0 | slaveslot1} [filename] |
| |
copy file_id {slavebootflash | slaveslot0 | slaveslot1} Note that you might also have to use the delete and/or squeeze command in conjunction with the copy command to accomplish this step. |
The following example ensures that both RSP2 cards have the same microcode image. Notice that slots 0, 1, 4, 9, and 10 load microcode from the bundled software, as noted by the statement software loaded from system. Slot 11, the FSIP processor, does not use the microcode bundled with the system. Instead, it loads the microcode from slot0:pond/bath/rsp_fsip20-1
.
Thus, you must ensure that the slave RSP2 has a copy of the same FSIP microcode in the same location.
Router# show controller cbus
MEMD at 40000000, 2097152 bytes (unused 416, recarves 3, lost 0)
RawQ 48000100, ReturnQ 48000108, EventQ 48000110
BufhdrQ 48000128 (2948 items), LovltrQ 48000140 (5 items, 1632 bytes)
IpcbufQ 48000148 (16 items, 4096 bytes)
3571 buffer headers (48002000 - 4800FF20)
pool0: 28 buffers, 256 bytes, queue 48000130
pool1: 237 buffers, 1536 bytes, queue 48000138
pool2: 333 buffers, 4544 bytes, queue 48000150
pool3: 4 buffers, 4576 bytes, queue 48000158
slot0: EIP, hw 1.5, sw 20.00, ccb 5800FF30, cmdq 48000080, vps 4096
software loaded from system
Ethernet0/0, addr 0000.0ca3.cc00 (bia 0000.0ca3.cc00)
gfreeq 48000138, lfreeq 48000160 (1536 bytes), throttled 0
rxlo 4, rxhi 42, rxcurr 0, maxrxcurr 2
txq 48000168, txacc 48000082 (value 27), txlimit 27
.........
slot1: FIP, hw 2.9, sw 20.02, ccb 5800FF40, cmdq 48000088, vps 4096
software loaded from system
Fddi1/0, addr 0000.0ca3.cc20 (bia 0000.0ca3.cc20)
gfreeq 48000150, lfreeq 480001C0 (4544 bytes), throttled 0
rxlo 4, rxhi 165, rxcurr 0, maxrxcurr 0
txq 480001C8, txacc 480000B2 (value 0), txlimit 95
slot4: AIP, hw 1.3, sw 20.02, ccb 5800FF70, cmdq 480000A0, vps 8192
software loaded from system
ATM4/0, applique is SONET (155Mbps)
gfreeq 48000150, lfreeq 480001D0 (4544 bytes), throttled 0
rxlo 4, rxhi 165, rxcurr 0, maxrxcurr 0
txq 480001D8, txacc 480000BA (value 0), txlimit 95
slot9: MIP, hw 1.0, sw 20.02, ccb 5800FFC0, cmdq 480000C8, vps 8192
software loaded from system
T1 9/0, applique is Channelized T1
gfreeq 48000138, lfreeq 480001E0 (1536 bytes), throttled 0
rxlo 4, rxhi 42, rxcurr 0, maxrxcurr 0
txq 480001E8, txacc 480000C2 (value 27), txlimit 27
.......
slot10: TRIP, hw 1.1, sw 20.00, ccb 5800FFD0, cmdq 480000D0, vps 4096
software loaded from system
TokenRing10/0, addr 0000.0ca3.cd40 (bia 0000.0ca3.cd40)
gfreeq 48000150, lfreeq 48000200 (4544 bytes), throttled 0
rxlo 4, rxhi 165, rxcurr 1, maxrxcurr 1
txq 48000208, txacc 480000D2 (value 95), txlimit 95
.........
slot11: FSIP, hw 1.1, sw 20.01, ccb 5800FFE0, cmdq 480000D8, vps 8192
software loaded from flash slot0:pond/bath/rsp_fsip20-1
Serial11/0, applique is Universal (cable unattached)
gfreeq 48000138, lfreeq 48000240 (1536 bytes), throttled 0
rxlo 4, rxhi 42, rxcurr 0, maxrxcurr 0
txq 48000248, txacc 480000F2 (value 5), txlimit 27
...........
Router# dir slot0:pond/bath/rsp_fsip20-1
-#- -length- -----date/time------ name
3 10242 Jan 01 1995 03:46:31 pond/bath/rsp_fsip20-1
Router# dir slaveslot0:pond/bath/rsp_fsip20-1
No such file
4079832 bytes available (3915560 bytes used)
Router# copy slot0:pond/bath/rsp_fsip20-1 slaveslot0:
4079704 bytes available on device slaveslot0, proceed? [confirm]
Router# dir slaveslot0:pond/bath/rsp_fsip20-1
-#- -length- -----date/time------ name
3 10242 Mar 01 1993 02:35:04 pond/bath/rsp_fsip20-1
4069460 bytes available (3925932 bytes used)
Router#
With the simple hardware backup and software error protection implementation methods, you always want your master and slave configuration files to match. To ensure that they match, turn on automatic synchronization. In automatic synchronization mode, the master copies its startup configuration to the slave's startup configuration when you issue a copy command that specifies the master's startup configuration (startup-config) as the target.
Automatic synchronization mode is on by default; however, to turn it on manually, perform the following tasks, beginning in global configuration mode:
| Tasks | Command |
| |
configure terminal |
| |
slave auto-sync config |
| |
Ctrl-Z |
| |
copy running-config startup-config |
The following example turns on automatic configuration file synchronization:
Router# configure terminal Router (config)# slave auto-sync config Ctrl-Z Router# copy running-config startup-config
With the software error protection method, you configure the RSP2 cards with different software images, but with the same configuration information. To configure HSA for software error protection, perform the tasks in the following sections. The first is optional.
When the factory sends you a new Cisco 7507 with two RSP2s, you receive the same system image on both RSP2 cards. For the software error protection method, you need two different software images on the RSP2 cards. Thus, you copy a desired image to the master RSP2 card and modify the boot system commands to reflect booting two different system images. Each RSP2 card uses its own image to boot the router when it becomes the master.
To specify different startup images for the master and slave RSP2, perform the following tasks, beginning in EXEC mode:
| Tasks | Command |
| |
dir [/all | /deleted] [/long] {bootflash | slot0 | slot1} [filename] |
| |
dir [/all | /deleted] [/long] {slavebootflash | slaveslot0 | slaveslot1} [filename] |
| |
copy file_id {bootflash | slot0 | slot1} copy flash {bootflash | slot0 | slot1} copy rcp {bootflash | slot0 | slot1} copy tftp {bootflash | slot0 | slot1} |
| |
configure terminal |
| |
boot system flash bootflash:[filename]boot system flash slot0:[filename]boot system flash slot1:[filename] |
| |
boot system flash bootflash:[filename]boot system flash slot0:[filename]boot system flash slot1:[filename] |
| |
boot system
[rcp
| tftp]
filename [ip-address] |
| |
config-register value (1) |
| |
Ctrl-Z |
| |
copy running-config startup-config |
| |
reload |
In the following example scenario, assume the following:
Figure 5-8 illustrates the software error protection configuration for this example scenario. The configuration commands for this configuration follow the figure.
Figure 5-8 Software Error Protection: Upgrading to a New Software Version
Because you always view the environment from the master RSP2's perspective, in the following command you view the master's slot 0 to verify the location and version of the master's software image:
Router# dir slot0: -#- -length- -----date/time------ name 1 3482496 May 4 1993 21:38:04 rsp-k-mz11.1 7993896 bytes available (1496 bytes used)
Now view the slave's software image location and version:
Router# dir slaveslot0: -#- -length- -----date/time------ name 1 3482496 May 4 1993 21:38:04 rsp-k-mz11.1 7993896 bytes available (1496 bytes used)
Because you want to run the Release 11.2 system image on one RSP2 card and the Release 11.1 system image on the other RSP2 card, copy the Release 11.2 system image to the master's slot 0:
Router# copy tftp slot0:rsp-k-mz11.2
Enter global configuration mode and configure the system to boot first from a Release 11.2 system image and then from a Release 11.1 system image.
Router# configure terminal Router (config)# boot system flash slot0:rsp-k-mz11.1.2 Router (config)# boot system flash slot0:rsp-k-mz11.1
With this configuration, when the slot 6 RSP2 card is master, it looks first in its PCMCIA slot 0 for the system image file rsp-k-mz11.2 to boot. Finding this file, the router boots from that system image. When the slot 7 RSP2 card is master, it also looks first in its slot 0 for the system image file rsp-k-mz11.2 to boot. Because that image does not exist in that location, the slot 7 RSP2 card looks for the system image file rsp-k-mz11.1 in slot 0 to boot. Finding this file in its PCMCIA slot 0, the router boots from that system image. In this way, each RSP2 card can reboot the system using its own system image when it becomes the master RSP2 card.
Configure the system further with a fault-tolerant booting strategy:
Router (config)# boot system tftp rsp-k-mz11.1 192.37.1.25
Set the configuration register to enable loading of the system image from a network server or from Flash and save the changes to the master and slave startup configuration file:
Router (config)# config-register 0x010F Ctrl-Z Router# copy running-config startup-config
Reload the system so that the master RSP2 uses the new Release 11.2 system image:
Router# reload
In the following example scenario, assume the following:
In this scenario, you begin with the configuration shown in Figure 5-9.
Figure 5-9 Software Error Protection: Backing Up with an Older Software Version, Part I
Next, you copy the rsp-k-mz11.1 image to the master and slave RSP2 card, as shown in Figure 5-10.
Figure 5-10 Software Error Protection: Backing Up with an Older Software Version, Part II
Last, delete the rsp-k-mz11.2 image from the slave RSP2 card as shown in Figure 5-11.
Figure 5-11 Software Error Protection: Backing Up with an Older Software Version, Part III
The following commands configure software error protection for this example scenario.
View the master and slave slot 0 to verify the location and version of their software images:
Router# dir slot0: -#- -length- -----date/time------ name 1 3482498 May 4 1993 21:38:04 rsp-k-mz11.2 7993896 bytes available (1496 bytes used) Router# dir slaveslot0: -#- -length- -----date/time------ name 1 3482498 May 4 1993 21:38:04 rsp-k-mz11.2 7993896 bytes available (1496 bytes used)
Copy the Release 11.1 system image to the master and slave slot 0:
Router# copy tftp slot0:rsp-k-mz11.1 Router# copy tftp slaveslot0:rsp-k-mz11.1
Delete the rsp-k-mz11.2 image from the slave RSP2 card:
Router# delete slaveslot0:rsp-k-mz11.2
Configure the system to boot first from a Release 11.2 system image and then from a Release 11.1 system image.
Router# configure terminal Router (config)# boot system flash slot0:rsp-k-mz11.2 Router (config)# boot system flash slot0:rsp-k-mz11.1
Configure the system further with a fault-tolerant booting strategy:
Router(config)# boot system tftp rsp-k-mz11.1 192.37.1.25
Set the configuration register to enable loading of the system image from a network server or from Flash and save the changes to the master and slave startup configuration file:
Router(config)# config-register 0x010F Ctrl-Z Router# copy running-config startup-config
You can optionally set environment variables on both RSP2 cards in a Cisco 7507.
You set environment variables on the master RSP2 just as you would if it were the only RSP2 card in the system. You can set the same environment variables on the slave RSP2 card, manually or automatically.
The following sections describe these two methods:
For more complete configuration information on how to set environment variables, refer to the Configuration Fundamentals Configuration Guide and the Configuration Fundamentals Command Reference publications, which are available on Cisco Connection Documentation CD-ROM or as printed copies.
Once you set the master's environment variables, you can manually set the same environment variables on the slave RSP2 card using the slave sync config command.
To manually set environment variables on the slave RSP2, perform the following steps beginning in global configuration mode:
| Tasks | Command |
| |
boot system boot bootldr boot config |
| |
copy running-config startup-config |
| |
slave sync config |
| |
show boot |
With automatic synchronization turned on, the system automatically saves the same environment variables to the slave's startup configuration when you set the master's environment variables and save them.
To set environment variables on the slave RSP2 when automatic synchronization is on, perform the following steps beginning in global configuration mode:
| Tasks | Command |
| |
boot system boot bootldr boot config |
| |
copy running-config startup-config |
| |
show boot |
To monitor and maintain HSA operation, you can override the slave image that is bundled with the master image. To do so, perform the following task in global configuration mode:
| Tasks | Command |
| Specify which image the slave runs. | slave image {system | device:filename} |
You can manually synchronize configuration files and ROM monitor environment variables on the master and slave RSP2 card. To do so, perform the following task in privileged EXEC mode:
| Tasks | Command |
| Manually synchronize master and slave configuration files. | slave sync config |
The slave sync config command is also a useful tool for more advanced implementation methods not discussed in this document. Refer to the Configuration Fundamentals Configuration Guide and the Configuration Fundamentals Command Reference publications, which are available on Cisco Connection Documentation CD-ROM or as printed copies.
Following are the steps required to verify HSA operation:
System Bootstrap, Version 11.1(2), RELEASED SOFTWARE Copyright (c) 1986-1996 by cisco Systems, Inc. SLOT 2 RSP2 is system master SLOT 3 RSP2 is system slave RSP2 processor with 16384 Kbytes of main memory [additional displayed text omitted from this example] Cisco Internetwork Operating System Software IOS (tm) GS Software (RSP-K-M), Version 11.1(2) [biff 51096] Copyright (c) 1986-1996 by cisco Systems, Inc. Compiled Mon 22-Jan-96 21:15 by biff Image text-base: 0x600108A0, data-base: 0x607B8000 cisco RSP2 (R4600) processor with 16384K bytes of memory. R4600 processor, Implementation 32, Revision 2.0 [additional displayed text omitted from this example] 8192K bytes of Flash PCMCIA card at slot 0 (Sector size 128K). 8192K bytes of Flash internal SIMM (Sector size 256K). Slave in slot 3 is halted. [additional displayed text omitted from this example]
Router> show version Cisco Internetwork Operating System Software IOS (tm) GS Software (RSP-K-M), Version 11.1(2) [biff 51096] Copyright (c) 1986-1996 by cisco Systems, Inc. Compiled Mon 22-Jan-96 21:15 by biff Image text-base: 0x600108A0, data-base: 0x607B8000 [additional displayed text omitted from this example] Slave in slot 3 is running Cisco Internetwork Operating System Software (Note that this could also be "slot 6" depending on which RSP2 is configured as the slave or the recent crash history of your router.) IOS (tm) GS Software (RSP-DW-M), Version 11.1(2) [biff 51096] Copyright (c) 1986-1996 by cisco Systems, Inc. Compiled Mon 22-Jan-96 20:59 by biff Configuration register is 0xF Router>
When you have verified all the conditions in Steps 1 through 4, the installation is complete.
When a new master RSP2 takes over mastership of the router, it automatically reboots the failed RSP2 as the slave RSP2. You can access the state of the failed RSP2 in the form of a stack trace from the master console using the show stacks command.
You can also manually reload a failed RSP2 from the master console. To do so, perform the following task from global configuration mode:
| Tasks | Command |
| Reload the inactive slave RSP card. | slave reload |
You can also display information about both the master and slave RSP2s. To do so, perform any of the following tasks from EXEC mode:
| Tasks | Command |
| Display the environment variable settings and configuration register settings for both the master and slave RSP cards. | show boot |
| Show a list of flash devices currently supported on the router. | show flash devices |
| Display the software version running on the master and slave RSP card. | show version |
| Display the stack trace and version information of the master and slave RSP cards. | show stacks (1) |
All interface processors support online insertion and removal (OIR), which allows you to install, remove, replace, and rearrange the interface processors without turning off the system power. (This feature is not supported for the RSP2 because they are required for system operation.) When the system detects that an interface processor has been installed or removed, it automatically runs diagnostics and discovery routines, acknowledges the presence or absence of the interface processor, and resumes system operation without any operator intervention. This section provides installation and removal procedure for all interface processors.
This section also includes instructions for replacing spare parts on the chassis and interface processors, and for using basic configuration commands that you may need when setting up new interfaces.
An EPROM component on each interface processor contains a default microcode image. The router supports downloadable microcode, so it is unlikely that you will ever need to replace the microcode EPROM. However, the replacement procedures are included in this section in case replacement is necessary for some unforeseen reason.
On the FSIP, you can replace a port adapter if one fails, and with software commands you can change the rate or direction timing signals, change the default NRZ to NRZI format, or change the default 16-bit error correction cyclic redundancy check (CRC) to 32-bit on individual interfaces.
You will need a number 1 Phillips or 3/16-inch flat-blade screwdriver to remove any filler (blank) interface processors and to tighten the captive installation screws that secure the interface processor in its slot. (Most systems use Phillips screws, but early systems used slotted screws.) Whenever you handle interface processors, you should use a wrist strap or other grounding device to prevent ESD damage.
To remove an interface processor, follow these steps:
Figure 5-12 Ejector Levers and Captive Installation Screws
You can install interface processors in any of the five interface processor slots, numbered 0 and 1, and 4 through 6, from left to right when viewing the chassis from the rear. (See Figure 1-2.)
Slot 2 and 3 are for an RSP2, which is a required system component. Interface processor and RSP2 fillers, which are blank processor carriers, are installed in slots without interface processors or an RSP2 to maintain consistent air flow through the interface processor compartment.
Following are installation steps for the interface processors, which support OIR and can be removed and installed while the system is operating. The installation steps are the same for the RSP2.
Figure 5-13 Handling an Interface Processor During Installation
When you remove and replace interface processors, the system provides status messages across the console screen. The messages are for information only. In the following sample display, you can follow the events logged by the system as an EIP was removed from slot 3.The system reinitialized the remaining interface processors and marked the EIP that was removed from slot 3 as down. When the EIP was reinserted, the system marked the interfaces as up again.
Router# %OIR-6-REMCARD: Card removed from slot 3, interfaces disabled %LINK-5-CHANGED: Interface Ethernet3/1, changed state to administratively down %LINK-5-CHANGED: Interface Ethernet3/5, changed state to administratively down Router# %OIR-6-INSCARD: Card inserted in slot 3, interfaces administratively shut down %LINK-5-CHANGED: Interface Ethernet3/1, changed state to up %LINK-5-CHANGED: Interface Ethernet3/5, changed state to up
Each interface processor contains default microcode (firmware), which is an image of board-specific software instructions on a single EPROM on each board. Microcode operates with the system software and controls features and functions that are unique to an interface processor type. New features and enhancements to the system or interfaces are often implemented in microcode upgrades. Although each processor type contains the latest available microcode version (in an EPROM) when it leaves the factory, updated microcode images are periodically distributed with system software images to enable new features, improve performance, or fix bugs in earlier versions. The latest available microcode version for each interface processor type is bundled with each new system software maintenance upgrade; the bundled images are distributed as a single image on floppy disk.
Although most upgrades support the downloadable microcode feature and are distributed on floppy disk, some images may require EPROM replacement. If necessary, use the following instructions to replace an interface processor EPROM in case Flash memory is damaged or otherwise not available, or to change the default microcode on a board for any other reason. The replacement procedures are the same for each board with the exception of the FSIP, which uses a PLCC-type package for the microcode.
You must use a PLCC extractor to remove the FSIP microcode component. (See Figure 5-14.) You cannot use a small flat-blade screwdriver to pry it out of the socket as with the older type of integrated circuits (ICs). A PLCC IC does not have legs or pins that plug into the socket; instead, the contacts are on the sides of the IC and along the inner sides of the socket. When the IC is seated in the socket, the top of the IC is flush with the top of the socket. Forcing a small screwdriver or other tool between the IC and the sides of the socket to pry out the IC will damage the component or the socket, or both, and you will have to replace them.
Figure 5-14 Removing a PLCC-Type Microcode Component from a Socket
You need the following tools to replace the microcode component:
Refer to the illustrations of the individual interface processors in the section "Interface Processors" in the chapter "Product Overview" for socket locations.
Following are the steps for replacing the microcode on any interface processor.
When you restart the system, the system loads the ROM microcode for each interface processor unless you previously set up the system to load microcode from a Flash memory file. You can use the show controller command to display the current microcode version and, if necessary, instruct the system to reload the microcode from ROM without restarting the system.
The show controller [token, serial, fddi, or cybus] command displays the current microcode version on the first line of the display for each card type. The following example shows that the EIP in slot 4 is running EIP Microcode Version 10.0.
Router# show cont cybus EIP 4, hardware version 5.1, microcode version 10.0 Interface 32 - Ethernet4/0, station addr 0000.0c02.d0ec (bia 0000.0c02.d0cc)
If the display shows that the microcode is loading from a Flash file, you can instruct the system to load the new ROM microcode with the microcode card-type rom command. The command instructs all boards of the specified type to load the microcode stored in their onboard ROM.
Verify that the new microcode version is loaded with the following steps:
The replacement procedure is complete. If the enabled LED fails to go on after a second installation attempt, or if any of the interfaces fail to return to their previous state, refer to the troubleshooting procedures in the chapter "Troubleshooting the Installation."
Configuration of the AIP is a two-step process: you configure the AIP, then you configure the ATM switch. To configure your ATM switch, refer to the appropriate user document. To configure ATM, complete the following tasks. The first two tasks are required, and then you must configure at least one permanent virtual circuit (PVC) or SVC. The VC options you configure must match in three places: on the router, on the ATM switch, and at the remote end of the PVC or SVC connection.
On power up, a new AIP is shut down. To enable the AIP, you must enter the no shutdown command in the configuration mode. (See the section "Using the Configure Command" which follows.) If you installed a new AIP or want to change the configuration of an existing interface, you must enter the configuration mode. When the AIP is enabled (taken out of shutdown) with no additional arguments, the default interface configuration file parameters are as listed in Table 5-7.
Table 5-7 AIP Configuration Default Values
| Parameter | Configuration Command | Default Value |
|---|---|---|
| MTU | mtu bytes | 4470 bytes |
| Exception queue buffers | atm exception-queue | 32 |
| ATM virtual path filter | atm vp-filter hexvalue | 0x7B (hexadecimal) |
| Receive buffers | atm rxbuff | 256 |
| Transmit buffers | atm txbuff | 256 |
| Maximum number of VCs | atm maxvc | 2048 |
| AAL encapsulation | atm aal aal5 | AAL5 |
| ATM raw cell queue size | atm rawq-size | 32 |
| ATM VCs per VP | atm vc-per-vp | 1024 |
| E3 interface framing | atm framing g751 | G.804 |
After you verify that the new AIP is installed correctly (the enabled LED goes on), you can use the configure command to configure the new ATM interface. Be prepared with the information you will need, such as the interface IP address, maximum transmission unit (MTU) size, ATM adaptation layer (AAL) mode, and desired rate queues.
Following are instructions for a basic configuration: enabling an interface and specifying IP routing. You might also need to enter other configuration subcommands, depending on the requirements for your system configuration and the protocols you plan to route on the interface. For complete descriptions of configuration subcommands and the configuration options available for ATM, refer to the Router Products Configuration Guide and Router Products Command Reference publication.
The router identifies an interface number by its interface processor slot number (slots 0 and 1 and 4 through 6) and port number (port numbers 0 to 7, depending on the interface processor type) in the format slot/port. Because each AIP contains a single ATM interface, the port number is always 0. For example, the slot/port address of an ATM interface on an AIP installed in interface processor slot 1 would be 1/0.
The following steps describe a basic configuration. Before using the configure command, you must enter the privileged level of the EXEC command interpreter with the enable command. The system will prompt you for a password if one is set. Press the Return key after each configuration step unless otherwise noted.
Router# configure terminal
Router(config)# interface atm 1/0
Router(config)# ip address 1.1.1.1 255.255.255.0
Router(config-if)# no shutdown
Router# copy running-config startup-config
A rate queue defines the maximum speed at which an individual virtual circuit (VC) transmits data to a remote ATM host.
There are no default rate queues. Every VC must be associated with one rate queue. The AIP supports up to eight different peak rates. The peak rate is the maximum rate, in kilobits per second, at which a VC can transmit. After attachment to this rate queue, the VC is assumed to have its peak rate set to that of the rate queue.
You can configure each rate queue independently to a portion of the overall bandwidth available on the ATM link. The combined bandwidths of all rate queues should not exceed the total bandwidth available for the AIP physical layer interface. The total bandwidth depends on the PLIM. (See the section "AIP Connection Equipment" in the chapter "Preparing for Installation.")
The rate queues are broken into a high (0 through 3) and low (4 through 7) bank. When the rate queues are configured, the AIP will service the high-priority banks until they are empty and then service the low-priority banks.
VCs get the entire bandwidth of the associated rate queue. If oversubscription occurs, the other rate queues in bank A will miss the service opportunities. In the worst case, a 10-Mbps rate queue will take 100 Mbps if there are 10 VCs attached to it and all of them have packets to send at the same time.
To configure rate queue 1 at 10 Mbps, use the atm rate-queue queuenumber rate command in interface configuration mode as follows:
Router(config-if)# atm rate-queue 1 10
where the queue number is in the range of 0 to 7 and the rate (in Mbps) in the range of 1 to 155. The no form of the command removes the rate queue.
You must create a rate queue before you can create PVCs or SVCs. If all rate queues are unconfigured, a warning message will appear, as follows:
%WARNING:(ATM4/0): All rate queues are disabled
If the combined queue rates exceed the AIP physical layer interface bandwidth maximum, a warning message will appear, as follows:
%WARNING(ATM4/0): Total rate queue allocation nMbps exceeds maximum of nMbps
The AIP default values may be changed to match your network environment. Perform the tasks in the following sections if you need to customize the AIP:
The AIP interface is referred to as atm in the configuration commands. An interface is created for each AIP found in the system at reset time. To select a specific AIP interface, use the interface atm command, as follows:
interface atm n / i
where n is the slot number and i is the interface number.
To set the MTU size, use the following command:
mtu bytes no mtu
where bytes is in the range of 64 through 9188 bytes and the default is 4470 bytes. (the default of 4470 bytes exactly matches FDDI and HSSI interfaces for autonomous switching.) The no form of the command restores the default.
In STM-1 mode, the AIP sends idle cells for cell-rate decoupling. In STS-3C mode, the AIP sends unassigned cells for cell-rate decoupling. The default SONET setting is STS-3C. To configure for STM-1, use the following command:
atm sonet stm-1
To change back to STS-3C, use the no atm sonet stm-1 command.
To configure an ATM interface for local loopback (useful for checking that the AIP is working), use the following command:
loopback plim
no loopback plim
The no form of the command turns off loopback.
The atm rxbuff command sets the maximum number of reassemblies that the AIP can perform simultaneously. The AIP allows up to 512 simultaneous reassemblies; the default is 256. The no form of the command restores the default.
The E3 interface supports G.804 and G.751 framing. The default is G.804. To set the framing to G.751, use the following command:
atm framing g751
no atm framing g751
The no atm framing g751 command resets the E3 interface to the default G.804 framing.
To set the number of transmit buffers for simultaneous fragmentation, use the following command:
atm txbuff n
no atm txbuff
where n is in the range 0 to 512. The default is 256.
By default, the AIP uses the recovered receive clock to provide transmit clocking. To specify that the AIP generates the transmit clock internally for SONET, E3, and DS3 PLIM operation, use the following command:
atm clock internal
A VC is a point-to-point connection between remote hosts and routers. A VC is established for each ATM end node with which the router communicates. The characteristics of the VC are established when the VC is created and includes the following:
Each VC supports the following router functions:
By default, fast switching is enabled on all AIP interfaces. These switching features can be turned off with interface configuration commands. Autonomous switching must be explicitly enabled for each interface.
All PVCs, configured into the router, remain active until the circuit is removed from the configuration. The PVCs also require a permanent connection to the ATM switch.
All virtual circuit characteristics apply to PVCs. When a PVC is configured, all the configuration options are passed on to the AIP. These PVCs are writable into the nonvolatile RAM (NVRAM) as part of the system configuration and are used when the software image is reloaded.
Some ATM switches have point-to-multipoint PVCs that do the equivalent of broadcasting. If a point-to-multipoint PVC exists, then that PVC can be used as the sole broadcast PVC for all multicast requests.
To configure a PVC, you must perform the following tasks:
When you create a PVC, you create a virtual circuit descriptor (VCD) and attach it to the VPI and VCI. A VCD is an AIP-specific mechanism that identifies to the AIP which VPI/VCI to use for a particular packet. The AIP requires this feature to manage the packets for transmission. The number chosen for the VCD is independent of the VPI/VCI used.
When you create a PVC, you also specify the AAL and encapsulation. A rate queue is used that matches the peak and average rate selections, which are specified in kilobits per second. Omitting a peak and average value causes the PVC to be connected to the highest bandwidth rate queue available. In that case, the peak and average values are equal.
To create a PVC on the AIP interface, use the atm pvc command:
Router(config)# interface atm 2/0 Router(config-if)# atm pvc 2048 255 128 aal5snap 10 10 2046
To remove a PVC, use the no form of this command:
atm pvc vcd vpi vci aal-encap [peak] [average] [cell-quota] no atm pvc vcd
vcd---A per-AIP unique index value describing this VC in the range of 1 to MAXVC.
vpi---The ATM network VPI to use for this VC in the range of 0 through 255.
vci---The ATM network VCI to use for this VC in the range of 0 through 65,535.
encapsulation---The encapsulation type to use on this VC from the following:
protocol-type-for-mux---A protocol type compatible with the MUX is required from the following protocols: ip, decnet, novell, vines, xns.
peak-rate---(Optional) The maximum rate, in Kbps, at which this VC can transmit.
average-rate---(Optional) The average rate, in Kbps, at which this VC will transmit.
cell quota---(Optional) The cell-quota is an integer value, in the range 1 through 2047, describing the maximum number of credits that a VC can accumulate. The AIP makes use of this in multiples of 32 cells. Every cell transfer consumes one cell credit. One cell transfer credit is issued to a VC in the average rate speed.
The atm pvc command creates PVC n and attaches the PVC to VPI and VCI. The AAL used is specified by aal and encapsulation by encap. A rate queue is used that matches the peak and average (avg) rate selection. The peak and avg rate selection values are specified in Kbps. Not specifying a peak and avg value causes the PVC to default to the highest bandwidth rate queue available.
The defaults for peak-rate and average-rate are that peak = average, and the PVC is automatically connected to the highest bandwidth rate queue available. A VCD is an AIP specific mechanism that identifies to the AIP which VPI/VCI to use for a particular packet. The AIP requires this feature to manage the packets for transmission.
The vp filter (vp_filter) configures the hex value used in the vp filter register in the reassembly operation. When a cell is received, the right half (most-significant byte) of the filter is exclusively NORed with the incoming VPI. The result is then ORed with the left half (least-significant byte) of the filter (the mask). If the result is all ones, then reassembly is done using the VCI/MID table. Otherwise, reassembly is done using the VPI/VCI table. The vp filter mechanism allows a way of specifying which VPI (or range of VPIs) will be used for AAL3/4 processing; all other VPIs map to AAL5 processing. In the case where only AAL5 processing is desired, the vp filter should be set to the default VPI of 0x7B (hexadecimal). AAL5 processing will be performed on the first 127 VPIs in that case. Currently you can only configure one VPI for all the AAL3/4 packets.
Examples follow:
atm vp-filter 1
All incoming cells with VPI = 1 will be reassembled via AAL3/4 processing. AAL3/4 is supported with IOS Release 10.2 and later.
atm vp-filter 0
All incoming cells with VPI = 0 will be reassembled via AAL3/4 processing. All other cells will be reassembled via AAL5 processing.
A mapping scheme identifies the ATM address of remote hosts/routers. This address can be specified either as a VCD for a PVC, or an NSAP address for SVC operation.
Enter mapping commands as groups; multiple map entries can exist in one map list. First create a map list, then associate the list with an interface. Enter the map-list name command; then enter the protocol, protocol address, and other variables as follows:
map-list name protocol protocol address atm-vc vcd | atm-nsap nsap [broadcast]
The broadcast keyword specifies that this map entry receives the corresponding protocol broadcast requests to the interface (for example, any network routing protocol updates). If you do not specify broadcast, the ATM software is prevented from sending routing protocol updates to the remote hosts.
After you create the map list, specify the ATM interface to which it applies with the interface command as follows:
interface atm slot/port
Associate the map list to an interface with the following command:
map-group name
You can create multiple map lists, but only one map list can be associated with an interface. Different map lists can be associated with different interfaces. The following is an example of mapping a list to an interface:
interface atm4/0 ip address 1.1.1.1 255.255.255.0 map-group atm atm rate-queue 1 100 atm pvc 1 0 8 aal5snap atm pvc 2 0 9 aal5mux decnet decnet cost 1 ! map-list atm ip 1.1.1.1 atm-vc 1 broadcast decnet 10.2 atm-vc 2 broadcast
After configuring the new interface, use the show commands to display the status of the new interface or all interfaces.
ATM show commands are available to display the current state of the ATM network and the connected VCs.
To show current VCs and traffic information, use the following command:
show atm vc [vcd]
Specifying a VCD will display specific information about that VCD.
To show current information about an ATM interface, use the following command:
show atm int interface
The show atm int interface command will display ATM-specific information about an interface.
To show current ATM traffic, use the following command:
show atm traffic
The show atm traffic command displays global traffic information to and from all ATM networks connected to the router.
To show the current ATM mapping, use the following command:
show atm map
The show atm map command displays the active list of ATM static maps to remote hosts on an ATM xnetwork.
Following are descriptions and examples of the show commands that display AIP information.
Router# show cont cbus
AIP 4, hardware version 1.0, microcode version 10.1
Microcode loaded from system
Interface 32 - ATM4/0, PLIM is 4B5B(100Mbps)
15 buffer RX queue threshold, 36 buffer TX queue limit, buffer size 4496
ift 0007, rql 12, tq 0000 0620, tql 36
Transmitter delay is 0 microseconds
Router# show atm vc Intfc. VCD VPI VCI Input Output AAL/Encaps Peak Avg. Burst ATM4/0.1 1 1 1 305 0 AAL3/4-SMDS 0 0 0 ATM4/0 2 2 2 951 0 AAL5-SNAP 0 0 0 ATM4/0 3 3 3 0 0 AAL5-SNAP 0 0 0 ATM4/0 4 4 4 162 0 AAL5-MUX 0 0 0 ATM4/0 6 6 6 2722 0 AAL5-SNAP 0 0 0 ATM4/0 7 7 7 733 0 AAL5-SNAP 0 0 0
Router# show atm vc 4 ATM4/0: VCD: 4, VPI: 4, VCI: 4, etype:0xBAD, AAL5 - MUX, Flags: 0x34 PeakRate: 0, Average Rate: 0, Burst: 0 *32cells, Vcmode: 0xE200 InPkts: 164, OutPkts: 0, InFast: 0, OutFast: 0, Broadcasts: 0
Router# show atm vc 1 ATM4/0.1: VCD: 1, VPI: 0, VCI: 1, etype:0x1, AAL3/4 - SMDS, Flags: 0x35 PeakRate: 0, Average Rate: 0, Burst: 0 *32cells, VCmode: 0xE200 MID start: 1, MID end: 16 InPkts: 0, OutPkts: 0, InFast: 0, Broadcasts: 0
Router# show atm int atm 4/0 ATM interface ATM4/0: AAL enabled: AAL5, Maximum VCs: 1024, Current VCs: 6 Tx buffers 256, Rx buffers 256, Exception Queue: 32, Raw Queue: 32 VP Filter: 0x7B, VCIs per VPI: 1024 PLIM Type:4B5B - 100Mbps, No Framing, TX clocking: LINE 4897 input, 2900 output, 0 IN fast, 0 OUT fast Rate-Queue 1 set to 100Mbps, reg=0x4EA Config. is ACTIVE
Router# show atm map Map list atm: vines 3004B310:0001 maps to VC 4, broadcast ip 1.1.1.1 maps to VC 1, broadcast clns 47.0004.0001.0000.0c00.6e26.00 maps to VC 6, broadcast appletalk 10.1 maps to VC 7, broadcast decnet 10.1 maps to VC 2, broadcast
Router# show atm traffic 4915 Input packets 0 Output packets 2913 Broadcast packets 0 Packets for non-existent VC 0 Packets with CRC errors 0 OAM cells received 0 Cells lost
Router> show version GS Software (RSP2-K), Version 10.3(571) Copyright (c) 1986-1995 by cisco Systems, Inc. Compiled Wed 10-May-95 14:44 System Bootstrap, Version 4.6(1) Current date and time is Fri 5-12-1995 2:18:52 Boot date and time is Fri 5-12-1993 11:42:38 Router uptime is 2 hours, 36 minutes System restarted by power-on Running default software Network configuration file is "Router", booted via tftp from 1.1.1.1 RSP2 (Risc 4600) processor with 16384K bytes of memory. X.25 software. Bridging software. 1 Route Switch Processor. 1 TRIP controller (4 Token Ring). 4 Token Ring/IEEE 802.5 interface. 1 AIP controller (1(ATM) 1 ATM network interface 8192K bytes of flash memory on embedded flash (in RSP2). Configuration register is 0x0 (display text omitted)
Router# show running-config interface atm2/0 ip address 1.1.1.1 255.255.255.0 atm rate-queue 1 100 atm rate-queue 2 5 atm pvc 1 1 1 aal5mux ip atm pvc 3 3 3 aal5snap atm pvc 4 4 5 aal5snap 4000 3000 appletalk address 10.1 appletalk zone atm
The FSIP supports EIA/TIA-232, EIA/TIA-449, V.35, and X.21 electrical interfaces in both DTE and DCE mode, and EIA-530 interfaces in DTE mode. The port adapter cable connected to each port determines the electrical interface type and mode of the port. To change the electrical interface type or mode of a port, you replace the port adapter cable and use software commands to reconfigure the port for the new interface. At system startup or restart, the FSIP polls the interfaces and determines the electrical interface type of each port (according to the type of port adapter cable attached). However, it does not necessarily repoll an interface when you change the adapter cable online. To ensure that the system recognizes the new interface type, you must shut down and reenable the interface after changing the cable. When setting up a new DCE interface or changing the mode of an interface from DTE to DCE, or when setting up a loopback test, you must also set the clock rate on the interface. If necessary, you can also use software commands to invert the clock to compensate for phase shifts caused by circuit delays or variances in cable lengths.
The default configuration for serial ports is DCE mode, NRZ format, and 16-bit CRC error correction. All serial interfaces support nonreturn to zero inverted (NRZI) format and 32-bit error correction, both of which are enabled with a software command.
To use an FSIP port as a DCE interface, you must connect a DCE port adapter cable and set the clock speed with the clockrate command. You must also set the clock rate to perform a loopback test. This section describes how to use software commands to set the clock rate on a DCE port and, if necessary, how to invert the clock to correct a phase shift between the data and clock signals.
All DCE interfaces require a noninverted internal transmit clock signal, which is generated by the FSIP. The default operation on an FSIP DCE interface is for the DCE device (FSIP) to generate its own clock signal (TxC) and send it to the remote DTE. The remote DTE device returns the clock signal to the DCE (FSIP port). When using DCE interfaces, you must connect a DCE-mode adapter cable to the port and specify the rate of the internal clock with the clockrate configuration command followed by the bits-per-second value. In the following example, the top serial interface on an FSIP in interface processor slot 1 (1/0) is defined as having a clock rate of 2 Mbps.
Router# conf t Enter configuration commands, one per line. End with CNTL/Z. Router(config)#interface serial 1/0 Router (config-if)# clockrate 2000000 Router (config-if)# ^z Router#
Following are acceptable clock rate settings:
1200 , 2400 , 4800 , 9600, 19200, 38400, 56000, 64000, 72000, 125000, 148000, 500000, 800000, 1000000, 1300000, 2000000, 4000000
Speeds above 64 kbps (64000) are not appropriate for EIA/TIA-232; use EIA/TIA-449 on faster interfaces. The faster speeds might not work if your cable is too long. If you change an interface from DCE to DTE, use the no clockrate command to remove the clock rate.
The FSIP ports support full duplex operation at DS-1 (1.544 Mbps) and E-1 (2.048 Mbps) speeds. Each four-port module (see the section "Fast Serial Interface Processor (FSIP)" in the chapter "Product Overview") is controlled by a dedicated MC68040 processor and can support an aggregate bandwidth of 8 Mbps. For example, you can configure each of the four ports on a module to operate at 2 Mbps, or configure one port to operate at 8 Mbps and leave the remaining three ports idle. The result is a maximum aggregate bandwidth of 8 Mbps on a four-port FSIP (which has one module that comprises ports 0 through 3), and 16 Mbps on an eight-port FSIP (which has two modules that comprise ports 0 through 3 and 4 through 7). The type of electrical interface, the amount of traffic processed, and the types of external data service units (DSUs) connected to the ports affect actual rates.
Systems that use long cables may experience high error rates when operating at the higher speeds. Slight variances in cable length, temperature, and other factors can cause the data and clock signals to shift out of phase. Inverting the clock can often correct this shift. The invert-transmit-clock configuration command inverts the TxC clock signal for DCE interfaces. This prevents phase shifting of the data with respect to the clock.
To change the clock back to its original phase use the no invert-transmit-clock command. In the example that follows, the clock is inverted for the top serial port on an FSIP in interface processor slot 3:
Router# conf t Enter configuration commands, one per line. End with CNTL/Z. Router(config)# interface serial 3/0 Router(config-if)# invert-transmit-clock Router(config-if)# ^z
The default for all interface types is for nonreturn to zero (NRZ) format; however, all types also support nonreturn to zero inverted (NRZI). NRZ encoding is most common. NRZI encoding is used primarily with EIA/TIA-232 connections in IBM environments. To enable NRZI encoding on any interface, specify the slot and port address of the interface followed by the command nrzi-encoding. In the example that follows, the top serial port on an FSIP in interface processor slot 3 is configured for NRZI encoding:
Router# conf t Enter configuration commands, one per line. End with CNTL/Z. Router(config)# interface serial 3/0 Router(config-if)# nrzi-encoding Router(config-if)# ^z
To disable NRZI encoding on a port, specify the slot and port address and use the no nrzi-encoding command.
For a brief overview of NRZ and NRZI, refer to the section "NRZ and NRZI Formats" in the chapter "Preparing for Installation." For complete command descriptions and instructions, refer to the related software configuration and command reference documentation.
All interfaces (including the HIP) use a 16-bit cyclic redundancy check (CRC) by default but also support a 32-bit CRC. The 32-bit CRC function for the HIP is identical to that used for the FSIP.
CRC is an error-checking technique that uses a calculated numeric value to detect errors in transmitted data. The sender of a data frame divides the bits in the frame message by a predetermined number to calculate a remainder or frame check sequence. Before it sends the frame, the sender appends the FCS value to the message so that the frame contents are exactly divisible by the predetermined number. The receiver divides the frame contents by the same predetermined number that the sender used to calculate the FCS. If the result is not 0, the receiver assumes that a transmission error occurred and sends a request to the sender to resend the frame.
The designators 16 and 32 indicate the number of check digits per frame that are used to calculate the FCS. CRC-16, which transmits streams of 8-bit characters, generates a 16-bit FCS. CRC-32, which transmits streams of 16-bit characters, generates a 32-bit FCS. CRC-32 transmits longer streams at faster rates, and therefore provides better ongoing error correction with less retransmits. Both the sender and the receiver must use the same setting.
CRC-16, the most widely used throughout the United States and Europe, is used extensively with wide area networks (WANs). CRC-32 is specified by IEEE-802 and as an option by some point-to-point transmission standards. It is often used on SMDS networks and LANs.
The default for all serial interfaces is for 16-bit CRC. To enable 32-bit CRC on an interface, specify the slot and port address of the interface followed by the command crc32. In the example that follows, the top serial port on an FSIP in interface processor slot 1 is configured for 32-bit CRC:
Router# conf t Enter configuration commands, one per line. End with CNTL/Z. Router(config)# interface serial 1/0 Router (config-if)# crc32 Router (config-if)# ^z
To disable CRC-32 and return to the default CRC-16 setting, specify the slot and port address and use the no crc32 command.
For a brief overview of CRCs, refer to the section "Cyclic Redundancy Checks (CRCs)" in the chapter "Preparing for Installation." For complete command descriptions and instructions, refer to the related software configuration and command reference documentation.
The E1-G.703/G.704 interface supports 4-bit CRC in framed mode only. CRC-4 is not enabled by default.
To enable CRC-4 on the E1-G.703/G.704 interface, specify the slot and port address of the interface followed by the command crc4. In the example that follows, the top port on an FSIP in IP slot 1 is configured for CRC:
Router# conf t Enter configuration commands, one per line. End with CNTL/Z. Router(config)# interface serial 1/0 Router (config-if)# crc4 Router (config-if)# ^z
To disable CRC-4 and return to the default of no CRC error checking, specify the slot and port address and use the no crc4 command. For complete command descriptions and instructions, refer to the related software documentation.
The port adapter cable connected to each port determines the electrical interface type and mode of the port. The default mode of the ports is DCE, which allows you to perform a loopback test on any port without having to attach a port adapter cable. Although DCE is the default, there is no default clock rate set on the interfaces. When there is no cable attached to a port, the software actually identifies the port as Universal, Cable Unattached rather than either a DTE or DCE interface.
Following is an example of the show controller cybus command that shows an interface port (1/0) that has an EIA/TIA-232 DTE cable attached, and a second port (1/1) that does not have a cable attached:
Router# show controller cybus
(display text omitted)
Interface 16 - Serial1/0, electrical interface is RS-232 DTE
31 buffer RX queue threshold, 101 buffer TX queue limit, buffer size 1520
Transmitter delay is 0 microseconds
Interface 17 - Serial1/1, electrical interface is Universal (cable unattached)
31 buffer RX queue threshold, 101 buffer TX queue limit, buffer size 1520
To change the electrical interface type or mode of a port online, you replace the serial adapter cable and use software commands to restart the interface and, if necessary, reconfigure the port for the new interface. At system startup or restart the FSIP polls the interfaces and determines the electrical interface type of each port (according to the type of port adapter cable attached). However, it does not necessarily repoll an interface when you change the adapter cable online. To ensure that the system recognizes the new interface type, shut down and reenable the interface after changing the cable.
Perform the following steps to change the mode or interface type of a port by replacing the adapter cable. First, replace the cable, then shutdown and bring up the interface with the new cable attached so that the system recognizes the new interface. If you are replacing a cable with one of the same interface type and mode, these steps are not necessary (simply replace the cable without interrupting the operation).
Router> en Password: sshhhhh Router# configure terminal int serial 1/5 shutdown ^z Router# copy running-config startup-config
Router# conf t Enter configuration commands, one per line. End with CNTL/Z. Router(config)# int serial 1/5 Router(config-if)# no shutdown Router(config-if)# ^z
These steps will prompt the system to poll the interface and recognize new the interface immediately.
When configuring a port for a DCE interface for the first time, or when setting up a loopback test, you must set the clock rate for the port. When you connect a DCE cable to a port, the interface will remain down, the clock LEDs will remain off, and the interface will not function until you set a clock rate (regardless of the DCE mode default).
If you are changing the mode of the interface from DCE to DTE, you do not need to change the clock rate command for the port. After you replace the DCE cable with a DTE cable and the system recognizes the interface as a DTE, it will use the external clock signal from the remote DCE device and ignore the internal clock signal that the DCE interface normally uses. Therefore, once you configure the clock rate on a port for either a DCE interface or loopback, you can leave the clock rate configured and still use that port as a DTE interface.
Serial port adapters provide the high-density ports for FSIP serial interfaces. Each port adapter provides two ports, and each port supports any one of the available interface types: EIA/TIA-232, EIA/TIA-449, V.35, X.21, and EIA-530. (See the section "Universal Serial Port Adapters" in the chapter "Product Overview.") The adapter cable connected to the port determines the electrical interface type and mode (DTE or DCE) of the interface. Each FSIP is shipped from the factory with four or eight port adapters installed. Port adapters are FRUs; if you have spares on hand and have a failure, you can replace interfaces without having to return the FSIP to the factory. You cannot, however, add ports to an FSIP by installing additional port adapters. The four-port FSIP supports only one four-port module. To change the electrical interface type or mode of a port, you need only replace the adapter cable and reset the interface. When setting up DCE port, you must also set the clock rate. Although DCE is the default mode, you do not need to specify the mode when configuring DTE interfaces. When the port recognizes the DTE interface cable, it automatically uses the clock signal from the remote DCE device.
All serial interface types support NRZI format, which you set with a software command. (Refer to the section "Configuring the FSIP" in this chapter.) For complete command descriptions and instructions, refer to the related software documentation.
You need the following tools to complete this procedure:
Two or four port adapters (each port adapter provides two ports) are installed on each FSIP at the factory. In order to install a new port adapter (or to replace an existing one), you need to remove an existing port adapter. Each four-port module on an FSIP is driven by a CPU; four-port FSIPs contain one processor, and eight-port FSIPs contain two processors. You cannot add additional ports to a four-port FSIP to upgrade it to eight ports.
Follow these steps to remove and replace the FSIP:
Port adapters are installed on each FSIP at the factory. You must remove an existing port adapter in order to replace or install a new one. Each port adapter is anchored to the FSIP with two double-row vertical board-to-board (BTB) connectors and two Phillips-head screws that extend down into the standoffs. (See Figure 5-15.) The port adapter is also anchored to the carrier faceplate with four jackscrews with lock washers (two per port).
To remove a port adapter from the FSIP perform the following steps:
Figure 5-15 Removing FSIP Port Adapters
The FSIP should already be out of the chassis and have an empty space available for the new port adapter. If it is not, refer to the two previous sections to remove the FSIP from the chassis and remove a port adapter from the FSIP.
Figure 5-16 Installing FSIP Port Adapters
Refer to Figure 5-16 while performing the following steps:
There should now be four or eight port adapters installed on the FSIP. If there are not, do not install the FSIP until you install all port adapters or until you install a blank interface processor carrier in the FSIP slot.
This completes the port adapter replacement procedure. For complete command descriptions and instructions, refer to the related software configuration and command reference documentation.
Following are procedures for configuring T1 and E1 interfaces on the MIP.
If you installed a new MIP or if you want to change the configuration of an existing controller, you must enter the configuration mode. If you replaced the MIP that was previously configured, the system will recognize the new MIP and bring it up in the existing configuration.
After you verify that the new MIP is installed correctly (the enabled LED is on), use the
privileged-level configure command to configure the new MIP controller. Be prepared with the information you will need, such as the following:
Refer to the Router Products Configuration Guide and Router Products Command Reference publications for a summary of the configuration options available and instructions for configuring the MIP controller.
By default, channelized E1 port adapters are set with capacitive coupling between the receive (Rx) shield and chassis ground. This provides direct current (DC) isolation between the chassis and external devices, as stated in the G.703 specification. Jumper J6 controls this function. To make changes, remove the E1 port adapter from the motherboard, place one of the spare jumpers on J6 pins one and two or pins two and three (refer to Table 5-8), and replace the port adapter on the motherboard. Pin 1 of J6 is designated with a square. (See Figure 5-17.)
For procedures on removing the E1 port adapter from the MIP, refer to the section "Removing and Replacing MIP E1 Port Adapters" in this chapter.
Figure 5-17 Location of Jumper J6 on the E1 Port Adapter (Partial View)
Table 5-8 Jumper Settings and Functions
| Jumper | Pins and Impedance | Function | |
|---|---|---|---|
| J6 | 1 and 2 for 120 ohm2 and 3 for 75 ohm | Controls capacitive coupling for either 120-ohm or 75-ohm operation; an installed jumper directly connects the Rx shield to chassis ground. | |
After you set jumper J6, proceed to the section "Removing and Replacing MIP E1 Port Adapters" in this chapter.
Before you use the configure command, you must enter the privileged level of the EXEC command interpreter with the enable command. The system will prompt you for a password if one has been set.
The system prompt for the privileged level ends with a pound sign (#) instead of an angle bracket (>). At the console terminal, enter the privileged level as follows:
Router> enable Password:
Router#
Following are instructions for a configuration to enable a controller and specify IP routing. You might also need to enter other configuration subcommands, depending on the requirements for your system configuration and the protocols you plan to route on the interface. The channel-groups must be mapped before the MIP controller can be configured.
For complete descriptions of configuration subcommands and the configuration options available, refer to the Router Products Configuration Guide and Router Products Command Reference publication. Following are commands used to map the channel-group; the default variable is listed first:
| Commands for T1: | Commands for E1: |
|---|---|
| controller t1 slot/applique | controller e1 slot/applique |
| clock source [line | internal] | Not required for E1 |
| linecode [ami | b8zs] | linecode [hdb3 | ami] |
| framing [sf | esf] | framing [crc4 | no-crc4] |
| loopback [local | remote] | loopback |
| shutdown | shutdown |
| channel-group number timeslots list [speed {56 | 48 | 64}] For speed, 56 is the default. | channel-group number timeslots list [speed {56 | 48 |64}] For speed, 64 is the default. |
Number is the channel-group 0 to 23 for T1 and 0 to 29 for E1.
Timeslots list is a number between 1 to 24 for T1 and 1 to 31 for E1. It conforms to D3/D4 numbering for T1. Timeslots may be entered individually and separated by commas or as a range that is separated by a hyphen (for example, 1-3, 8, 9-18). For E1 and T1, 0 is illegal.
Speed specifies the DSO speed of the channel-group: T1 default is 56 kbps and E1 default is 64 kbps.
The following steps describe a basic T1 configuration. Press the Return key after each configuration step.
Router# conf t Enter configuration commands, one per line. End with CNTL/Z. Router(config)#
Router(config)# cont t1 4/1
Router(config-controller)# clock source line
Router(config-controller)# framing esf
Router(config-controller)# linecode b8zs Router(config-controller)# %CONTROLLER-3-UPDOWN: Controller T1 4/1, changed state to up Router(config-controller)#
Router(config-controller)# channel-group 0 timeslots 1,3-5,7 Router(config-controller)# %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial4/1:0, changed state to down %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial4/1:0, changed state to up Router(config-controller)# Router(config-controller)#
Router(config-controller)# int serial 4/1:0
Router(config-if)# ip address 1.1.15.1 255.255.255.0 Router(config-if)#
Router# copy running-config startup-config
Router# disable Router>
The following steps describe a basic E1 configuration. Press the Return key after each step.
Router# conf t Enter configuration commands, one per line. End with CNTL/Z. Router(config)#
Router(config)# cont e1 4/1
Router(config-controller)# framing crc4
Router(config-controller)# linecode hdb3 Router(config-controller)# %CONTROLLER-3-UPDOWN: Controller E1 4/1, changed state to up Router(config-controller)#
Router(config-controller)# channel-group 0 timeslots 1,3-5,7 Router(config-controller)# %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial4/1:0, changed state to down %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial4/1:0, changed state to up Router(config-controller)# Router(config-controller)#
Router(config-controller)# int serial 4/1:0
Router(config-if)# ip address 1.1.1.1 255.255.255.0 Router(config-if)#
Router# copy running-config startup-config
Router# disable Router>
After configuring the new interface, use the show commands to display the status of the new interface or all interfaces.
Following are descriptions and examples of the show commands. Descriptions are limited to fields that are relevant for verifying the configuration.
Router> show version GS Software (RSP-K), Version 10.3(x) Copyright (c) 1986-1995 by cisco Systems, Inc. Compiled Wed 05-May-95 15:52 ROM: System Bootstrap, Version 4.6(1) [fc2], SOFTWARE Router uptime is 42 minutes System restarted by reload System image file is "wmay/gs7-k", booted via tftp from 1.1.1.1 RSP2 (Risc 4600) processor with 16384K bytes of memory. X.25 software, Version 2.0, NET2, BFE and GOSIP compliant. Bridging software. 1 Route Switch Processor. 1 EIP controller (6 Ethernet). 1 TRIP controller (4 Token Ring). 1 FSIP controller (4 Serial). 1 MIP controller (1 T1). (or 1 E1, and so forth) 6 Ethernet/IEEE 802.3 interfaces. 4 Token Ring/IEEE 802.5 interfaces. 6 Serial network interfaces. 1 FDDI network interface. 128K bytes of non-volatile configuration memory. 4096K bytes of flash memory sized on embedded flash. Configuration register is 0x100
Router# show controller cbus FIP 0, hardware version 2.2, microcode version 10.1 Microcode loaded from system Interface 0 - Fddi0/0, address 0000.0c03.648b (bia 0000.0c03.648b) 15 buffer RX queue threshold, 37 buffer TX queue limit, buffer size 4496 ift 0006, rql 13, tq 0000 01A0, tql 37 (text omitted from example) MIP 2, hardware version 1.0, microcode version 10.0 Microcode loaded from system Interface 16 - T1 2/0, electrical interface is Channelized T1 10 buffer RX queue threshold, 14 buffer TX queue limit, buffer size 1580 ift 0001, rql 7, tq 0000 05B0, tql 14 Transmitter delay is 0 microseconds
Router# show cont t1
T1 4/1 is up.
No alarms detected.
Framing is ESF, Line Code is AMI, Clock Source is line
Data in current interval (0 seconds elapsed):
0 Line Code Violations, 0 Path Code Violations 0 Slip Secs, 0 Fr Loss Secs,
0 Line Err Secs, 0 Degraded Mins 0 Errored Secs, 0 Bursty Err Secs,
0 Severely Err Secs, 0 Unavail Secs
Total Data (last 79 15 minute intervals):
0 Line Code Violations, 0 Path Code Violations, 0 Slip Secs, 0 Fr Loss Secs,
0 Line Err Secs, 0 Degraded Mins, 0 Errored Secs, 0 Bursty Err Secs,
0 Severely Err Secs, 0 Unavail Secs
Router#
Router# show cont e1
E1 4/1 is up.
No alarms detected.
Framing is E1-crc, Line Code is hdb3
Data in current interval (0 seconds elapsed):
0 Line Code Violations, 0 Path Code Violations 0 Slip Secs, 0 Fr Loss Secs,
0 Line Err Secs, 0 Degraded Mins 0 Errored Secs, 0 Bursty Err Secs,
0 Severely Err Secs, 0 Unavail Secs
Total Data (last 79 15 minute intervals):
0 Line Code Violations, 0 Path Code Violations, 0 Slip Secs, 0 Fr Loss Secs,
0 Line Err Secs, 0 Degraded Mins, 0 Errored Secs, 0 Bursty Err Secs,
0 Severely Err Secs, 0 Unavail Secs
Router#
Router# show config Using 1708 out of 130048 bytes ! version 10.3(x) ! hostname Router ! enable password ***** ! clns routing ! controller T1 4/1 (for E1, E1 4/1, and so forth) framing esf (for E1, crc4, and so forth) linecode b8zs (for E1, hdb3, and so forth) channel-group 0 1,3,5,7 channel-group 1 2,4,6,8-10 ! interface Ethernet 1/0 ip address 131.108.43.220 255.255.255.0 no mop enabled ! interface Ethernet1/1 no ip address shutdown ! interface Ethernet1/2 no ip address shutdown ! interface Ethernet1/3 (display text omitted)
Router> show protocols Global values: Internet Protocol routing is enabled CLNS routing is enabled (address 41.0000.0000.0000.0001.0000.0000.00) Fddi0/0 is down, line protocol is down Internet address is 1.1.20.1, subnet mask is 255.255.255.0 CLNS enabled Ethernet1/0 is up, line protocol is up Internet address is 1.1.43.1, subnet mask is 255.255.255.0 (display text omitted)
The following procedure describes how to use the show commands to verify that the new MIP interface is configured correctly:
If the interface is down and you configured it as up, or if the displays indicate that the hardware is not functioning properly, ensure that the network interface is properly connected and terminated. If you still have problems bringing the interface up, contact a customer service representative for assistance.
This completes the configuration procedure for the new MIP interface.
Port adapters provide the ports for the E1 and T1 interfaces. Each port adapter provides one port. Each MIP is shipped from the factory with one or two port adapters installed. You cannot add ports to an MIP by installing an additional port adapter. Port adapters are not field-replaceable; however, you need to remove an existing E1 port adapter in order to access jumper J6.
Before proceeding, refer to the section "Removing Interface Processors" in this chapter.
You need the following tools to complete this procedure:
Port adapters are installed on each MIP at the factory. Each port adapter is anchored to the MIP with one plastic double-row vertical board-to-board (BTB) connector and four Phillips screws that extend through standoffs, into the motherboard. (See Figure 5-18.) The port adapter is also anchored to the carrier faceplate with two jackscrews and two lock washers.
To remove an E1 port adapter from the MIP, refer to Figure 5-18 and perform the following steps:
Figure 5-18 Removing an E1 Port Adapter
If necessary, refer to the previous section to remove an E1 port adapter from the MIP. Refer to Figure 5-19 while you perform the following steps:
Figure 5-19 Installing an E1 Port Adapter
When you insert the new MIP, the console terminal will display several lines of status information about OIR as it reinitializes the interfaces. Change the state of the interfaces to up and verify that the configuration matches that of the interfaces you replaced.
Use the configure command or the setup command facility to configure the new interfaces. You do not have to do this immediately, but the interfaces will not be available until you configure them and bring them up.
After you configure the interfaces, use the show controller cbus, show controller T1, and show controller E1 commands to display the status of the new interface. For brief descriptions of commands refer to the section "Using Show Commands to Verify the MIP Status," in this chapter.
For complete command descriptions and instructions refer to the Router Products Command Reference publication.
This completes the port adapter replacement procedure.
The 700W (AC-input or DC-input) power supplies used in the router support redundant hot swap. When two power supplies are installed, you can install, remove, or replace one of the supplies without affecting system operation. When power is removed from one supply, the redundant power feature causes the second supply to ramp up to full power and maintain uninterrupted system operation. In systems with dual power supplies and when separate power sources are available, connect each power supply to separate input lines so that, in case of a line failure, the second source will most likely still be available. Always install the first power supply in the lower power supply bay and the second, if any, in the upper bay.
The power supply switch is also a locking device. (See Figure 5-20.) When the switch is on, the locking device extends into a slot in the chassis to prevent the power supply from being removed.
A power cable connects each power supply to the site power source. On the AC-input supply, a cable-retention clip, which snaps up and around the power cable connector after the cable is connected to the AC receptacle on the power supply, prevents the cable from accidentally being pulled out or from falling out. On the DC-input supply, nylon cable ties that you provide are used for strain relief on the DC-input power cable connected to the terminal block.
Figure 5-20 Power Supply Interlock---AC-Input Power Supply Shown
You will need a number 2 Phillips or 1/4-inch flat-blade screwdriver (whichever is appropriate) to remove and install filler plates and to loosen or tighten the captive screw on the power supply. For the DC-input power supply, you will need two 4-inch nylon cable ties to attach the DC-input power cable to the bracket beneath the terminal block, and a small wire cutter to remove the old ties.
At initial installation, you will install the power supplies after you place the chassis in its permanent location to avoid moving an extra 20 or 40 pounds around while setting up the chassis. Steps for installing the power supplies are included as part of the initial installation procedure and are not duplicated here. For power-supply installation procedures, refer to the section "Inserting Power Supplies" in the chapter "Installing the Router." For power-supply removal procedures, refer to the procedure that follows.
Redundant power supplies support OIR. If you remove one power supply, the second supply immediately ramps up to supply full power to the system to maintain uninterrupted operation. Always install a filler plate over an empty power supply bay to protect the connectors from contamination.
Follow these steps to remove a power supply:
Warning When stranded wiring is required, use approved wiring terminations, such as closed-loop or spade-type with upturned lugs. These terminations should be the appropriate size for the wires and should clamp both the insulation and conductor.
Warning Before performing any of the following procedures, ensure that power is removed from the DC circuit. To ensure that all power is OFF, locate the circuit breaker on the panel board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the switch handle of the circuit breaker in the OFF position.
Warning The illustration shows the DC power supply terminal block. Wire the DC power supply using the appropriate lugs at the wiring end, as illustrated. The proper wiring sequence is ground to ground, positive to positive (line to L), and negative to negative (neutral to N). Note that the ground wire should always be connected first and disconnected last.
Figure 5-21 Removing Nylon Cable Ties and Power Leads from DC-Input Power Supply
Figure 5-22 Power Supply Captive Installation Screw (AC-Input Power Supply Shown)
Figure 5-23 Handling a Power Supply (AC-Input Power Supply Shown)
Warning After wiring the DC power supply, remove the tape from the circuit breaker switch handle and reinstate power by moving the handle of the circuit breaker to the ON position.
This section provides the procedures for removing and replacing the chassis top front panel and bottom front panel in order to access the internal chassis components and to replace the panels that have been damaged.
The air filter and replaceable internal components are accessible by removing the top and bottom front panels of the chassis. The bottom front chassis panel is vented and works with the chassis blower to draw cooling air into the chassis. If the bottom panel is not installed correctly, or if it is cracked or broken, the flow of cooling air can be redirected and may cause overheating inside the chassis. Replace panels if they are cracked or broken, or if damage prevents them from fitting on the chassis properly.
You must remove the bottom front panel before you can remove the top front panel. The plastic bottom front panel is attached to the chassis with ball studs. The top front panel is attached to the chassis with two screws. If you are cleaning the air filter, you do not have to shut down the system if you can remove the filter, vacuum it, and replace it in less than five minutes. Always shut down the system before removing the chassis top front panel. With the top front panel removed, 100A of current is exposed on the front of the backplane and around the power supply wiring harnesses.
Warning Before working on a chassis or working near power supplies, unplug the power cord on AC units; disconnect the power at the circuit breaker on DC units.
You need a 3/16-inch flat-blade or number 1 Phillips screwdriver to remove the top front chassis panel. Earlier chassis (the first several hundred shipped) use slotted screws, and later chassis use Phillips screws to secure the top front panel to the chassis. No tools are required to remove the bottom front chassis panel.
You must remove the bottom front panel before you can remove the top front panel. The plastic bottom front panel is attached to the chassis with ball studs. The top front panel is attached to the chassis with two screws. The EMI shielding around the outer edge of the top front panel acts as a spring and compresses when you push the panel into the chassis to keep the panel fitted tightly into the chassis opening.
To remove the front panels, perform the following steps:

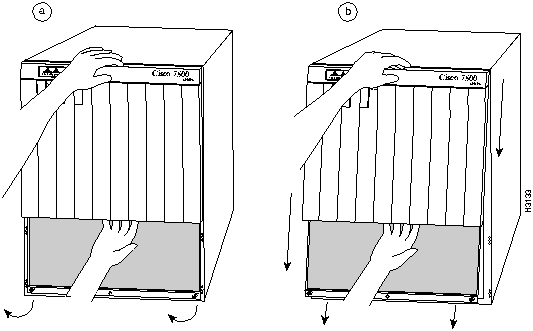

Figure 5-24 Removing the Bottom Front Panel

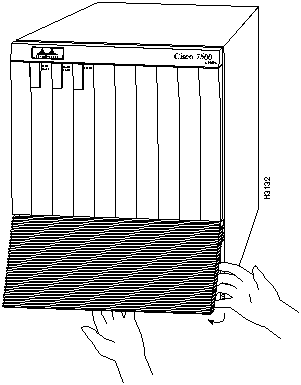

Figure 5-25 Removing the Top Front Panel
Follow these steps to replace the front chassis panels.
This completes the chassis front panel removal and replacement procedures.

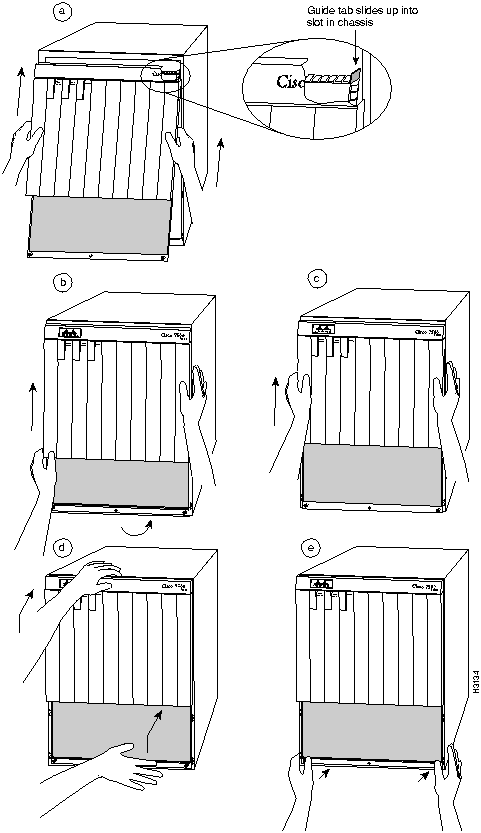

Figure 5-26 Replacing the Top Front Panel
The air filter removes dust from the air drawn in by the blower. The edges of the air filter fit into the lower frame of the top front chassis panel. Remove and vacuum the air filter at least once every two weeks, or more often in unusually dusty environments. If vacuuming is not possible, you can remove the filter and wash it, but ensure that it is completely dry before replacing it in the chassis. Have spares on hand in case the filter tears or becomes worn. A dirty filter can prohibit the flow of cooling air into the chassis and may cause an overtemperature condition.
You do not need to shut down the system if you can remove, clean, and replace the filter within five minutes. Remove the bottom front chassis panel to access and remove the filter, then move the filter away from the chassis for vacuuming. Vacuuming can dislodge substantial amounts of dust, and cleaning the filter near the opened chassis can allow loose particles to enter the chassis through the unfiltered blower. Instead, briefly remove the panel to clean it, then immediately replace it in the chassis.
You will need a small hand vacuum to clean the air filter. Have a spare filter on hand so that you can replace it if necessary without leaving the system operating without a filter or bottom front panel.
Perform the following steps to check the filter and clean or replace it if necessary:
The replaceable internal components are accessible by removing the top and bottom front chassis panels. Always turn off the system power before removing the chassis top front panel. With the top front panel removed, 100A of current is exposed on the front of the backplane and around the power supply wiring harnesses.
This section contains replacement procedures for the following equipment:
Figure 5-27 shows the locations of each of these components inside the front cavity of the chassis (shown with both front chassis panels removed).
Warning Before working on a chassis or working near power supplies, unplug the power cord on AC units; disconnect the power at the circuit breaker on DC units.
The LED board contains the three status LEDs that provide system (normal) and power supply (upper power and lower power) status on the front panel. Replace the LED board if it fails or if one of the LEDs fails.
The LED board is mounted on a horizontal plane near the top of the chassis interior. (See Figure 5-27.) The board slides into two brackets mounted to the front of the backplane and attaches to a connector on the backplane. Two pins in the brackets and a metal spring keep the board in place. (See Figure 5-28.)
You need a number 1 Phillips or 3/16-inch flat-blade screwdriver to remove the top front chassis panel.
Warning Before working on a chassis or working near power supplies, unplug the power cord on AC units; disconnect the power at the circuit breaker on DC units.
Remove the existing LED board as follows:
Figure 5-27 Internal Chassis Components
Install the new LED board as follows:
Perform the following steps to verify that the new LED board is installed correctly.
The chassis blower draws cooling air in through the chassis bottom front panel and sends it up through the floor of the inner rear compartment to cool the RSP2 and interface processors. The absence of cooling air can cause the interior of the chassis to heat up and may cause an overtemperature condition. Never operate the system if the blower is not functioning properly.
The blower is located at the bottom of the chassis interior. (See Figure 5-27.) Two air ducts on the rear of the blower, shown shaded in the illustration, fit snugly into the two cutouts in the backplane. The blower is secured to the backplane with three large captive Allen-head screws, which are shown in Figure 5-29.
Warning Before working on a chassis or working near power supplies, unplug the power cord on AC units; disconnect the power at the circuit breaker on DC units.
The following tools are required for this procedure:
Although the far-left Allen-head screw on the blower is slightly obscured from view by the left lip of the chassis and the left blower air duct, an access hole in the lip of the chassis is provided specifically for access to this screw. By inserting the Allen wrench straight into the access hole, you should be able to find the screw without any trouble. However, if you do have trouble finding the screw, and if the lighting around the chassis is poor, you may need a flashlight to locate the screw and position the Allen wrench correctly.
Remove the existing chassis blower as follows:
Figure 5-30 Blower Power Connector
Install the new chassis blower as follows:
Warning Before working on a chassis or working near power supplies, unplug the power cord on AC units; disconnect the power at the circuit breaker on DC units.
Perform the following steps to verify that the new blower is installed correctly.
This completes the blower replacement.
Perform the following steps to verify that the new arbiter board is installed correctly.
If you must return the chassis to the factory, be sure to remove all power supplies and to repack the chassis in the original shipping container. If the shipping container and packing material are no longer available, contact a customer service representative for instructions.
|
Copyright 1988-1996 © Cisco Systems Inc.
