The Cisco 7200 series routers are designed for today's most mission-critical internetworks because they combine Cisco Systems's proven software technology with reliability, availability, serviceability, and exceptional performance features. The 7200 series provides information system professionals with the flexibility they need to meet the constantly changing requirements at the core and distribution points of their internetworks.

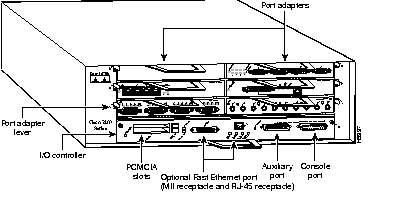

The Cisco 7200 series routers include the Cisco 7206 and the Cisco 7204.
The Cisco 7200 routers provide routing and bridging for a wide variety of protocols and network media. Port and Service adapters are connected to PCI buses (peripheral component interconnect) on the Cisco 7200 routers, enabling connection to external networks. The 7200 series supports any combination of Ethernet, Fast Ethernet, Token Ring, FDDI, ATM, serial, ISDN, and HSSI interfaces. For detailed information about port adapters, see the "Port Adapters and Service Adapters for the Cisco 7000 Family" chapter.
The Cisco 7200 series routers run the industry-leading Cisco IOS networking software, which assures robust, reliable internetworks by supporting both LAN and WAN protocols; provides optimized network services including security, quality of service, and traffic management; and enables centralized, integrated, and automated internetwork installation and management. The Cisco 7200 series offers IOS feature sets that can be customized as well as upgraded to meet changing requirements.
| Characteristic | Cisco 7206 | Cisco 7204 |
|---|---|---|
| Supported network interfaces | Ethernet 10BaseT and 10BaseFL
Fast Ethernet 100BaseT HSSI Token Ring (half and full duplex) FDDI (half and full duplex) Integrated ethernet switching Synchronous serial Channelized T1/ ISDN PRI Channelized E1/ ISDN PRI Channelized T3 ISDN BRI ATM (single-mode and multimode) ATM-CES 100VG- AnyLAN E1 and E3 serial + T3 serial | Ethernet 10BaseT and 10BaseFL
Fast Ethernet 100BaseT HSSI Token Ring (half and full duplex) FDDI (half and full duplex) Integrated ethernet switching Synchronous serial Channelized T1/ ISDN PRI Channelized E1/ ISDN PRI Channelized T3 ISDN BRI ATM (single-mode and multimode) ATM-CES 100VG-AnyLAN E1 and E3 serial + T3 serial |
| Power supplies (AC or DC) | 21 | 21 |
| Port adapter slots | 6 | 4 |
| Input/output controller | With or without Fast Ethernet | With or without Fast Ethernet |
| Network processing engine | Without SRAM
With 4MB of SRAM | Without SRAM
With 4MB of SRAM |
| Software options--Cisco IOS Release 11.2 | Network Layer 3 switching
Desktop and IBM Desktop, IBM, and APPN Enterprise Enterprise and APPN IP routing | Network Layer 3 switching
Desktop and IBM Desktop, IBM, and APPN Enterprise Enterprise and APPN IP routing |
| Software options--Cisco IOS Release 11.1(5) and above | Network Layer 3 switching
Enterprise Enterprise and APPN Desktop and IBM | Network Layer 3 switching
Enterprise Enterprise and APPN Desktop and IBM |
| PCMCIA Flash memory card (optional, 2 slots available) | 8 MB, expandable to 40 MB (8, 16, or 20 MB per card) | 8 MB, expandable to 40 MB (8, 16, or 20 MB per card) |
| Processor type | MIPS RISC | MIPS RISC |
| Dimensions (H x W x D) | 5.25 x 16.8 x 17 in. (13.34 x 42.67 x 43.18 cm) | 5.25 x 16.8 x 17 in. (13.34 x 42.67 x 43.18 cm) |
| Weight | Chassis fully configured with a network processing engine, I/O controller, 6 port adapters, 2 power supplies, and a fan tray: ~ 50 lb (22.7 kg) | Chassis fully configured with a network processing engine, I/O controller, 4 port adapters, 2 power supplies, and a fan tray: ~ 50 lb (22.7 kg) |
| High-speed midplane | 6 port adapters | 4 port adapters |
| Standard components |
|
|
| Description | Specification |
|---|---|
| Midplane | 2 primary PCI buses and 1 secondary PCI bus with an aggregate bandwidth of 600 Mbps |
| Power dissipation | ~370W maximum configuration |
| Heat dissipation | 370W (1262 BTUs2) |
| AC-input power | 370W maximum (single or dual power supply configuration) |
| AC-input voltage | 100-240 VAC3 wide input with PFC4 |
| AC-input rating | 5A maximum @ 110 VAC and 2.5A maximum @ 240 VAC fully configured |
| AC-input cable | 18 AWG5 3-wire cable, with 3-lead IEC-320 receptacle on the power supply end, and a country-dependent plug on the power source end |
| DC-output power | 280W maximum (single or dual power supply configuration) |
| DC-input power | 370W maximum (single or dual power supply configuration) |
| DC-input voltage | -48 VDC6 nominal in North America, -60 VDC maximum in the European Community |
| DC-input current rating | 13A maximum at -48 VDC |
| DC voltages supplied and maximum steady-state current ratings | +5.2V @ 360A
+12.2V @ 9A -12.0V @ 1.5A +3.5V @ 13A |
| DC-input cable | 14 AWG recommended minimum, with at least 3 conductors rated for at least 140°F (60°C) |
| Frequency | 50/60 Hz |
| Airflow | ~80 cfm7 |
| Temperature | 32 to 104°F (0 to 40°C), operating; -4 to 149°F (-20 to 65°C), nonoperating |
| Humidity | 10 to 90% noncondensing |
| Agency approvals | Safety: UL 1950, CSA 22.2 No. 950, EN60950, EN41003, AUSTEL TS001, AS/NZ 3260, IEC 950 EMI: FCC Class A, CSA Class A, EN55022 Class B, VCCI Class 2, AS/NRZ 3548 Class A Immunity: IEC-1000-4-2, IEC-1000-4-3, IEC-1000-4-4, IEC-1000-4-5, IEC-1000-4-6, IEC-1000-4-11, IEC-1000-3-2 |
| Software requirement | Cisco IOS Release 11.1(16) CA or later, 11.2(11)P or later, or 11.3(1) or later. |
The 7200 series includes the following:
| Memory Type | Size | Quantity | Description | Location |
|---|---|---|---|---|
| DRAM | 32MB to 128 MB | 2 to 4 | 8-, 16-, or 32-MB SIMMs (based on maximum DRAM required) | |
|
SRAM
|
|
|
|
|
|
Boot ROM3 | 256 KB | 1 | EPROM for the ROM monitor program | Socket U92 |
| Unified cache | 512 KB | 4 | Secondary cache for the R4700 and R5000 RISC processors |
|
Hardware for the Cisco 7200 series routers includes:
| Description | Product Number |
|---|---|
| Cisco 7200 Series Base Units | |
| Cisco 7206, 6-slot chassis, subchassis, and midplane assembly, 1 AC-input power supply | CISCO7206 |
| Cisco 7204, 4-slot chassis, subchassis, and midplane assembly, 1 AC-input power supply | CISCO7204 |
| Cisco 7200 Series Network Processing Engines1 | |
| Cisco 7200 network processing engine--200 MHz (32-MB DRAM) | NPE-200 |
| Cisco 7200 network processing engine--150 MHz (32-MB DRAM) | NPE-150 |
| Cisco 7200 network processing engine--100 MHz (32-MB DRAM) | NPE-100 |
| Cisco 7200 Series Network Processing Engine DRAM Upgrade Options | |
| 16-MB DRAM upgrade kit (2 8-MB SIMMs) (spare) | MEM-NPE-16MB= |
| 32-MB DRAM upgrade kit (2 16-MB SIMMs) (default) | MEM-NPE-32MB |
| 64-MB DRAM upgrade kit (2 32-MB SIMMs) | MEM-NPE-64MB |
| 128-MB DRAM upgrade kit (4 32-MB SIMMs)2 | MEM-NPE-128MB |
| Cisco 7200 Series Input/Output Controllers | |
| Fast Ethernet (100BaseT) input/output controller | C7200-I/O-FE or
C7200-I/O-FE-MII |
| Fast Ethernet (100BaseT) input/output controller, 8-MB Flash memory, software (reseller channel) | C7200-I/O-FE-SW= |
| Input/output controller3 | C7200-I/O |
| Input/output controller, 8 MB Flash memory, software (reseller channel) | C7200-I/O-SW= |
| Cisco 7200 Series Flash Memory Cards4 | |
| 8-MB PCMCIA Flash memory card | MEM-I/O-FLC8M |
| 16-MB PCMCIA Flash memory card | MEM-I/O-FLC16M |
| 20-MB PCMCIA Flash memory card | MEM-I/O-FLC20M |
| Cisco 7200 Series Chassis Assemblies5 | |
| Cisco 7206, 6-slot chassis, subchassis, and mid-plane assembly, 1 AC-input power supply | CISCO7206= |
| Cisco 7204, 4-slot chassis, subchassis, and mid-plane assembly, 1 AC-input power supply | CISCO7204= |
| Cisco 7200 Series Single Power Supplies | |
| AC-input power supply for United States | PWR-7200-AC= |
| AC-input power supply for Australia | PWR-7200-ACA= |
| AC-input power supply for Europe | PWR-7200-ACE= |
| AC-input power supply for Italy | PWR-7200-ACI= |
| AC-input power supply for United Kingdom | PWR-7200-ACU= |
| DC-input power supply6 | PWR-7200-DC |
| Power cords (reseller channel) | See the "Power Cords" chapter later in the catalog. |
| Cisco 7200 Series Dual Power Supplies | |
| Dual AC-input power supply | PWR-7200/2 |
| Dual DC-input power supply6 | PWR-7200/2-DC |
| Cisco 7200 Series Accessories | |
| Cisco 7200 rack-mount kit (includes cable-management brackets, rack-mount brackets, and screws) | ACS-7200-RMK= |
| Cisco 7200 spare system packaging material | PKG-7200= |
| Cisco 7200 redundant power supply cover | MAS-7200PSCOVER= |
| Cisco 7200 fan tray assembly (spare) | MAS-7200FAN= |
| Cisco 7206 subchassis and midplane assembly (spare) | MAS-7206MP= |
| Cisco 7204 subchassis and midplane assembly (spare) | MAS-7204MP= |
| Cisco 7200 blank card carrier | MAS-72KBLANK |
| Cisco 7200 port adapter slot divider | MAS-72KSLOTDIV= |
| Cables | See the "Cables and Transceivers" chapter later in the catalog. |
The Cisco 7200 series offers the following feature set:
The Cisco IOS feature set tables use the following conventions to identify features:
Table 7-33 lists the Cisco IOS Releases 11.2 and 11.1 feature sets.
Software feature packs consist of CD-ROMs that contain Cisco IOS software feature set images and a Windows 95 application, which loads the images onto a router.
Software feature packs are available for most of the Cisco IOS Release 11.2 feature set images listed in Table 7-33. Table 7-32 lists the product numbers for feature sets and feature packs available in Cisco IOS Release 11.2.
For more information about Cisco IOS software, including the latest release, see Chapter 2, "Cisco IOS (Internetworking Operating System) Software."
This section describes software product numbers for the Cisco 7200 series routers. Table 7-32 lists Cisco IOS software product numbers, and Table 7-33 lists optional feature set licenses and their product numbers.
| Description | Cisco IOS Release 11.2 | Cisco IOS Release 11.11 |
|---|---|---|
| Network Layer 3 switching | SF72R-11.2.x2
SW72R-11.2.x= | SF-G72R-11.1.x SW-G72R-11.1.x= |
| IP | SF72C-11.2.x
SW72C-11.2.x= | - |
| Desktop and IBM | SF72BS-11.2.x
SW72BS-11.2.x= | SF-G72DS-11.1.x SW-G72DS-11.1.x= CD72-BS-11.1=3 |
| Desktop, IBM, and APPN | SF72BSN-11.2.x
SW72BSN-11.2.x= | - |
| Enterprise | SF72A-11.2.x
SW72A-11.2.x= | SF-G72A-11.1.x SW-G72A-11.1.x= CD72-A-11.1=3 |
| Enterprise and APPN | SF72AN-11.2.x
SW72AN-11.2.x= | SF-G72AN-11.1.x SW-G72AN-11.1.x= CD72-AN-11.1=3 |
| Category | Features | Product Number |
|---|---|---|
| WAN packet protocols | X.25, X.25 switching, Frame Relay, SMDS, Frame Relay switching, Switched 56, ATM DXI, SMDS over ATM
In Cisco IOS Release 11.2 only: all of the above plus Frame Relay SVC support (DTE) and Frame Relay traffic shaping | FR-WPP72, FR-WPP72= |
| Interdomain routing | BGP, EGP for Internet scale routing
In Cisco IOS Release 11.2 only: all of the above plus BGP41 | FR-IR72, FR-IR72= |
| Network Address Translation (NAT) | NAT support | FR-NAT72, FR-NAT72= |
| NetFlow switching | NetFlow switching software | FR-NF72, FR-NF72= |
Cisco IOS feature set upgrades are easy to order for Cisco 7200 series routers. The following is an example:
You have a Cisco 7206 router running the Cisco IOS Release 11.1 Network Layer 3 (basic) feature set. You want to upgrade to the Cisco IOS Release 11.2 Enterprise feature set. To complete the upgrade, use the following guidelines:
Table 7-34 lists Cisco IOS software upgrade product numbers.
| Feature Set Upgrade | Product Number |
|---|---|
| Desktop, IBM to Enterprise1 | FR72-BSA= |
| IP to Desktop, IBM1 | FR72-CBS= |
| IP to Enterprise1 | FR72-CA= |
| Network Layer 3 to IP1 | FR72-RI= |
| Network Layer 3 to Desktop, IBM1 | FR72-RBS= |
| Network Layer 3 to Enterprise1 | FR72-RA |
| Desktop, IBM to Enterprise2 | SW-G72BSA-11.1.x=3 |
| IP to Desktop, IBM2 | SW-G72CDS-11.1.x= |
| IP to Enterprise2 | SW-G72CA-11.1.x= |

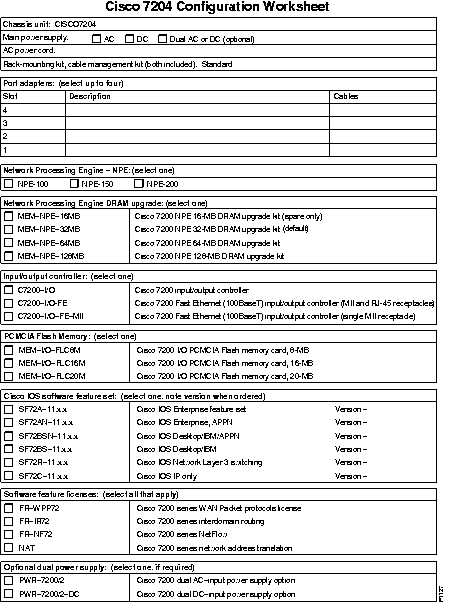

The last pages of this chapter provide configuration worksheets for the Cisco 7204 and Cisco 7206. Use the information in this chapter and in the "Port Adapters and Service Adapters for the Cisco 7000 Family" chapter to complete the worksheets.
To order a router, select a base unit and then order specific options. The base unit comes with a console cable, an auxiliary cable, an AC or DC power supply, a rack-mount kit, a cable-management bracket, and a power cord (AC only). Default components are included in the price of the base unit.
|
|
