The Cisco 7500 series and Cisco 7200 series routers support ATM, 100VG-AnyLAN, Ethernet 10BaseT and 10BaseFL, Fast Ethernet 100BaseTX and 100BaseFX, Token Ring, Fiber Distributed Data Interface (FDDI), High-Speed Serial Interface (HSSI), and synchronous serial media. These interfaces are contained on modular port adapters and service adapters for the Cisco 7200 series and for the Second-Generation Versatile Interface Processor (VIP2). The VIP2 can be used in Cisco 7500 series routers and in Cisco 7000 series routers using the 7000 Series Route Switch Processor (RSP7000) and 7000 Series Chassis Interface (RSP7000CI). The port adapters and service adapters connect Cisco's high-speed bus (or buses) to external networks.
The Cisco 7200 series routers support multiprotocol, multimedia routing and bridging with a wide variety of protocols and any combination of ATM, ATM-Circuit Emulation Services (ATM-CES), Ethernet 10BaseT and 10BaseFL, Fast Ethernet 100BaseTX and 100BaseFX, Token Ring, FDDI, HSSI, ISDN PRI and BRI, and synchronous serial media. Network interfaces reside on port and service adapters that provide a connection between the routers' Peripheral Component Interconnect (PCI) buses and external networks. Port and service adapters can be placed in any available port adapter slot, in any desired combination.
The Ethernet 10BaseT port adapters provide IEEE 802.3 Ethernet 10BaseT interfaces. Each interface allows a maximum bandwidth of 10 Mbps, for a maximum aggregate bandwidth of 40 Mbps. All ports run at line (wire) speed. The Ethernet 10BaseT port adapters are available for Cisco 7500 series, Cisco 7000 series, and Cisco 7200 series routers.
Two models of the Ethernet 10BaseT port adapter are available:
Figure 7-28 shows the 4-port 10BaseT port adapter, and Figure 7-29 shows the 8-port 10BaseT port adapter.
Figure 7-30 shows the Ethernet 10BaseFL port adapter (PA-5EFL).
The Fast Ethernet port adapters provide a 100-Mbps, 100BaseT Fast Ethernet interface. Both full-duplex and half-duplex operation are supported for the Fast Ethernet port adapters. The Fast Ethernet port adapters are available for Cisco 7500 series, Cisco 7000 series, and Cisco 7200 series routers.
There are two models of the Fast Ethernet 100BaseT port adapters:
Figure 7-31 shows the Fast Ethernet 100BaseTX port adapter, and Figure 7-32 shows the Fast Ethernet 100BaseFX port adapter.
The 12E/2FE port adapter provides twelve 10-Mbps and two 10/100-Mbps switched Ethernet (10BASE-T) and Fast Ethernet (100BASE-TX) interfaces for an aggregate bandwidth of 435 Mbps, full-duplex. The 12E/2FE port adapter is available for the Cisco 7200 series routers.
The half-duplex FDDI port adapters provide a half-duplex interface for both single-mode and multimode fiber-optic cable. The two physical ports (PHY A and PHY B) are available with either single-mode (SC) or multimode (MIC) receptacles. Each port adapter's FDDI connection allows a maximum bandwidth of 100 Mbps per the FDDI standard. Both FDDI port adapters provide half-duplex operation only and optical bypass switching capability. The half-duplex FDDI port adapters are available for Cisco 7500 series, Cisco 7000 series, and Cisco 7200 series routers.
Two models of the FDDI port adapters are available:
Figure 7-33 shows the half-duplex FDDI multimode port adapter, and Figure 7-34 shows the half-duplex FDDI single-mode port adapter.
The full-duplex FDDI port adapters provide a fiber-optic interface. The two physical ports (PHY A and PHY B) are available with either single-mode (SC) or multimode MIC receptacles. Each port adapter's FDDI connection allows a maximum bandwidth of 100 Mbps, per the FDDI standard for half-duplex operation, and 200 Mbps aggregate bandwidth with full-duplex operation enabled. Both FDDI port adapters provide optical bypass switching capability. The full-duplex FDDI port adapters are available for Cisco 7500 series, Cisco 7000 series, and Cisco 7200 series routers.
Two models of the FDDI port adapters are available:
Figure 7-35 shows the full-duplex FDDI multimode port adapter, and Figure 7-36 shows the full-duplex FDDI single-mode port adapter.
The Token Ring port adapters provide IBM Token Ring or IEEE 802.5 Token Ring interfaces. Each Token Ring interface can be set for 4 Mbps or 16 Mbps. All Token Ring ports run at line (wire) speed. The Token Ring port adapters are available for Cisco 7500 series, Cisco 7000 series, and Cisco 7200 series routers.
Two models of the Token Ring port adapters are available:
Figure 7-37 shows the Token Ring half-duplex port adapter, and Figure 7-38 shows the Token Ring full-duplex port adapter.
Figure 7-39 shows the 100VG-AnyLAN port adapter (PA-100VG).
The PA-4T+ enhanced 4-port synchronous serial port adapter provides up to four of the following electrical interfaces: EIA/TIA-232, EIA/TIA-449, EIA-530. X.21, and V.35. Each interface complies with its specific interface specifications. The cable attached to each synchronous serial port adapter's interface ports determines its type (EIA/TIA-232, and so forth) and its mode (DCE or DTE). The enhanced 4-port synchronous serial port adapters are available for Cisco 7500 series, Cisco 7000 series, and Cisco 7200 series routers.
Figure 7-40 shows the enhanced synchronous serial port adapter.
Figure 7-41 shows the synchronous serial V.35 port adapter (PA-8T-V35).
Figure 7-42 shows the synchronous serial X.21 port adapter (PA-8T-X21).
Figure 7-43 shows the synchronous serial EIA/TIA-232 port adapter (PA-8T-232).
The synchronous serial E1-G.703/G.704 port adapters provide up to four synchronous serial interfaces, which are compatible with the International Telecommunication Union Telecommunication Standardization Sector (ITU-T) G.703/G.704 specifications. These interfaces provide framed and unframed service access, 2.048-Mbps line speeds, and operate over E1 leased line services. All four ports run at line (wire) speed. The synchronous serial port adapters are available for Cisco 7500 series, Cisco 7000 series, and Cisco 7200 series routers.
Two models of the synchronous serial port adapters are available:
Figure 7-44 shows the synchronous serial E1-G.703/G.704, unbalanced 75-ohm port adapter, and Figure 7-45 shows the synchronous serial E1-G.703/G.704, balanced 120-ohm port adapter.
The HSSI port adapters provide up to two EIA/TIA 612/613, high-speed serial interfaces. HSSI, which was recently standardized as EIA/TIA 612/613, provides access to services at T3 (45 Mbps), E3 (34 Mbps), and Synchronous Optical Network (SONET) STS-1 (51.82 Mbps) rates. The HSSI port adapters are available for Cisco 7500 series, Cisco 7000 series, and Cisco 7200 series routers.
Two models of the HSSI port adapters are available:
Figure 7-46 shows the 1-port HSSI port adapter, and Figure 7-47 shows the 2-port HSSI port adapter.
The PA-E3 serial port adapter is a single-width, single-port module that integrates data service unit (DSU) functionality into the Cisco router. It provides a high-speed serial E3 interface on Cisco 7200 series routers, and on the second-generation Versatile Interface processor (VIP2) in all Cisco 7500 series routers.
The PA-E3 serial port adapter provides two network interfaces for Cisco 7500 series routers and a high-speed interface on the Cisco 7200 series routers. It supports both 16- and 32-bit cyclic redundancy checks (CRCs).
Figure 7-48 shows the PA-E3 serial port adapter.
The PA-E3 and PA-2E3 one- and two-port E3 port adapters provide direct connectivity to E3 lines for full duplex communications at the E3 rate of 34.368 MHz. With integrated line interface units (DSUs) that allow E3 lines to be directly terminated on a Cisco router, these interface adapters simplify line management, reduce provisioning cost, and free up valuable rack space for Internet service providers and enterprise WAN connections.
These products feature interoperability with DS3 DSUs from major vendors including Digital Link and Kentrox.
The PA-T3 and PA-2T3 one- and two-port T3 port adapters provide direct connectivity to T3 lines for full duplex communications at the DS3 rate of 44.736 MHz. With integrated line interface units (DSUs) that allow DS3 lines to be directly terminated on a Cisco router, these interface adapters simplify line management, reduce provisioning cost, and free up valuable rack space for Internet service providers and enterprise WAN connections.
These products feature interoperability with DS3 DSUs from major vendors including Digital Link, Larscom, and Kentrox.
Figure 7-49 shows the channelized T1/ISDN PRI port adapter (PA-2CT1/PRI).
The channelized E1/ISDN PRI port adapters provide up to two channelized E1 or ISDN PRI interfaces. Each interface can transmit and receive data bidirectionally at the E1 rate of 2.048 Mbps. The channelized E1/ISDN PRI port adapters are available for Cisco 7500 series, Cisco 7000 series, and Cisco 7200 series routers.
Two models of the channelized E1/ISDN PRI port adapter are available:
Figure 7-50 shows the channelized E1/ISDN PRI unbalanced 75-ohm port adapter, and Figure 7-51 shows the channelized E1/ISDN PRI balanced 120-ohm port adapter.
The ISDN BRI port adapters provide ISDN BRI interfaces for connecting Cisco 7200 series routers to an ISDN wide-area network through an NT1 device. Each interface consists of two B channels that can transmit and receive data at the rate of 64 kbps, full-duplex, and one D channel that can transmit and receive data at the rate of 16 kbps, full-duplex.
Two models of the ISDN BRI port adapter are available:
Figure 7-52 shows the 4-port ISDN BRI port adapter, and Figure 7-53 shows the 8-port ISDN BRI port adapter.
The PA-CE3 is a next generation solution that builds on Cisco's experience with channelized DS3 and supports high density clear channel and channelized E1 connections terminated via a single E3 G.703 connection. With the flexibility to provision E1, fractional E1, and Nx64K connections the PA-CE3 reduces the management complexity of supporting large numbers of leased line connections.
The PA-CT3/4T1 for the Cisco 7200 family routers supports 28 separate T1 serial interfaces on a single DS3 interface, extending high density and cost effective T1 leased line aggregation to the 7200 platform. Functionality of the PA-CT3/41 port adapter is identical to the CT3IP-xx series channelized DS3 interface processors. The PA-CT3/4T1 meets a price/performance ratio ideal for T1 aggregation in regional ISP and enterprise data center applications.
The ATM Port Adapters are single-port (SC duplex connectors), OC-3c/STM1 (155 Mbps) ATM port adapters for the Cisco 7500 series, Cisco 7000 series, and Cisco 7200 series routers. The ATM Port Adapters are intended for campus, private network, and intra-POP ATM applications with fiber cable lengths up to 2 km (multimode) or 15 km (singlemode).
Cisco IOS Release 11.1(9) CA1 is required for the ATM Port Adapters.
Two models of the ATM PA are available:

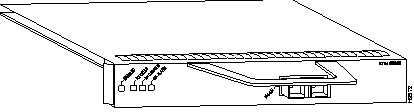

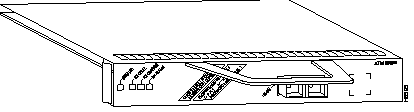

Figure 7-54 shows the ATM OC3/STM1single-mode intermediate reach port adapter, and Figure 7-55 shows the ATM OC3/STM1multimode port adapter.
The ATM Circuit Emulation Services Port Adapters (ATM CES PA) are dual-wide port adapters with four T1 (1.54 Mbps) or four E1 (2.048 Mbps) CES interfaces, and a single OC-3 (155 Mbps) single-mode intermediate reach or a T3 (45 Mbps) or E3 (34 Mbps) standards-based ATM interface for the Cisco 7200 series routers. The CES interfaces can support both structured (Nx64 kbps) and unstructured T1 or E1circuits. The ATM CES PAs are ATM access concentrators on a card and provide aggregation of packet (data) and circuit (voice and video) traffic onto a single ATM WAN link. Cisco IOS Release 11.1(14)CA is required for the ATM CES PA.
Four models of the ATM CES PA are available:

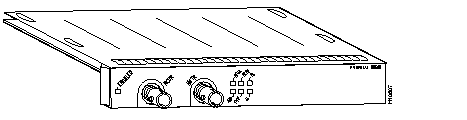

The following figures show the four port adapter variations.
The compression service adapters provide high-performance, hardware-based data compression capabilities. These service adapters off-load all compression- and decompression-related packet handling from host processors. To accomplish this, the compression service adapters compress and decompress packets passing through synchronous serial port adapters configured for a peak line rate of 16 Mbps or lower. The compression service adapters are available for Cisco 7500 series, Cisco 7000 series (equipped with the RSP7000), and Cisco 7200 series routers.
Two models of the compression service adapter are available:
Figure 7-60 shows the compression port adapter with a 786-KB configuration and 64 WAN links, and Figure 7-61 shows the compression port adapter with 3-MB compression and 256 WAN links.
The encryption service adapter (ESA) provides high-performance, hardware-based data encryption capabilities. This service adapter off-loads all encryption-related packet handling from host processors. The ESA operates with most port adapters on Cisco 7500 systems including 4E, 8E, 5EFL, 4R, FDDI, FDDI FDX, 100VG, 4T+, 8T, HSSI, and CT1/CE1 (does not support PRI) and supports PPP, Frame Relay, and HDLC WAN encapsulations. The ESA supports all port adapters and WAN encapsulations on the Cisco 7200.
Table 7-52 lists the port adapter and service adapter product numbers for the Cisco 7000 family.
| Description | Product Number |
|---|---|
| 1 ATM (OC-3 rate) single-mode intermediate reach, single-width port | PA-A1-OC3SM |
| 1 ATM (OC-3 rate) multimode, single-width port | PA-A1-OC3MM |
| 4 T1 (1.54 Mbps) ports and 1 OC-3 (155 Mbps) single-mode intermediate reach port, ATM-CES port adapter | PA-A2-4T1C-OC3SM |
| 4 T1 (1.54 Mbps) ports and 1 DS-3 (45 Mbps) standards-based ATM interface port, ATM-CES port adapter | PA-A2-4T1C-T3ATM |
| 100-Mbps AnyLAN (voice grade) | PA-100VG |
| 4-port ISDN BRI port adapter for the Cisco 7200 with ISDN services using the "U" interface | PA-4B-U |
| 8-port ISDN BRI port adapter for the Cisco 7200 with ISDN services using the "S/T" interface | PA-8B-S/T |
| 2-port ISDN PRI and channelized T1 serial port adapter | PA-2CT1/PRI |
| 2-port ISDN PRI and channelized E1 serial port adapter, 75 ohms, unbalanced | PA-2CE1/PRI-75 |
| 2-port ISDN PRI and channelized E1 serial port adapter, 120 ohms, balanced | PA-2CE1/PRI-120 |
| 4 Ethernet 10BaseT ports | PA-4E |
| 8 Ethernet 10BaseT ports | PA-8E |
| 5 Ethernet 10BaseFL ports | PA-5EFL |
| 1 Fast Ethernet 100BaseTX port | PA-FE-TX |
| 1 Fast Ethernet 100BaseFX port | PA-FE-FX |
| 4 synchronous serial ports supporting EIA/TIA-232, EIA/TIA-449, EIA-530, X.21, and V.35, enhanced version | PA-4T+ |
| 8 synchronous serial ports supporting V.35 | PA-8T-V35 |
| 8 synchronous serial ports supporting X.21 | PA-8T-X21 |
| 8 synchronous serial ports supporting EIA/TIA-232 | PA-8T-232 |
| 4 synchronous serial ports supporting E1-G.703/G.704, 2.048 Mbps, 120 ohms, balanced | PA-4E1G-120 |
| 4 synchronous serial ports supporting E1-G.703/G.704, 2.048 Mbps, 75 ohms, unbalanced | PA-4E1G-75 |
| 4 Token Ring ports, half-duplex | PA-4R |
| 4 Token Ring ports, full-duplex | PA-4R-FDX |
| 1 half-duplex FDDI multimode | PA-F-MM |
| 1 half-duplex FDDI single-mode | PA-F-SM |
| 1 full-duplex FDDI multimode | PA-F/FD-MM |
| 1 full-duplex FDDI single-mode | PA-F/FD-SM |
| 1 HSSI port | PA-H |
| 2 HSSI ports | PA-2H |
| One port clear channel E3 port adapter | PA-E3 |
| Two port clear channel E3 port adapter | PA-2E3 |
| One port clear channel DS3 port adapter | PA-T3 |
| Two port clear channel DS3 port adapter | PA-2T3 |
| Channelized DS3 port adapter with 4 T1 ports | PA-CT3/4t1 |
| Multi-level Channelized E3 port adapter | PA-CE3 |
| Compression service adapter supporting 64 WAN links, 786-KB configuration | SA-Comp/1 |
| Compression service adapter supporting 256 WAN links, 3-MB configuration | SA-Comp/4 |
| Encryption Service Adapter | SA-Encrypt |
Table 7-53 lists port adapter and service adapter cables and provides product numbers. For more information about these cables, refer to the "Cables and Transceivers" chapter later in the catalog.
| Port Adapter or Service Adapter | Cable Description | Product Number |
|---|---|---|
| PA-H and PA-2H | Null modem, DTE, HSSI, 10 ft
Male to male, 10 ft | CAB-HNUL=
CAB-HSI1= |
| PA-4T+ | X.21 high-density male DTE
X.21 high-density female DCE EIA/TIA-449 high-density male DTE EIA/TIA-449 high-density female DCE V.35 high-density male DTE V.35 high-density female DCE EIA/TIA-232 high-density male DTE EIA/TIA-232 high-density female DCE EIA-530 high-density male DTE | CAB-X21MT
CAB-X21FC CAB-449MT CAB-449FC CAB-V35MT CAB-V35FC CAB-232MT CAB-232FC CAB-530MT |
| PA-8T-V351 | V.35 compact serial male DTE
V.35 compact serial female DCE | CAB-OCT-V35-MT
CAB-OCT-V35-FC |
| PA-8T-X211 | X.21 compact serial male DTE
X.21 compact serial female DCE | CAB-OCT-X21-MT
CAB-OCT-X21-FC |
| PA-8T-2321 | EIA/TIA-232 compact serial male DTE
EIA/TIA-232 compact serial female DCE | CAB-OCT-232-MT
CAB-OCT-232-FC |
|
|
