Overview of Cisco 700 Series Routers
The Cisco 700 series routers connect Ethernet LANs to corporate networks over Integrated Services Digital Network (ISDN) Basic Rate Interface (BRI) lines. The Cisco 700 series routers offer multiprotocol routing capability between WAN and LAN ports, as well as the ability to function as a transparent bridge.
The Cisco 700 series router is available in five models. Table 1-1 lists the model numbers and the WAN and LAN interfaces available on each model.
Table 1-1 : Cisco 700 Series Router Models
| Model | Interfaces |
|---|---|
| Cisco 751 | 1 Ethernet and 1 ISDN BRI S/T |
| Cisco 752 | 1 Ethernet, 1 ISDN BRI U, and 1 ISDN BRI S/T |
| Cisco 753 | 1 Ethernet, 1 ISDN BRI U, 1 ISDN BRI S/T, and 1 analog telephone |
| Cisco 761 | 1 Ethernet and 1 ISDN BRI S/T |
| Cisco 762 | 1 Ethernet, 1 ISDN BRI U, and 1 ISDN BRI S/T |
| Cisco 765 | 1 Ethernet, 1 ISDN BRI S/T, and 2 analog telephone |
| Cisco 766 | 1 Ethernet, 1 ISDN BRI U, 1 ISDN BRI S/T, and 2 analog telephone |
This section contains information about the Cisco 700 series features, including the available ports.
The Cisco 700 series routers connect to remote devices across ISDN BRI lines by dynamically initiating and terminating ISDN connections based on several factors, including the level of the traffic on the Ethernet LAN, dynamic routing parameters, and static routing parameters. This feature is called dial-on-demand routing (DDR).
The Cisco 700 series routers support data compression using the compression algorithm QIC-122 standard, Stacker LZS. Data compression is a software configuration option that optimizes the ISDN line bandwidth. Packets are compressed before being sent onto the ISDN line. After they arrive at their destination, the packets are decompressed and sent onto the remote LAN.
Table 1-2 lists the Cisco 700 series hardware features.
Table 1-2 : Cisco 700 Series Hardware Features
| Router Model | Feature |
|---|---|
| All models | 1 MB of primary memory using DRAM1 |
| Cisco 760 routers | 464 KB of Flash memory |
| Cisco 750 routers | 256 KB of Flash memory |
| Cisco 760 routers | 8 KB of NVRAM2 to store configurations |
| Cisco 750 routers | 2 KB of NVRAM to store configurations |
| All models | 1 RJ-45 10BaseT port for connection to a 10BaseT Ethernet network |
| Cisco 750 routers | 1 BNC 10Base2 port for connection to a 10Base2 Ethernet network |
| Cisco 760 routers | 1 DB-15 AUI port for connection to an Ethernet network using an external transceiver |
| All models | 1 RJ-45 ISDN BRI port for connection to an ISDN line |
| Cisco 752Cisco 753Cisco 762Cisco 766 | A second RJ-45 ISDN BRI port for an optional connection to an ISDN device, such as a telephone or fax |
| Cisco 753Cisco 765Cisco 766 | 1 or 2 RJ-11 analog telephone ports for connection to an analog device, such as a telephone, modem, or fax |
| All models | 1 DB-9 config port for connection to a terminal or PC |
Figure 1-1 and Figure 1-2 show the front panels of the Cisco 750 series and Cisco 760 series routers.

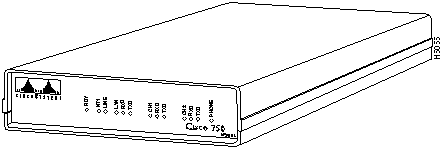

Figure 1-1 : Front Panel, Cisco 750 Series Router (Cisco 753 Shown)

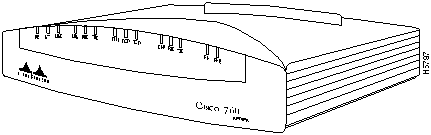

Figure 1-2 : Front Panel, Cisco 760 Series Router (Cisco 766 Shown)
The Cisco 700 series routers offer the following features:
Cisco 700 series routers provide the following security features:
The Cisco 700 series routers support Simple Network Management Protocol (SNMP).
The Cisco 700 series routers support the following SNMP community names:
These community names are read-only and cannot be changed. The Cisco 700 series routers do not support SNMP set commands.
The Cisco 700 series routers support the following SNMP Management Information Bases (MIBs):
MIB II
The Cisco 700 series routers support MIB II standards as follows:
802.1d Bridge MIB
The Cisco 700 series routers support 802.1d MIB standards as follows:
The Cisco 700 series routers support the following Request For Comments (RFCs) documents:
The system specifications for the Cisco 700 series routers are listed in Table 1-3.
Table 1-3 : System Specifications---Cisco 700 Series Routers
| Description | Design Specification |
|---|---|
| Dimensions (H x W x D) | Cisco 751 and Cisco 752:1.5 x 6.2 x 9.5" (3.8 x 15.8 x 24.1 cm) Cisco 753:1.5 x 7.5 x 9.5" (3.8 x 19.1 x 24.1 cm) Cisco 760 series:1.6 x 8.3 x 9.6" (4.1 x 21.1 x 24.4 cm) |
| Weight | Cisco 751: 1.4 lb. (0.6 kg)Cisco 752: 1.4 lb. (0.6 kg)Cisco 753: 1.5 lb. (0.7 kg)Cisco 761: 1.4 lb. (0.6 kg)Cisco 762: 1.5 lb. (0.7 kg)Cisco 765: 1.6 lb. (0.7 kg)Cisco 766: 1.7 lb. (0.8 kg) |
| Power supply (external) Voltage Frequency |
Wall-mounted (Cisco 751 and Cisco 752)Desktop-mounted (Cisco 753 and Cisco 760 series) 100--120/220--240 VAC (Cisco 751 and Cisco 752)100--250 VAC (Cisco 753 and Cisco 760 series) 50--60 Hz |
| Processor | 16-MHz 80186 (Cisco 750 series)25-MHz 80386 (Cisco 760 series) |
| Memory | 1 MB of primary memory256 KB of Flash memory (Cisco 750 series)464 KB of Flash memory (Cisco 760 series)2 KB of NVRAM (Cisco 750 series)8 KB of NVRAM (Cisco 760 series) |
| Networkinterface options | Cisco 751: 1 Ethernet, 1 BRI S/T Cisco 752: 1 Ethernet, 1 BRI S/T, 1 BRI U Cisco 753: 1 Ethernet, 1 BRI S/T, 1BRI U, 1 analog telephoneCisco 761: 1 Ethernet, 1 BRI S/TCisco 762: 1 Ethernet, 1 BRI S/T, 1 BRI UCisco 765: 1 Ethernet, 1 BRI S/T, 2 analog telephoneCisco 766: 1 Ethernet, 1 BRI S/T, 1 BRI U, 2 analog telephone |
| Ethernet interfaces | Ethernet 10BaseT---RJ-45Ethernet 10Base2---BNCEthernet AUI---DB-15 |
| ISDN BRI interface | ISDN S/T---RJ-45ISDN U---RJ-45 |
| Analog telephoneinterface | RJ-11 |
| Configuration port | DB-9F (9-pin female) |
| Operating temperature | 32--120°F (0--50°C) |
| Storage temperature | -30--160°F (-35--70°C) |
| Operating humidity | 20--95%, noncondensing |
| Regulatory compliance | This product conforms to FCC Class B requirements and other compliance as outlined in the Cisco 750 Series and Cisco 760 Series Public Network Certification document that shipped with your system. |
