Table 1-1 lists the router models discussed in this publication and provides a summary of the interfaces supported on each model. These router models are similar in functionality, but differ in the number of interfaces supported.
| Model | Ethernet AUI1 (DB-15) | Token Ring (DB-9) | Serial (DB-60) | ISDN2 BRI3 (RJ-45) |
|---|---|---|---|---|
| Cisco 2501/
CPA2501 |
1 | -- | 2 | -- |
| Cisco 2502/
CPA2502 |
-- | 1 | 2 | -- |
| Cisco 2503/
CPA2503 |
1 | -- | 2 | 1 |
| Cisco 2504/
CPA2504 |
-- | 1 | 2 | 1 |
| Cisco 2513/
CPA2513 |
1 | 1 | 2 | -- |
| Cisco 2514/
CPA2514 |
2 | -- | 2 | -- |
| Cisco 25154 | -- | 2 | 2 | -- |
In addition to the interfaces listed in Table 1-1, the routers include the following hardware features:
Figure 1-1 to Figure 1-7 show the rear panels of the router models discussed in this publication.

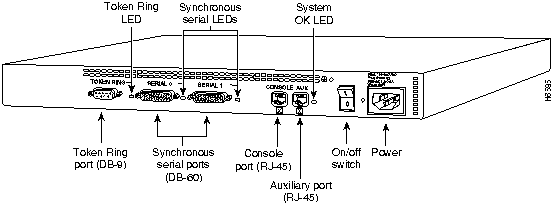

Figure 1-1 : Model 2501 Router Rear Panel

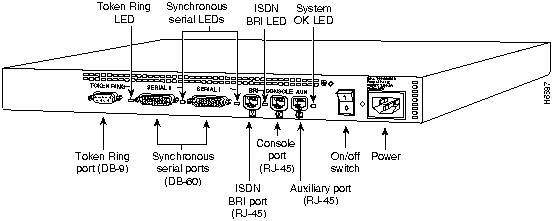

Figure 1-2 : Model 2502 Router Rear Panel

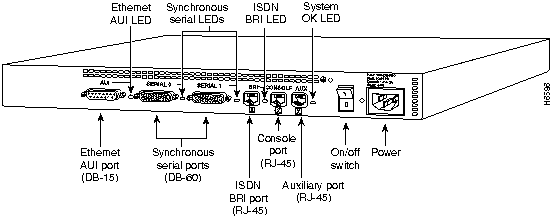

Figure 1-3 : Model 2503 Router Rear Panel

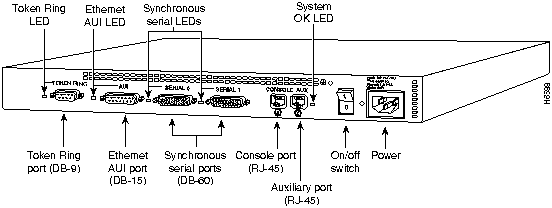

Figure 1-4 : Model 2504 Router Rear Panel
Figure 1-5 : Model 2513 Router Rear Panel

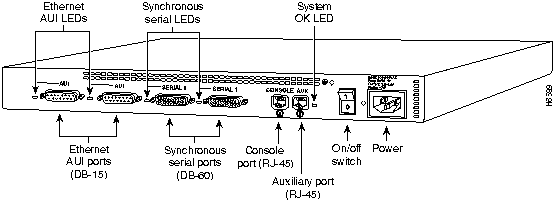

Figure 1-6 : Model 2514 Router Rear Panel

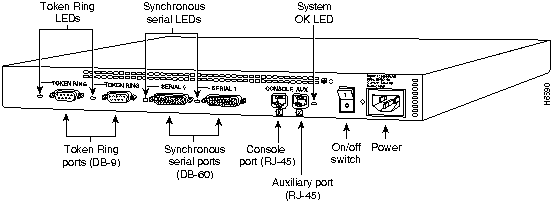

Figure 1-7 : Model 2515 Router Rear Panel
The system specifications of the routers are listed in Table 1-2.
| Description | Specification |
|---|---|
| Dimensions (H x W x D) | 1.75 x 17.5 x 10.56 in. (4.44 x 44.45 x 26.82 cm),
one rack unit |
| Weight | 10 lb (4.5 kg) |
| Input voltage, AC power supply
Current Frequency Power dissipation |
100 to 240 VAC
1.2 to 0.6A 50/60 Hz 40W (maximum), 135.5 Btus1/hr |
| Input voltage, DC power supply
Current Power dissipation |
40W, 40 to 72 VDC
1.5 to 1.0A 40W (maximum), 135.5 Btus/hr |
| Processor | 20-MHz Motorola 68EC030 |
| Interfaces | See Table 1-1 for a list of interfaces supported on each router model.
|
| Operating environment | 32 to 104°F (0 to 40°C) |
| Nonoperating temperature | --40 to 185°F (--40 to 85°C) |
| Operating humidity | 5 to 95%, noncondensing |
| Noise level | 34 dBa @ 3 ft (0.914 m) |
| Regulatory compliance | FCC Class A and Canadian DOC Class A
For more regulatory information, refer to the Regulatory Compliance and Safety Information document that accompanied your router. |
