This appendix contains information on the CiscoWorks database table structures.

CiscoWorks Database Tables

This section contains a chart depicting the relationship between the major tables in the CiscoWorks database and provides table structure characteristics.

Table C-1 lists the conventions used in defining fields.

Table C-1 Database Field Conventions

Convention	Description
Int	A whole number between 231 -1 (2,147,483,647) and -231 (-2,147,483,648) inclusive. Storage size is 4 bytes.
Smallint	A whole number between 215 -1 (32,767) and -215 (-32,768) inclusive. Storage size is 2 bytes.
Tinyint	A whole number between 0 and 255 inclusive. Storage size is 1 byte.
NULL	A field that does not have to be filled. The word NULL does not have to be entered, the field may be left blank if no data is to be entered.

Table-to-table links throughout the database structure are accomplished using id fields. Examples are: "device_id," "people_id," "admin_id," and so on.

Device Inventory Database Tables

Device inventory consists of all the information that you can associate with a specific device, including contact, address, phone, and vendor data.

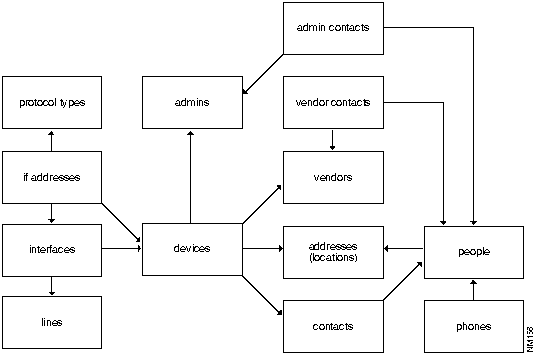

Figure C-1 illustrates CiscoWorks database table interrelationships for device inventory.

Figure C-1 Device Inventory Database Tables Relationships

Tables C-2 through C-11 are used for device inventory. These tables include the table name, field names, field size, and field type found in the database table.

Table C-2 Admins Table File Structure

Table Name	Field Name	Field Size	Field Type
Admins	admin_id	Smallint
	admin_name	32 Character
	admin_desc	64 Character	Null

Table C-3 Devices Table File Structure

Table Name	Field Name	Field Size	Field Type
Devices	device_id	Int
	device_type	Smallint	Null
	device_name	32 Character
	device_domain	255 Character
	device_desc
	community
	admin_id	Smallint
	serial_number	32 Character	Null
	vendor_id	Smallint
	address_id	Smallint
	location	64 Character	Null
	software_desc	32 Character	Null
	software_ver	16 Character	Null
	hardware_desc	32 Character	Null
	hardware_ver	16 Character	Null
	loaded_conf	Int
	conf_load_time	Int
	conf_loader	64 Character
Interfaces	interface_id	Tinyint
	device_id	Int
	interface_type	Smallint	Null
	interface_name	32 Character
	interface_desc	64 Character	Null
	hardware_addr	64 Character	Null
	hardware_ver	16 Character	Null
	line_id	Int
If Addresses	device_id	Int
	interface_id	Tinyint
	protocol_id	Smallint
	protocol_type	Smallint
	protocol_addr	64 Character

Table C-4 Contacts Table File Structure

Table Name	Field Name	Field Size	Field Type
Contacts	device_id	Int
	people_id	Smallint

Table C-5 Lines Table File Structure

Table Name	Field Name	Field Size	Field Type
Lines	line_id	Int
	line_group_id	Int
	line_type	Smallint	Null
	line_desc	16 Character	Null

Table C-6 Locations Table File Structure

Table Name	Field Name	Field Size	Field Type
Locations	address_id	Smallint
	location	64 Character
	street	32 Character	Null
	street_two	32 Character	Null
	city	16 Character	Null
	state	2 Character	Null
	country	16 Character	Null
	zip_code	16 Character	Null

Table C-7 Networks Table File Structure

Table Name	Field Name	Field Size	Field Type
Networks	network_id	Smallint
	network_name	32 Character
	admin_id	Smallint

Table C-8 People Table File Structure

Table Name	Field Name	Field Size	Field Type
People	people_id	Smallint
	address_id	Smallint
	last_name	16 Character
	first_name	16 Character
	middle_name	16 Character	Null
	phone_number	16 Character	Null
	email_addr	64 Character	Null
	title	32 Character	Null
	nic_id	8 Character	Null

Table C-9 Phones Table File Structure

Table Name	Field Name	Field Size	Field Type
Phones	people_id	Int	Null
	phone_desc	Int	Null
	phone_number	Smallint	Null
	phone_id	64 Character	Null

Table C-10 Protocol Types Table File Structure

Table Name	Field Name	Field Size	Field Type
Protocol Types	protocol_type	Smallint
	type_desc	64 Character

Table C-11 Vendor Table File Structure

Table Name	Field Name	Field Size	Field Type
Vendor	vendor_id	Smallint
	vendor_name	32 Character
	street	32 Character	Null
	street_two	32 Character	Null
	city	16 Character	Null
	state	16 Character	Null
	country	16 Character	Null
	zip_code	16 Character	Null

Polling Database Tables

Device polling consists of all the information that you want to gather from a device based on how you have set up your poll groups.

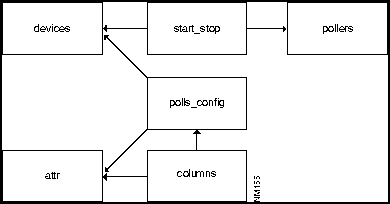

Figure C-2 illustrates CiscoWorks database table interrelationships in device polling.

Figure C-2 Device Polling Database Tables Relationships

The following database tables are used during device polling and described in the tables below.

• Polls_config


• Start_stop


• Pollers


• Attr


• Columns


  ---

Tables C-12 through C-16 are used for polling. These tables include the table name, field names, field size, and field type found in the database table.

Table C-12 Attr Table File Structure

Table Name	Field Name	Field Size	Field Type
Attr	attr_id	Int
	snm_name	Varchar
	ncs_name	Varchar	Null
	object_id	Varchar	Null
	iftable	Int	Null

Table C-13 Columns Table File Structure

Table Name	Field Name	Field Size	Field Type
Columns	poll_id	Smallint
	column_name	Varchar
	attr_id	Int
	datatype	Smallint

Table C-14 Pollers Table File Structure

Table Name	Field Name	Field Size	Field Type
Pollers	poller_host	15 Character
	poller_id	Int
	pid	Int

Table C-15 Polls_config Table File Structure

Table Name	Field Name	Field Size	Field Type
Polls Config	poll_id	Int
	poller_id	Varchar
	device_id	Int
	attr_id	Int	Null
	inst	Varchar	Null

Table C-16 Start_Stop Table File Structure

Table Name	Field Name	Field Size	Field Type
Start_Stop	table_name	30 Character
	poller_id	Varchar
	type	Tinyint
	clock_time	Datetime
	device_id	Int

Device Configuration Database Tables

Device configuration consists of all the information that you want to gather from a device during device configuration.

Table C-17 is used for configuration polling. These tables include the table name, field names, field size, and field type found in the database table.

Table C-17 Device Configuration Table File Structure

Table Name	Field Name	Field Size	Field Type
Device Config	conf_id	Int
	creator	64 Character
	time_created	Int
	conf_stat	2 Character
	user_image	Text	Null
	machine_image	Text	Null
	comments	Text	Null
Location	device_id	Int
	host_name	254 Character
	file_name	254 Character
History	device_id	Int
	conf_id	Int
	conf_ver	Int
	software_ver	16 Character
