CDDI/FDDI Workgroup WS-C1100 Concentrator
Release Note

Caveats of Release 3.3

This section covers the caveats and known issues for Release 3.3:

• During peak times of IP Broadcast use on the FDDI ring, the response time of the Telnet session to the concentrator might be slow.


• When the IP address of a concentrator is changed from one class to another, the old IP Broadcast address is retained. You must explicitly set the new IP address by using the following command:


Console> set ipaddress

The linkUp and linkDown traps are generated by the concentrator when a physical connection to a port goes up or down. By default, this is enabled on all ports.

• Changing the subnet mask for an IP address dynamically might leave old entries in the routing table. To clear the old entries from the routing table, reset the concentrator, as in the following example:


Console> set ipaddress 172.20.21.201 255.255.0.0 172.20.255.255

Resolved Issues and New Features for Release 3.2

This section describes the issues that were resolved and the features that were added during this revision of the Workgroup WSC1100 Concentrator software:

1. This release supports RFC 1573. For more information, refer to the Evolution of the Interfaces Group of MIB-II.


2. You should update to the latest version of the Cisco-stack MIB.
   You can obtain a copy of the Cisco MIB file in two ways:


   • Use File Transfer Protocol (FTP) to access the cisco.com server.


   • Use CIO to access the cisco.com server.


Using FTP to ACCESS the MIB File

You can obtain the file cisco-stack.mib describing the Cisco MIB with the following procedure:

Step 1 Use FTP to access the server ftp.cisco.com.

Step 2 Log in with the username anonymous.

Step 3 Enter your e-mail name when prompted for the password.

Step 4 At the ftp> prompt change directories to /pub/MIBs/xx. Where xx is v1 for SNMPv1 MIBs, v2 for SNMPv2 MIBs, schema for SNM schema files, oid for object ID files, and traps for trap files.

Step 5 Use the get README command to display the readme file containing a list of available files.

Step 6 Use the get cisco-stack.mib.my command to obtain a copy of the MIB file.

Using CIO to Access the MIB File

You can obtain the file cisco-stack.mib describing the Cisco MIB through CIO.

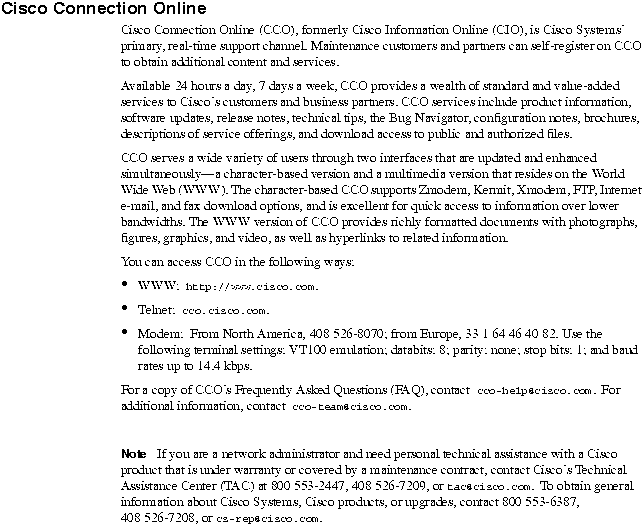

For information on using CIO, refer to the "Cisco Information Online" section in this document.

1. Passwords in the configuration file allow two-level password protection. The login and enable password modes are normal and privileged, respectively.


2. The set unreachable <enable | disable> command was added to support the ability of the concentrator to send ICMP unreachable messages. The default is disable.


To enable this command use the following command:

Console> (enable) set unreachable enable
ICMP Unreachables enabled

To view the status of the ICMP unreachables, use the following command:

Console> (enable) show snmp

1. The following is a list of the new traps added to this release.


enterprise 1.3.6.1.4.1.9.5
1 lerAlarmOn
2 lerAlarmOff
3 chassisAlarmOn
4 chassisAlarmOff
5 linkUp
6 linkDowm

To receive traps on an SNMP management station, follow these steps:

Step 1 Configure an IP address to the concentrator using the following command:

Console> (enable) set ipaddress
Usage: set ipaddress <ip_addr> [net_mask [broadcast_addr]]
(all values given in IP dot notation: a.b.c.d)

Step 2 Use the ping utility to verify that you can reach the SNMP management station. If the SNMP management station is on a different network, set a default gateway for the concentrator using the following command:

Console> (enable) set route default < ip_addr >

Step 3 Enable the trap on the concentrator using the following command:

Console> (enable) set trap enable
SNMP authentication traps enabled

Step 4 Set the trap receiver address with the proper community string using the following command:

Console> set trap <ip_addr> <community string>
SNMP trap receiver added

SNMP trap receiver added

To view the status of the SNMP configuration, use the following command:

Console> show snmp

The following is an example of the output:

Console (enable) show snmp

IP_Address  IP-Netmask  IP-Broadcast
------------------  ------------------  ---------------
199.133.219.163  255.255.255.0  199.133.219.255

ICMP-Redirects  ICMP-Unreachables  DefaultTTL  Traps Enabled
------------------  ------------------  ---------------  -------------
enabled  enabled  60  None

Community-Access  Community-String
------------------  ------------------
none
read-only  public
read-write  private
read-write-all  secret

Trap-Rec-Address  Trap-Rec-Community
------------------  -------------------
199.133.219.161  Public

1. The display for the show port command has changed to the following:


Port  Name                 Status     Req-Path  Cur-Path  Conn-State Type Neigh
----  -------------------- ---------- --------- --------- ---------- ---- -----
1                          notconnect secondary isolated  connecting  A    U
2                          connected  primary   concat    active      B    M
3                          notconnect primary   isolated  connecting  M    U
4                          notconnect primary   isolated  connecting  M    U
5                          notconnect primary   isolated  connecting  M    U
6                          notconnect primary   isolated  connecting  M    U
7                          notconnect primary   isolated  connecting  M    U
8                          notconnect primary   isolated  connecting  M    U
9                          notconnect primary   isolated  connecting  M    U
10                         notconnect primary   isolated  connecting  M    U

11                         notconnect primary   isolated  connecting  M    U
12                         notconnect primary   isolated  connecting  M    U
13                         notconnect primary   isolated  connecting  M    U
14                         notconnect primary   isolated  connecting  M    U
15                         notconnect primary   isolated  connecting  M    U
16                         notconnect primary   isolated  connecting  M    U
17                         notconnect primary   isolated  connecting  M    U
18                         notconnect primary   isolated  connecting  M    U


Ler    Ler  Ler   Ler
Port  Cond   Est  Alarm Cutoff Lem-Ct     Lem-Rej-Ct tl-min  Media   Link-Trap
----  -----  ---- ----- ------ ---------- ---------- ------- ------  ---------
1     false  16   8     7      0          0          286     mlt-3   enable
2     false  15   8     7      0          0          286     mlt-3   enable
3     false  16   8     7      0          0          286     cddi    enable
4     false  16   8     7      0          0          286     cddi    enable
5     false  16   8     7      0          0          286     cddi    enable
6     false  16   8     7      0          0          286     cddi    enable
7     false  16   8     7      0          0          286     cddi    enable
8     false  16   8     7      0          0          286     cddi    enable
9     false  16   8     7      0          0          286     cddi    enable
10    false  16   8     7      0          0          286     cddi    enable
11    false  16   8     7      0          0          286     fiber   enable
12    false  16   8     7      0          0          286     fiber   enable
13    false  16   8     7      0          0          286     fiber   enable
14    false  16   8     7      0          0          286     fiber   enable
15    false  16   8     7      0          0          286     fiber   enable
16    false  16   8     7      0          0          286     fiber   enable
17      false   16      8      7            0               0               286         fiber      enable

18    false  16   8     7      0          0          286     fiber   enable

1. The following commands are no longer available in the privileged mode:


show Pmac
show Smac
show Phy

Resolved Issues and New Features for Release 3.1

This section describes the issues that were resolved and the new features that were added to the Workgroup WSC1100 Concentrator Release 3.1 software:

1. The set enablepass command was added and allows two-level password protection. The commands levels, or modes, are normal and privileged. Privileged mode commands are accessed using the enable command and entering the correct password at the prompt.
   Table 1 lists the top-level commands and their modes.


Table 1 : Top-Level Commands

Command	Description	Mode1
clear	Use clear help for information on clear commands	P
configure	Configure from the terminal or the network	P
connect fddi	Connect to the FDDI ring	P
copy flash tftp	Upload the Flash memory image to a network host	P
copy tftp flash	Copy files to and from Flash memory	P
disable	Disable privileged mode	P
disconnect fddi	Disconnect from the FDDI ring	P
download	Download new code to Flash memory	P
enable	Enable privileged mode	N
help	Display top-level commands and a description of how the command are used	N
history	Show the contents of the history substitution buffer	N
macreinit	Reinitialize all MACs2	P
ping	Send echo request packets to a node on the network	N
quit	Exit from the console	N
reset	Reset the system	P
set	Use the set help command for information on the set commands	N
show	Use the show help command for information on the show commands	N
test	Use the test help command for information on the test commands	P
traffic	Send continuous traffic on the ring	P
upload	Upload Flash memory code to the network	P
write	Write configuration information to the terminal or to a file	P

¹ N = normal; P = privileged.
² MAC = Media Access Control.

Table 2 lists the clear commands and their mode.

Table 2 : clear Commands

Command	Description	Mode1
clear arp	Clears ARP2 table entries	P
clear coalias	Clears the MAC address alias	P
clear config	Clears the configuration and reset the system	P
clear counters	Clears MAC and port counters	P
clear help	Displays clear commands and descriptions	P
clear ipalias	Clears the alias of an IP addresses	P
clear lem	Clears link error monitor counters	P
clear log	Clears the system error log	P
clear mac	Clears MAC counters	P
clear port	Clears port counters	P
clear route	Clears IP routing table entries	P
clear trap	Clears the SNMP trap receiver address	P

¹ P = privileged.
² ARP = Address Resolution Protocol.

Table 3 lists the set commands and their modes.

Table 3 : set Commands

Command	Description	Mode1
set arp	Sets the ARP aging time	P
set alarm	Sets the port line error rate alarm	P
set arp	Sets the ARP table entry	P
set attach	Sets the system attach type	P
set baud	Sets the serial port baud rate	P
set broadcast	Sets the SNMP broadcast address	P
set coalias	Sets the alias for company MAC address	P
set community	Sets the SNMP community string	P
set cutoff	Sets the port line error rate cutoff	P
set defaultTTL	Sets the default TTL2 for packets	P
set echo	Sets echo mode (enable or disable)	P
set enablepass	Sets the enable password	P
set help	Displays set commands and descriptions	P
set insertmode	Sets the system insert mode	P
set ipaddress	Sets SNMP IP, netmask, and broadcast addresses	P
set ipalias	Sets the alias for an IP address	P
set length	Sets the number of lines in terminal display	N
set meter	Sets the system traffic meter path	P
set netmask	Sets the SNMP netwask	P
set password	Sets the console password	P
set path	Sets the port requested path	P
set port	Sets the port state (enable or disable)	P
set portname	Sets the port name	P
set prompt	Sets the command-line prompt	P
set redirect	Sets ICMP3 redirects on or off	P
set route	Sets an IP routing table entry	P
set syscontact	Sets the system contact name	P
set syslocation	Sets the system location	P
set sysname	Sets the system name	P
set time	Sets the system clock	P
set tnotify	Sets SMT Time Notify	P
set trap	Sets the SNMP trap receiver address	P
set treq	Sets the token request value of the MAC	P
set userdata	Sets SMT parameter user data	P

¹ N = normal; P = privileged.
² TTL = time to live
³ ICMP = internet control message protocol

Table 4 lists the show commands and their modes.

Table 4 : show Commands

Command	Description	Mode1
show arp	Shows the ARP table entries	N
show coalias	Shows company aliases	N
show config	Shows the configuration of the concentrator	P
show cspsig	Shows the CSP2 signal history	P
show driver	Shows the frame driver status or counts	P
show help	Dislpys information about the show commands	N
show ipalias	Shows the IP aliases that have been assigned	N
show log	Shows the system error log	P
show mac	Shows MAC information	N
show macdbg	Shows MAC debug information	P
show macstatus	Shows the history of the MAC status register	P
show mbuf	Shows mbuf3 and malloc4 statistics	P
show phy	Shows PHY5	P
show pmac	Shows the primary MAC registers	P
show port	Shows port information	N
show portdbg	Shows port debug information	P
show porthistory	Shows port events	n/a
show remotemib	Shows a remote MIB6	N
show ringmap	Shows the ringmap for the primary MAC	N
show route	Shows the IP routing table	N
show smac	Shows the secondary MAC registers	P
show snmp	Shows SNMP information	N
show system	Shows the system information	N
show test	Shows the results of diagnostic tests	P
show time	Shows the time of day	N

¹ N = normal; P = privileged.
² CSP = connection services process.
³ mbuf = memory buffer.
⁴ malloc = memory allocation.
⁵ PHY = physical memory registers.
⁶ MIB = management information base

1. Link Error Rate (LER) Estimate is cleared to 10^--16 with the clear port and clear counters commands.


2. Single mode fiber A/B ports now report the correct media type when you use show port command.


3. When you use the set attach command, the appropriate paths (for example, primary or secondary) are requested for the ports of a null or single attachment concentrator during reset after you use the set attach command.


4. You can now use set, show, and clear for most commands.


5. The write and show config commands have been added for viewing and uploading the configuration.


6. The upload and copy commands have been added to upload the image file.


7. A clear all command can now be used to clear tables for the following clear commands:


   • clear arp


   • clear coalias


   • clear ipalias


   • clear route


   • clear trap


8. The value you enter when using the following commands has been changed to caseinsensitive:


   • coalias


   • ipalias


   • password


9. The history command buffer has been increased from 8 to 20 commands.


10. The connect and disconnect commands have been changed to connect fddi and disconnect fddi.


11. The set length command hasbeen added so you can configure how the screen scrolls.


12. The following system group commands have been added:


    • set defaultTTL---sets the default Time-To-Live command variable


    • set syscontact---sets the system-contact field in the show system command


    • set syslocation---sets the system-location field in show system command


13. Maximum batch file size has been doubled from 4,608 to 9,216 bytes.


14. Confirmations and warning beeps that might affect your network connection were added to the following commands:


    • clear config


    • configure


    • copy flash tftp


    • copy tftp flash


    • disconnect fddi


    • reset


    • set port disable


Known Issue and Workaround

Once the Workgroup WS-C1100 Concentrator Flashcode Version 3.1 is installed, future network downloads will allow only Flashcode with the WS-C1100 signature to be loaded. All Version 3.1 and later versions of the Workgroup WS-C1100 Concentrator Flashcode will contain the WSC1100 signature.

To download or copy an earlier version of Flachcode, you must specifically request the no-signature option by adding the nosig argument to the download command. Following is an example:

Console> (enable) download cres c1100_10.net nosig
This command will disconnect your telnet session.
Download image c1100_10.net from host cres to flash (y/n) [n]? y

1st Pass
Initializing Flash...Erasing Flash....Done
Programing Flash...Base....Length....Time....Code....Done
2nd Pass
Programing Flash...Code....Done
3rd Pass
Programing Flash...Code....Done
Disconnected from FDDI ring.
Connection closed by foreign host.
%

.

Copyright 1988-1996 © Cisco Systems Inc.
