VIP-4R/4T Installation and Configuration
Product Number VIP-4R/4T(=)
This configuration note is a standalone publication that provides instructions for installing, configuring, and maintaining the Versatile Interface Processor (VIP) in your Cisco 7000 series and Cisco 7500 series routers.
The VIP operates with the CxBus in the Cisco 7000 series and CyBus in the Cisco 7500 series, and requires that the host Cisco 7000 series and Cisco 7500 series router is running Cisco Internetwork Operating System (Cisco IOS) Release 11.1(1) or later, or a Cisco-approved beta version of Cisco IOS Release 11.1.
Included are steps for VIP hardware installation and basic VIP configuration steps and examples for configuring the individual interfaces on a new VIP. Also included are maintenance procedures for upgrading user-configurable VIP components.
This publication has two main sections:
You need only refer to the information that is specific to your VIP port adapter configuration or that applies to specific VIP functionality. A table of contents is included on page 2 so you can more easily find what you need.
This configuration note includes the following sections:
The Cisco Internetwork Operating System (Cisco IOS) software running the router contains extensive features and functionality. The effective use of many of many of these features is easier if you have more information at hand.
To obtain general information about documentation, call Customer Service at 800 553-6387 or 408 526-7208. Customer Service hours are 5:00 a.m. to 6:00 p.m. Pacific time, Monday through Friday (excluding company holidays). You can also send e-mail to
cs-rep@cisco.com
. You can also refer to the Cisco Information Packet that shipped with your router.
For additional information on configuring the Cisco 7000 series or Cisco 7500 series router, the following documentation resources are available to you:
The following sections describe the Versatile Interface Processor (VIP) and discuss VIP-specific features and functions, such as installing and removing the VIP, installing and removing port adapters, using and configuring common VIP interface functions.
The VIP is a new interface processor for use with the Cisco 7000 series and Cisco 7500 series routers, and it installs in the interface processor slots in your Cisco 7000 series or 7500 series router. The VIP uses a single motherboard with up to two port adapters. The VIP port adapters provide the individual LAN, WAN, or LAN/WAN interface ports. The VIP can be removed from a chassis while power is on and the system is operating.
The VIP uses a Reduced Instructions Set Computing (RISC), Mips 4600 processor for high performance, and has an internal operating frequency of 100 megahertz (MHz) and a 50-MHz system bus interface. The VIP has 8 megabytes (MB) of dynamic random access memory (DRAM) as the default DRAM configuration.

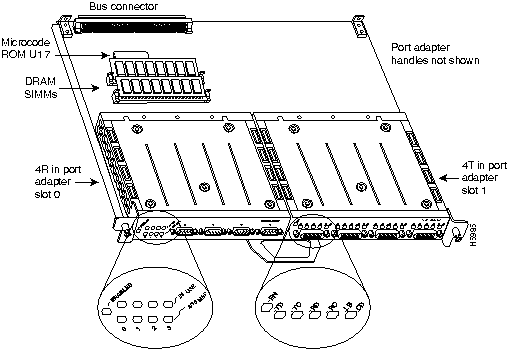

Figure 1 shows a VIP-4R/4T. The VIP firmware (microcode), which contains card-specific software instructions, resides in a Flash memory device in socket location U17. Single in-line memory modules contain the DRAM. For connector pinouts, refer to the section "4R Port Adapter Receptacles, Cables, and Pinouts" on page 34, or to the section "4T Port Adapter Receptacles, Cables, and Pinouts" on page 51. You can install VIPs in any available interface processor slots.
Figure 1 VIP with One 4R and One 4T Port Adapter (Horizontal Orientation Shown)
The VIP requires that the host Cisco 7000 series and Cisco 7500 series router is running Cisco Internetwork Operating System (Cisco IOS) Release 11.1(1) or later, or a Cisco-approved beta version of Cisco IOS Release 11.1.
ftp/beta111_dir@ftp.cisco.com
. Detailed information about the latest Cisco IOS release can be found in the ASCII file vip1-readme, which is also available via FTP from
ftp.cisco.com
in the directory
/ftp/beta111_dir
. This ASCII file includes information and instructions on how to get the current Cisco IOS software images and VIP microcode. To access information located in Cisco Connection Online (CCO), refer to the section "Cisco Connection Online" at the end of this publication.
The VIP operates with the CxBus in the Cisco 7000 series and CyBus in the Cisco 7500 series, and operates with the optional RSP7000 and RSP7000CI RSP-based processor modules in the Cisco 7000 series routers: Cisco 7000 and Cisco 7010. The VIP will also operate with the Route Processor (RP) and Switch Processor (SP) in the Cisco 7000 series routers. The VIP operates with all RSP-based processor modules currently shipping in the Cisco 7000 series and Cisco 7500 series routers: Cisco 7505, Cisco 7507, and Cisco 7513.
For the Cisco 7000 family of routers, which includes the Cisco 7000 series and Cisco 7500 series routers, network interfaces reside on modular interface processors, including the VIP, which provide a direct connection between external networks and the high-speed CxBus in the Cisco 7000 series and the high-speed CyBus in the Cisco 7500 series.
In all systems, the remaining slots support any combination of network interface types: Ethernet attachment unit interface (AUI), Ethernet 10BASE-T, Fast Ethernet 100BASE-TX, Asynchronous Transfer Mode (ATM), Token Ring, multichannel applications, Fiber Distributed Data Interface (FDDI), channel attachment, serial, or High-Speed Serial Interface (HSSI), and all VIP--based interfaces.
Figure 2 and Figure 3 show the rear of the Cisco 7000 series routers: the seven-slot Cisco 7000 and the five-slot Cisco 7010, respectively. In the Cisco 7000 series, two slots are reserved for the SP (or SSP) and RP, or for the 7000 Series Route Switch Processor (RSP7000) and the 7000 Series Chassis Interface (RSP7000CI). The remaining slots are for interface processors: slots 0 through 4 in the Cisco 7000, and slots 0 through 2 in the Cisco 7010.
Figure 2 Cisco 7000, Interface Processor End
Figure 3 Cisco 7010, Interface Processor End
Figure 4, Figure 5, and Figure 6 show the rear of the Cisco 7500 series routers: the five-slot Cisco 7505, the seven-slot Cisco 7507, and the thirteen-slot Cisco 7513, respectively.
In the Cisco 7505, one slot (4) is reserved for the Route Switch Processor (RSP1), which contains the system processor and performs packet switching functions. Slots 0 through 3 are for interface processors.
Figure 4 Cisco 7505, Interface Processor End
Figure 5 shows the rear of the seven-slot Cisco 7507 router. In the Cisco 7507, up to two slots (2 and 3) are reserved for the Route Switch Processor (RSP2), which contains the system processor and performs packet switching functions. Slots 0 and 1 and 4 through 6 are for interface processors.
Figure 5 Cisco 7507, Interface Processor End
Figure 6 shows the rear of the Cisco 7513 with two AC-input power supplies installed. Two slots (6 and 7) are reserved for the second generation Route Switch Processor (RSP2), which contains the system processor and performs packet switching functions. Slots 0 through 5 and 8 through 12 are for interface processors.
Figure 6 Cisco 7513, Interface Processor End

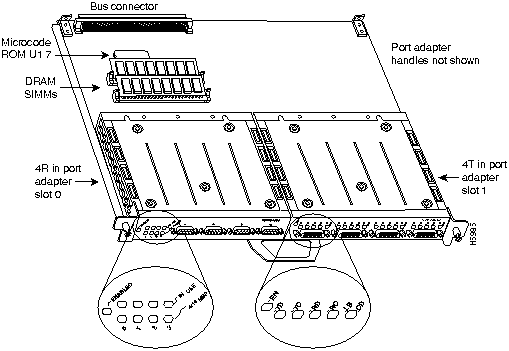

The port adapters attach to the VIP motherboard. (See Figure 7.) Each port adapter contains the physical connections for the VIP interface types to connect to your network.
Figure 7 VIP with One 4R and One 4T Port Adapter (Product Number VIP-4R/4T[=])
Following are the VIP port adapters by interface type:
Following are the supported electrical interfaces:
The VIP microcode (firmware) is an image that provides card-specific software instructions. A Flash memory device in socket U17 of the VIP contains the default microcode boot image. The router supports downloadable microcode, which enables you to upgrade microcode versions by downloading new microcode images, storing them in system Flash memory, and instructing the system to load its image from Flash instead of the default VIP image. (The RP in the Cisco 7000 and 7010 loads software from ROM or Flash memory; the RSP loads software from Flash only.) You can store multiple images for an interface type and, with a configuration command, instruct the system to load any one of them or the default ROM image. All interfaces of the same type (VIP, and so on) will load the same microcode image, either from the default ROM image or from a single image stored in system Flash. Although multiple microcode versions for a specific interface type can be stored concurrently in Flash, only one image can load at startup. The show controllers cbus command displays the currently loaded and running microcode version for the SP or SSP (in the Cisco 7000 series routers), each interface processor, and VIP. The show startup-config EXEC command shows the current system instructions for loading microcode at startup.
Software and interface processor microcode images are carefully optimized and bundled to work together. Overriding the bundle can result in system incompatibilities. We recommend that you use the microcode included in the software bundle. For a complete description of microcode and downloading procedures, refer to the section "Upgrading VIP Microcode" on page 23.
This section provides a list of parts and tools you will need to perform the VIP installation, and it also includes safety and ESD-prevention guidelines to help you avoid injury and damage to the equipment. This section also provides a detailed description of the OIR function to help you perform online installation successfully and avoid error message and system restarts. If you are installing a new VIP, be sure to review the equipment descriptions and distance limitations in the port adapter sections "Serial Distance Limitations" and "Token Ring Distance Limitations" when preparing your site and planning network connections.
You need the following tools and parts to install or upgrade a VIP. If you need additional equipment, contact a service representative for ordering information.
Following are safety guidelines that you should follow when working with any equipment that connects to electrical power or telephone wiring.
Follow these basic guidelines when working with any electrical equipment:
Use the following guidelines when working with any equipment that is connected to telephone wiring or to other network cabling:
Electrostatic discharge (ESD) damage, which can occur when electronic cards or components are improperly handled, results in complete or intermittent failures. A processor module comprises a printed circuit board that is fixed in a metal carrier. Electromagnetic interference (EMI) shielding, connectors, and a handle are integral components of the carrier. Although the metal carrier helps to protect the board from ESD, use a preventive antistatic strap whenever handling a processor module.
Following are guidelines for preventing ESD damage:
The OIR feature allows you to remove and replace a VIP board while the system is operating; you do not need to notify the software or shut down the system power.
This section describes mechanical functions of system components, emphasizes the importance of following correct procedures to avoid unnecessary board failures, and is for background only; specific VIP procedures follow in the section "VIP Installation" on page 16.
Each interface processor contains a receptacle with which it connects to the system backplane. Each backplane connector comprises a set of tiered pins, in three lengths. The pins send specific signals to the system as they make contact with the card. The system assesses the signals it receives and the order in which it receives them to determine what event is occurring and what task it needs to perform, such as reinitializing new interfaces or shutting down removed ones.
For example, when inserting an interface processor, the longest pins make contact with the backplane first, and the shortest pins make contact last. The system recognizes the signals and the sequence in which it receives them. The system expects to receive signals from the individual pins in this logical sequence, and the ejector levers help to ensure that the pins mate in this sequence.
When you remove or insert an interface processor, the backplane pins send signals to notify the system, which then performs as follows:
The system brings on line only interfaces that match the current configuration and were previously configured as up; all others require that you configure them with the configure command. OIR functionality enables you to add, remove, or replace interface processors with the system online, which provides a method that is seamless to end users on the network, maintains all routing information, and ensures session preservation.
The function of the ejector levers (see Figure 8) is to align and seat the card connectors in the backplane. Failure to use the ejector levers and insert the interface processor properly can disrupt the order in which the pins make contact with the card or interface processor. Follow the VIP installation and removal instructions carefully, and review the following examples of incorrect insertion practices and their results:
It is also important to use the ejector levers when removing an interface processor to ensure that the backplane connector pins disconnect from the card or interface processor in the logical sequence expected by the system. Any interface processor that is only partially connected to the backplane can hang the bus. Detailed steps for correctly performing OIR are included with the following procedures for installing and removing the VIP.
Figure 8 Ejector Levers and Captive Installation Screws on the VIP (Horizontal Orientation Shown)
The following sections describe the procedures for removing or installing a VIP in the Cisco 7000 series and Cisco 7500 series routers. The functionality is the same for each router model; therefore, the term the chassis will be used except where specific model issues arise. The OIR function allows you to install and remove a VIP without first shutting down the system; however, you must follow the instructions carefully. Failure to insert the VIP properly can cause system error messages indicating a board failure. For a complete description of OIR, refer to the section "Online Insertion and Removal---An Overview" on page 13.
Each unused interface processor slot contains an interface processor filler (which is an interface processor carrier without an interface board) to keep dust out of the chassis and to maintain proper air flow through the interface processor compartment. If you are installing a new VIP that is not a replacement, you must first remove the interface processor filler from an unused slot; proceed to the next section "Removing an Interface Processor Filler." If you are replacing a VIP or upgrading the microcode Flash EPROM on a VIP, proceed to the section "Removing a VIP."
Select an unused interface processor slot for the new VIP and remove the interface processor filler as follows:
To help prevent dust and contaminants from entering the chassis, do not leave the interface processor slot open. Immediately proceed to the section "Installing a VIP" on page 18.
Remember, the VIP supports OIR; therefore, you need not shut down the interface or the system power when removing a VIP. If you are replacing a failed VIP, remove the existing board first, then replace the new VIP in the same slot.
Figure 9 shows proper handling of an interface processor during installation.
Figure 9 Handling Processor Modules for Installation and Removal (Horizontal Orientation Shown)
To remove a VIP, follow these steps:
The VIP slides into the open interface processor slot and connects directly to the backplane. The interface processors are keyed to guide pins on the backplane, so the VIP can be installed only in an interface processor slot. Figure 8 shows the functional details of inserting an interface processor and using the ejector levers. Figure 9 shows proper handling of an interface processor during installation.
Follow these steps to install a VIP:
You can use the configure command to configure a VIP interface. To use the configure command, enter the privileged level of the EXEC command interpreter with the enable command. The system will prompt you for a password if one has been set.
The system prompt for the privileged level ends with a pound sign (#) instead of an angle bracket (>). At the console terminal, enter the privileged level as follows:
Router> enable Password:
Router#
After you install the VIP and connect cables (using connection procedures in the respective port adapter subsections), verify the installation by observing the LED states and the console display. When the system has reinitialized all interfaces, the enabled LED on the VIP and on all interface processors should go on. One or the other of the MII and RJ-45 LEDs should be on, depending on your connection, and the link LED should be on if the VIP is receiving a carrier signal from the network.
The console screen will also display a message as the system discovers each interface during its reinitialization.
When you remove and replace interface processors, the system provides status messages on the console screen. The messages are for information only.
The following sample display shows the events logged by the system as a serial-equipped VIP was removed from slot 2; the system then reinitialized the remaining interface processors and marked as down the serial interfaces on the VIP that was removed from slot 2. When the VIP is reinserted, the system automatically brings up the interfaces that were up when the VIP was removed.
Router# %OIR-6-REMCARD: Card removed from slot 2, interfaces disabled %LINK-5-CHANGED: Interface Serial2/1/0, changed state to administratively down %LINK-5-CHANGED: Interface Serial2/1/1, changed state to administratively down Router# %OIR-6-INSCARD: Card inserted in slot 2, interfaces administratively shut down %LINK-5-CHANGED: Interface Serial2/1/0, changed state to up %LINK-5-CHANGED: Interface Serial2/1/1, changed state to up
The following example display shows the events logged by the system as a new VIP is inserted in slot 3. (Serial interfaces are used in the following examples.)
Router# %OIR-6-INSCARD: Card inserted in slot 3, interfaces administratively shut down %LINK-5-CHANGED: Interface Serial3/1/0, changed state to administratively down %LINK-5-CHANGED: Interface Serial3/1/1, changed state to administratively down
Verify that the VIP is installed correctly as follows:
If an error message is displayed on the console terminal, refer to the System Error Messages publication for error message definitions. If you experience other problems that you are unable to solve, contact a service representative for assistance.
This completes the VIP installation. If you installed a new VIP or if you installed a replacement VIP with an additional port, you must now configure the new interface as described in the following section.
The following procedure describes how to use the show commands to verify that the new interfaces are configured correctly:
If the interface is down and you configured it as up, or if the displays indicate that the hardware is not functioning properly, ensure that the network interface is properly connected and terminated. If you still have problems bringing the interface up, contact a service representative for assistance.
The show controllers cbus command displays the internal status of each interface processor, including the slot location, the card hardware version, and the currently-running microcode version. It also lists each interface (port) on each interface processor including the logical interface number, interface type, physical (slot/port adapter/port) address, and hardware (station address) of each interface. The following example shows a VIP, with serial interfaces, installed in interface processor slot 3:
Router# show controller cbus
(display text omitted)
slot3: VIP, hw 2.1, sw 200.09, ccb 5800FF70, cmdq 480000A0, vps 8192
software loaded from system
FLASH ROM version 255.255, VPLD version 20.0
4T HW Revision 121, SW Revision 216, Unresponsive 0
Serial3/1/0, addr 0000.0ca5.2380 (bia 0000.0ca5.2380)
gfreeq 48000140, lfreeq 48000238 (1536 bytes), throttled 0
rxlo 4, rxhi 123, rxcurr 16, maxrxcurr 16
txq 48000240, txacc 480000EA (value 77), txlimit 77
Serial3/1/1, addr 0000.0ca5.238e (bia 0000.0ca5.238e)
gfreeq 48000140, lfreeq 48000238 (1536 bytes), throttled 0
rxlo 4, rxhi 123, rxcurr 16, maxrxcurr 16
txq 48000240, txacc 480000EA (value 77), txlimit 77
(display text omitted)
The show startup-config command displays the contents of the system configuration file stored in NVRAM. This file should reflect all new configuration changes you made and wrote to memory with the show running-config command. (A serial interface is used in this example.)
Router# show startup-config Using 1652 out of 130048 bytes version 11.1(1) ! hostname Router ! enable-password hello ! microcode VIP flash VIP11-0 microcode reload ! (display text omitted) ! interface serial 3/1/0 ip address 1.1.1.1 255.255.255.248 ip route-cache cbus ! (display text omitted)
The show protocols command displays the global (system-wide) and interface-specific status of any configured Level 3 protocol.
Router# show protocols Global values: Internet Protocol routing is enabled Serial3/1/0 is up, line protocol is up
The Cisco 7000 series and the Cisco 7500 series support downloadable microcode, which enables you to upgrade microcode versions without having to physically replace the microcode Flash memory device on the board. You can download new microcode versions and store multiple versions in Flash memory, and you can boot from them just as you can with the system software images. System software upgrades may also contain upgraded microcode images, which will load automatically when the new software image is loaded (unless the configuration states otherwise).
You can download microcode to Flash memory by copying the TFTP image of a microcode version to Flash memory. When the microcode image is stored in Flash memory you can use the microcode reload command to manually load the new microcode file, and the configure command to instruct the system to load the new image automatically at each system boot.
To compare the size of the microcode image and the amount of Flash memory available, you must know the size of the new microcode image. The image size is specified in the README file that is included on the floppy disk with the new image.
Follow these steps to download (copy) a microcode version from a TFTP server to Flash memory.
Router# show flash -#- ED --type-- --crc--- -seek-- nlen -length- -----date/time------ name 1 .. FFFFFFFF B4A18E0B 3F6494 30 4023316 Jun 26 1994 19:44:29 image/file/1 2 .. FFFFFFFF 8075AA5D 4118B4 23 111518 Jun 29 1994 11:05:57 image/file/2 12044568 bytes available (8533736 bytes used)
buffer overflow - xxxx/xxxx
Router# copy tftp:vip11-1 slot0:vip11-1 20575008 bytes available on device slot0, proceed? [confirm] Address or name of remote host [1.1.1.1]? Loading new.image from 1.1.1.1 (via Ethernet1/0): !!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!![OK - 7799951/15599616 bytes] CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC Router#
Router# show flash -#- ED --type-- --crc--- -seek-- nlen -length- -----date/time------ name 1 .. FFFFFFFF B4A18E0B 3F6494 30 4023316 Jun 26 1994 19:44:29 image/file/1 2 .. FFFFFFFF 8075AA5D 4118B4 23 111518 Jun 29 1994 11:05:57 image/file/2 3 .. FFFFFFFF EEA1FEEB 8436E8 22 4398516 Oct 10 1995 19:35:25 vip11-1 7646052 bytes available (16179788 bytes used)
Router# config t Enter configuration commands, one per line. End with CNTL/Z. Router(config)#
Router(config)# microcode vip flash slot0:vip11-1
Router# copy running-config startup-config
Router# config t Enter configuration commands, one per line. End with CNTL/Z. Router(config)# microcode reload
Router# show controllers cbus
This completes the procedure for downloading microcode to Flash memory.
VIPs are shipped with 8 megabytes (MB) of dynamic random-access memory (DRAM) as the default DRAM configuration. Depending on memory requirements, you might need to upgrade the amount of DRAM by replacing the DRAM SIMMs on the VIP. You also might need to replace a single SIMM in the case of a diagnosed DRAM SIMM failure.
Figure 10 Handling a DRAM SIMM---Example Only
Following is the procedure for replacing or upgrading DRAM SIMMs.
Figure 11 Orientation of DRAM SIMMs (U1 and U2) on VIP Motherboard
Figure 12 Removing and Replacing DRAM SIMMs
page 18.
If error messages relating to memory are displayed once power to the chassis is turned back on, or the VIP card is installed in a chassis that is already on, repeat Steps 1 through 8, taking care to firmly reseat each SIMM in its socket.
This completes the procedure for upgrading or replacing DRAM SIMMs on your VIP.
The following sections discuss the port adapters used with the VIP:
The following sections discuss the 4R port adapter, which is shown in Figure 13.
The 4R port adapter (see Figure 13) is currently available on the VIP-4R/4T, which has two port adapter slots: port adapter slot 0 and port adapter slot 1. The 4R port adapter, which is installed in port adapter slot 0, provides up to four IBM Token Ring or IEEE 802.5 Token Ring interfaces. Each Token Ring interface can be set for 4 Mbps or 16 Mbps. All Token Ring ports run at wire speed.
Figure 13 4R Port Adapter, Faceplate View
The following sections describe Token Ring specifications, physical connections, connection equipment, and cables and connectors. Figure 14 shows the 4R port adapter installed on the VIP-4R/4T.
Figure 14 VIP with One 4R and One 4T Port Adapter Installed (Horizontal Orientation Shown)
The term Token Ring refers to both IBM's Token Ring Network, which IBM developed in the 1970s, and to IEEE 802.5 networks. The IEEE 802.5 specification was modeled after, and still closely shadows, IBM's network. The two types are compatible, although the specifications differ slightly.
Token Ring and IEEE 802.5 are token passing networks, which move a small frame, called a token, around the network. Possession of the token grants the right to transmit; a station with information to transmit must wait until it detects a free token passing by.
The IBM Token Ring specifies a star topology, with all end stations connected through a device called a multistation access unit (MSAU). IEEE 802.5 does not specify any topology, although most implementations are based on a star configuration with end stations attached to a device called a media access unit (MAU). Also, IBM Token Ring specifies twisted-pair cabling, whereas IEEE 802.5 does not specify media type. Most Token Ring networks use shielded twisted-pair cabling; however, some networks that operate at 4 Mbps use unshielded twisted-pair cable. Table 1 shows a comparison of the two types.
Table 1 IBM Token Ring and IEEE 802.5 Comparison
| Network Type | Data Rates | Stations/ Segment | Topology | Media | Signaling | Access Method | Encoding |
|---|---|---|---|---|---|---|---|
| IBM Token Ring network | 4, 16 Mbps | 260 shielded twisted-pair72 unshielded twisted-pair | Star | Twisted-pair | Baseband | Token passing | Differential Manchester |
| IEEE 802.5 network | 4, 16 Mbps | 250 | Not specified | Not specified | Baseband | Token passing | Differential Manchester |
All 4R port adapter interfaces support both 4- and 16-Mbps operation and early token release. The default for all ports is for 4-Mbps operation and early token release disabled. Both states are enabled with configuration commands in Configuration mode.
To enable 16 Mbps, specify the slot/port address and use the configuration command ring-speed 16; to return to 4 Mbps operation, use the command ring-speed 4. To enable and disable early token release, specify the slot/port address and use the configuration command [no] early token release. For complete descriptions and examples of software commands, refer to the related software configuration documentation.
In the typical Token Ring network shown in Figure 15, lobe cables connect each Token Ring station (4R port adapter interface) to the MSAU (or MAU), and patch cables connect adjacent MSAUs (or MAUs) to form one large ring.
Figure 15 Token Ring Network Physical Connections
You will need an 802.5 MAU or an MSAU to provide the interface between the 4R port adapter Token Ring interfaces and the external ring, and a Token Ring lobe cable between each 4R port adapter interface and the MAU or MSAU. Lobe cables connect each Token Ring station (4R port adapter interface) to the MAU or MSAU, and patch cables can connect adjacent MSAUs to form one large ring.
4R port adapter interfaces operate at either 4 or 16 Mbps. The default speed for all 4R port adapter interfaces is 4 Mbps, which you can change to 16 Mbps on any port using the ring-speed n configuration command, where n is the speed (4 or 16) in Mbps. The speed of each Token Ring port must match the speed of the ring to which it is connected. Before you enable the Token Ring interfaces, ensure that each is set for the correct speed, or it can bring down the ring.
The maximum transmission distance is not defined for IEEE 802.5 (Token Ring) networks. Shielded twisted-pair (STP) cabling is most commonly used for rates of 4 and 16 Mbps. Twisted-pair cabling is more susceptible to interference than other types of cabling; therefore, the network length and repeater spacing should be planned accordingly.
Before you install the 4R port adapter, determine the ring speed (4 or 16 Mbps) of each ring to be connected to the server. There is no factory default for the interface speed; you must set the speed of each interface (within the setup command facility or with the ring-speed command) before you bring the interface up and insert it into the ring with the no shutdown command.
The 4R port adapter's enabled LED (shown in Figure 16) goes on to indicate the following status of the 4R port adapter:
If any of these conditions is not met, or if the initialization fails for other reasons, the port adapter's enabled LED does not go on.
Figure 16 4R Port Adapter LEDs
When a Token Ring interface is configured by using software commands, two additional LEDs for each port indicate the following:
A network interface cable provides the connection between the 9-pin Token Ring receptacles on the 4R port adapter and a media access unit (MAU). The 9-pin connector at the 4R port adapter end, and the MAU connector at the network end, are described in the section "Token Ring Connection Equipment" on page 32.
The Token Ring ports on the 4R port adapter are DB-9 (PC type) receptacles that require Type 1 or Type 3 lobe cables. Token Ring interface cables are not available from Cisco Systems, but are commercially available through outside cable vendors. Type 1 lobe cables use shielded twisted-pair (STP) cable and terminate at the network end with a large MAU plug. (See Figure 17.) The 4R port adapter end of the cable is a DB-9 plug.
Figure 17 Token Ring Type 1 Lobe Cable Connectors, DB-9 and MAU Types
Type 3 lobe cables use either shielded or unshielded twisted-pair (UTP) cable and terminate at the network end with an RJ-11 plug. (See Figure 18.) The 4R port adapter end of the cable is a DB-9 plug.
Figure 18 Token Ring Type 3 Lobe Cable Connectors, DB-9 and RJ-11 Types
Table 2 lists the pinout for the DB-9 receptacle used on the 4R port adapter.
| Pin | Signal |
|---|---|
| 1 | Ring-In B |
| 5 | Ring-Out A |
| 6 | Ring-In A |
| 9 | Ring-Out B |
| 10 and 11 | Ground |
The Token Ring ports on the 4R port adapter run at either 4- or 16 Mbps. You need one Token Ring interface cable for each 4R port adapter interface you want to use. Token Ring interface cables are not available from Cisco Systems, but are commercially available through outside cable vendors.
Following is the procedure for attaching Token Ring cables to the 4R port adapter:
Figure 19 Token Ring Interface Cable Connections
You can modify the startup configuration for Cisco 7000 series and Cisco 7500 series routers through the software command interpreter called EXEC. To configure the interfaces for interface processors, you can use either one of the setup or configure EXEC commands:
The setup command facility can be used after first time startup to make basic changes at any time. The changes you make will affect only the changed elements' current memory values that are stored in nonvolatile memory.
The configure privileged EXEC command enables you to perform advanced configurations such as specifying interfaces. The EXEC interprets the commands you enter and carries out the corresponding operations. You can list available EXEC commands by entering a question mark (?). You also can enter a question mark to obtain more information about commands. For example, enter terminal ? to obtain a list of terminal commands or show ? to obtain a list of show commands.
Before you use the setup or the configure command, you must have privileged access to the EXEC command interpreter. The system prompt for the privileged level ends with a pound sign (#) instead of an angle bracket (>).
The EXEC enable command allows access to the privileged level, prompting for a password if one has been set with the enable-password configuration command.
Follow these steps to enter the privileged level of the EXEC.
Router> enable
Password:
Router#
To configure Token Ring interfaces using the setup EXEC command facility, follow the instructions in the section "Using the Setup Command." To configure the Token Ring interfaces by using the configure EXEC command, follow the instructions in the section "Using the Configure EXEC Command" on page 39.
The setup command facility identifies all interfaces (including the Token Ring interfaces for the ports on the 4R port adapter) that are installed and prompts you for configuration information for each installed interface. When you finish configuring one interface, the setup command facility prompts you for the next, continuing until each interface has been configured.
When you enter the setup command facility after first time startup, you must run through the entire dialog until you come to the interface you want to change. Note that when you use the setup command after first time startup, the default values indicated within the brackets in the System Configuration Dialog are the values last set using the setup command facility or left as defaults.
After you choose to continue with the setup command (by answering yes to the system configuration dialog prompt), the remainder of the script is the actual configuration process. The dialog prompts you first for global system parameters, then for configuration information for each interface. The existing configuration is displayed as the default, in brackets ([ ]), at the end of each prompt. Press Return to accept the default settings.
Following is the procedure for using the setup facility to configure the 4R Token Ring interfaces:
Router# setup
-System Configuration Dialog- At any point you may enter a question mark `?' for help. Refer to the `Getting Started' Guide for additional help. Default settings are in square brackets `[]'. Continue with configuration dialog? [yes]: (Use Ctrl-c to abort configuration at any prompt) Configuring global parameters: Enter host name [Router]: sandbox
Configuring interface parameters:
Configuring interface Token Ring0:
Is this interface in use [yes]:
Tokenring ring speed (4 or 16) [16]
Configure IP on this interface? [yes]:
IP address for this interface: 1.1.1.30
(remainder of display text omitted)
To accept the default at each prompt and retain the existing configuration information, press the Return key. When you reach the scripts for configuring new interfaces, enter the new configuration information at each prompt.
Use this configuration [yes/no]:
Press RETURN to get started!
The configuration process is complete. Proceed to the section "Checking the Configuration" on page 44. It provides show commands you can use to display and verify the configuration information.
The configure EXEC command allows you to configure the interfaces for interface processors in the Cisco 7000 series and Cisco 7500 series. At the privileged command level, enter the ? command to display a list of privileged level EXEC commands.
To display information about the interface, including the software and hardware versions and the controller status, use the show controller cbus command. To display statistics about the interfaces, use the show interfaces command.
The following section describes how to identify chassis slot, port adapter, and serial interface port numbers.
In the router, physical port addresses specify the actual physical location of each interface port on the router interface processor end. (See Figure 20.) This address is composed of a three-part number in the format chassis slot number/port adapter number/interface port number.
The first number identifies the chassis slot in which the VIP is installed (as shown in the example system in Figure 20). The second number identifies the physical port adapter number on the VIP, and is either 0 or 1. The interface ports on each 4R port adapter are always numbered in sequence as interface 0 through 3.
Interface ports on the 4R port adapter maintain the same address regardless of whether other interface processors are installed or removed. However, when you move a VIP to a different slot, the first number in the address changes to reflect the new slot number.
Figure 20 shows some of the slot port adapter and interface ports of a sample Cisco 7505 system. For example, the addresses for the 4R interface ports on the first port adapter are 3/0/0 through 3/0/3 (chassis slot 3, port adapter slot 0, and interface ports 0 through 3).
The first port adapter slot number is always 0. The second port adapter slot number is always 1. The individual interface port numbers always begin with 0. The number of additional ports depends on the number of ports on a port adapter.
Figure 20 4R Token Ring Interface Port Number Example (Cisco 7505 Shown)
You can identify interface ports by physically checking the slot/port adapter/interface port location on the back of the router or by using software commands to display information about a specific interface or all interfaces in the router.
To display information about a specific interface, use the show interfaces command with the interface type and port address in the format show interfaces [type slot/port adapter/port].
Following is an example of how the show interfaces [type slot/port adapter/port] command displays status information (including the physical slot and port address) for the interfaces you specify. In these examples, most of the status information for each interface is omitted, and the four Token Ring interfaces (0--3) are in chassis slot 3, in port adapter slot 1. (Interfaces are administratively shut down until you enable them.)
Router# sh int tokenring 3/0/0 TokenRing3/0/0 is administratively down, line protocol is down Hardware is cyBus TokenRing, address is 0000.0ca5.2300 (bia 0000.0ca5.2389) MTU 1500 bytes, BW 10000 Kbit, DLY 1000 usec, rely 255/255, load 1/255 Encapsulation ARPA, loopback not set, keepalive set (10 sec) Router# sh int tokenring 3/0/1 TokenRing3/0/1 is administratively down, line protocol is down Hardware is cyBus TokenRing, address is 0000.0ca5.2300 (bia 0000.0ca5.238a) MTU 1500 bytes, BW 10000 Kbit, DLY 1000 usec, rely 255/255, load 1/255 Encapsulation ARPA, loopback not set, keepalive set (10 sec) Router# sh int tokenring 3/0/2 TokenRing3/0/2 is administratively down, line protocol is down Hardware is cyBus TokenRing, address is 0000.0ca5.2300 (bia 0000.0ca5.238b) MTU 1500 bytes, BW 10000 Kbit, DLY 1000 usec, rely 255/255, load 1/255 Encapsulation ARPA, loopback not set, keepalive set (10 sec) Router# sh int tokenring 3/0/3 TokenRing3/0/3 is administratively down, line protocol is down Hardware is cyBus TokenRing, address is 0000.0ca5.2300 (bia 0000.0ca5.238b) MTU 1500 bytes, BW 10000 Kbit, DLY 1000 usec, rely 255/255, load 1/255 Encapsulation ARPA, loopback not set, keepalive set (10 sec)
Token Ring interface port adapters are always numbered as port adapter 0 because VIPs currently support only one 4R port adapter with the VIP-4R/4T configuration, and the 4T port adapter is always in the second port adapter slot location (port adapter slot 1). With this VIP configuration, a 4R port adapter is always in port adapter slot 0.
Refer to Table 3, Table 4, Table 5, Table 6, and Table 7 for the 4R port numbers associated with the interface processor slots in your chassis.
Table 3 4R Slot, Port Adapter, and Port Numbers in a Cisco 7000
| Slot 0/ Adapter 0/ Port n | Slot 1/ Adapter 0/ Port n | Slot 2/ Adapter 0/ Port n | Slot 3/ Adapter 0/ Port n | Slot 4/ Adapter 0/Port n |
|---|---|---|---|---|
| 0/0/0 | 1/0/0 | 2/0/0 | 3/0/0 | 4/0/0 |
| 0/0/1 | 1/0/1 | 2/0/1 | 3/0/1 | 4/0/1 |
| 0/0/2 | 1/0/2 | 2/0/2 | 3/0/2 | 4/0/2 |
| 0/0/3 | 1/0/3 | 2/0/3 | 3/0/3 | 4/0/3 |
Table 4 4R Slot, Port Adapter, and Port Numbers in a Cisco 7010
| Slot 0/ Adapter 0/ Port n | Slot 1/ Adapter 0/ Port n | Slot 2/ Adapter 0/ Port n |
|---|---|---|
| 0/0/0 | 1/0/0 | 2/0/0 |
| 0/0/1 | 1/0/1 | 2/0/1 |
| 0/0/2 | 1/0/2 | 2/0/2 |
| 0/0/3 | 1/0/3 | 2/0/3 |
Table 5 4R Slot, Port Adapter, and Port Numbers in a Cisco 7505
| Slot 0/ Adapter 0/ Port n | Slot 1/ Adapter 0/ Port n | Slot 2/ Adapter 0/ Port n | Slot 3/ Adapter 0/ Port n |
|---|---|---|---|
| 0/0/0 | 1/0/0 | 2/0/0 | 3/0/0 |
| 0/0/1 | 1/0/1 | 2/0/1 | 3/0/1 |
| 0/0/2 | 1/0/2 | 2/0/2 | 3/0/2 |
| 0/0/3 | 1/0/3 | 2/0/3 | 3/0/3 |
Table 6 4R Slot, Port Adapter, and Port Numbers in a Cisco 7507
| Slot 0/ Adapter 0/ Port n | Slot 1/ Adapter 0/ Port n | Slot 4/ Adapter 0/ Port n | Slot 5/ Adapter 0/ Port n | Slot 6/ Adapter 0/ Port n |
|---|---|---|---|---|
| 0/0/0 | 1/0/0 | 4/0/0 | 5/0/0 | 6/0/0 |
| 0/0/1 | 1/0/1 | 4/0/1 | 5/0/1 | 6/0/1 |
| 0/0/2 | 1/0/2 | 4/0/2 | 5/0/2 | 6/0/2 |
| 0/0/3 | 1/0/3 | 4/0/3 | 5/0/3 | 6/0/3 |
Table 7 4R Slot, Port Adapter, and Port Numbers in a Cisco 7513
| Slot 0 / Adapter(1)/Port | Slot 1 / Adapter/Port n | Slot 2/ Adapter/Port n | Slot 3/ Adapter/Port n | Slot 4/ Adapter/Port n | Slot 5/ Adapter/ Port n | Slot 8/ Adapter/Port n | Slot 9/ Adapter/Port n | Slot 10/ Adapter/Port n | Slot 11/ Adapter/Port n | Slot 12/ Adapter/ Port n |
|---|---|---|---|---|---|---|---|---|---|---|
| 0/0/0 | 1/0/0 | 2/0/0 | 3/0/0 | 4/0/0 | 5/0/0 | 8/0/0 | 9/0/0 | 10/0/0 | 11/0/0 | 12/0/0 |
| 0/0/1 | 1/0/1 | 2/0/1 | 3/0/1 | 4/0/1 | 5/0/1 | 8/0/1 | 9/0/1 | 10/0/1 | 11/0/1 | 12/0/1 |
| 0/0/2 | 1/0/2 | 2/0/2 | 3/0/2 | 4/0/2 | 5/0/2 | 8/0/2 | 9/0/2 | 10/0/2 | 11/0/2 | 12/0/2 |
| 0/0/3 | 1/0/3 | 2/0/3 | 3/0/3 | 4/0/3 | 5/0/3 | 8/0/3 | 9/0/3 | 10/0/3 | 11/0/3 | 12/0/3 |
With the show interfaces type slot/port adapter/port command, use arguments such as the interface type (Token Ring, and so forth) and the slot, port adapter, and port numbers (slot/port adapter/port) to display information about a specific serial interface only.
The following example of the show interfaces tokenring slot/port adapter/port command shows all of the information specific to the first 4R interface port (interface port 0) in chassis slot 3, port adapter slot 0:
Router# sh int tokenring 3/0/0
TokenRing3/0/0 is administratively down, line protocol is down
Hardware is cyBus TokenRing, address is 0000.0ca5.2300 (bia 0000.0ca5.2388)
MTU 1500 bytes, BW 10000 Kbit, DLY 1000 usec, rely 255/255, load 1/255
Encapsulation ARPA, loopback not set, keepalive set (10 sec)
ARP type: ARPA, ARP Timeout 4:00:00
Last input never, output never, output hang never
Last clearing of "show interface" counters 2:56:26
Output queue 0/40, 0 drops; input queue 0/75, 0 drops
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 input packets with dribble condition detected
0 packets output, 0 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets, 0 restarts
0 output buffer failures, 0 output buffers swapped out
Following are instructions for a basic configuration: enabling an interface and specifying IP routing. You might also need to enter other configuration subcommands depending upon the requirements for your system configuration.
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z.
Router(config)# interface tokenring 3/0/0
Router(config-int)# ip address ip address subnet mask
Router(config-int)# no shutdown
Router# copy running-config startup-config [OK] Router#
Router# quit
You have now completed configuring the Token Ring interfaces. Check the configuration as described in the section "Checking the Configuration."
After configuring the new interface(s) using either the setup command or the configure command, use the EXEC show commands to display status information.
Router# show configuration
Router# show interfaces
Router# show interface tokenring slot/port adapter/port
Router# show controllers token
This completes the installation and configuration procedure for the 4R port adapter and associated equipment.
The following sections discuss the 4T port adapter, which is shown in Figure 21.
The 4T port adapter (see Figure 21) is currently available on the VIP-4R/4T, which has two port adapter slots: port adapter slot 0 and port adapter slot 1. The 4T port adapter, installed in port adapter slot 1, provides up to four synchronous serial interfaces. Each serial interface allows a maximum bandwidth of 2.048 Mbps.
Figure 21 4T Port Adapter, Faceplate View
The 4T port adapter provides four channel-independent, synchronous serial ports that support full-duplex operation at T1 (1.544 Mbps) and E1 (2.048 Mbps) speeds. Each port supports any of the available interface types: Electronics Industries Association/Telecommunications Industries Association (EIA/TIA)-232, EIA/TIA-449, V.35, X.21, and EIA-530.
EIA/TIA-232, which is by far the most common interface standard in the U.S., supports unbalanced circuits at signal speeds up to 64 kbps. EIA/TIA-449, which supports balanced (EIA/TIA-422) and unbalanced (EIA/TIA-423) transmissions, is a faster (up to 2 Mbps) version of EIA/TIA-232 that provides more functions and supports transmissions over greater distances. The EIA/TIA-449 standard was intended to replace EIA/TIA-232, but it was not widely adopted. The resistance to convert to EIA/TIA-449 was due primarily to the large installed base of DB-25 hardware and to the larger size of the 37-pin EIA/TIA-449 connectors, which limited the number of connections possible (fewer than is possible with the smaller, 25-pin EIA/TIA-232 connector).
EIA-530, which supports balanced transmission, provides the increased functionality, speed, and distance of EIA/TIA-449 on the smaller, DB-25 connector used for EIA/TIA-232. The EIA-530 standard was created to support the more sophisticated circuitry of EIA/TIA-449 on the large number of existing EIA/TIA-232 (DB-25) hardware instead of the larger, 37-pin connectors used for EIA/TIA-449. Like EIA/TIA-449, EIA-530 refers to the electrical specifications of EIA/TIA-422 and EIA/TIA-423. The specification recommends a maximum speed of 2 Mbps for EIA-530. EIA-530 is used primarily in the United States.
The V.35 interface is most commonly used in the United States and throughout Europe, and is recommended for speeds up to 48 kbps.
The X.21 interface uses a 15-pin connection for balanced circuits and is commonly used in the United Kingdom to connect public data networks. X.21 relocates some of the logic functions to the data terminal equipment (DTE) and data communications equipment (DCE) interfaces and, as a result, requires fewer circuits and a smaller connector than EIA/TIA-232.
You can install 4T-configured VIPs in any available interface processor slot in the Cisco 7000 series and Cisco 7500 series routers; there are no restrictions on slot locations or sequence. All interface types except EIA-530 can be individually configured for operation with either external (DTE mode) or internal (DCE mode) timing signals; EIA-530 operates with external timing only. In addition, all VIP serial interface types support nonreturn to zero (NRZ) and nonreturn to zero inverted (NRZI) format, and both 16-bit and 32-bit cyclic redundancy checks (CRCs). The default configuration is for NRZ format and 16-bit CRC. You can change the default settings with software commands. (See the section "Configuring the 4T Interfaces" on page 60.)
There is no default mode or clock rate set on the VIP serial ports, although an internal clock signal is present on all ports for DCE support. The internal clock also allows you to perform local loopback tests without having to terminate the port or connect a cable. (All interface types except X.21 DTE support loopback.) To use the port as a DCE interface, you must set the clock rate and connect a DCE adapter cable. To use the port as a DTE interface, you need only connect a DTE adapter cable to the port. Because the serial adapter cables determine the mode and interface type, the 4T port adapter interface becomes a DTE when a DTE cable is connected to it.
If a DTE cable is connected to a port with a clock rate set, the DTE ignores the clock rate and uses the external clock signal that is sent from the remote DCE. For a brief description of the clockrate command, refer to "Configuring Timing (Clock) Signals" on page 65. For complete command descriptions and instructions, refer to the publications listed in the section "If You Need More Configuration Information" on page 2.
The following sections discuss specifications related to the 4T synchronous serial port adapter. Figure 22 shows the 4T port adapter installed on the VIP-4R/4T.

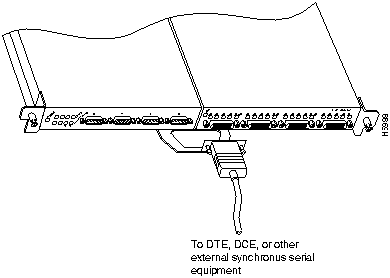

Figure 22 VIP with One 4R and One 4T Port Adapter Installed, Horizontal Orientation Shown
Serial signals can travel a limited distance at any given bit rate; generally, the slower the baud rate, the greater the distance. All serial signals are subject to distance limits beyond which a signal degrades significantly or is completely lost. Table 8 lists the IEEE-recommended maximum speeds and distances for each 4T port adapter serial interface type. The recommended maximum rate for V.35 is 2.048 Mbps.
Table 8 IEEE Standard EIA/TIA-449 Transmission Speed Versus Distance
| EIA/TIA-232 Distances | EIA/TIA-449, X.21, V.35, EIA-530 Distances | ||||
|---|---|---|---|---|---|
| Rate (bps) | Feet | Meters | Feet | Meters | |
| 2400 | 200 | 60 | 4,100 | 1,250 | |
| 4800 | 100 | 30 | 2,050 | 625 | |
| 9600 | 50 | 15 | 1,025 | 312 | |
| 19200 | 25 | 7.6 | 513 | 156 | |
| 38400 | 12 | 3.7 | 256 | 78 | |
| 56000 | 8.6 | 2.6 | 102 | 31 | |
| 1544000 (T1) | -- | -- | 50 | 15 | |
Balanced drivers allow EIA/TIA-449 signals to travel greater distances than EIA/TIA-232. The recommended distance limits for EIA/TIA-449 shown in Table 8 are also valid for V.35, X.21, and EIA-530. EIA/TIA-449 and EIA-530 support 2.048-Mbps rates, and V.35 supports 2.048-Mbps rates without any problems; we do not recommend exceeding published specifications for transmission speed versus distance. Do so at your own risk.
The 4T port adapter supports synchronous serial connections at speeds of up to 2 Mbps per interface; the speed depends on the type of electrical interface used. Use EIA/TIA-232 for speeds of 64 kilobits per second (kbps) and below, and use X.21, EIA/TIA-449, V.35, or EIA-530 for higher speeds.
The router (VIP) end of all EIA/TIA-232 adapter cables is a high-density 60-pin plug. The opposite (network) end of the adapter cable is a standard 25-pin D-shell connector (known as a DB-25) that is commonly used for EIA/TIA-232 connections. Figure 23 shows the connectors at the network end of the adapter cable. The system console and auxiliary ports on the RP in the Cisco 7000 series (or the RSP in the Cisco 7500 series) also use EIA/TIA-232 connections; however, the 4T port adapter interfaces support synchronous serial connections, and the console and auxiliary ports only support asynchronous connections. Use caution when connecting EIA/TIA-232 cables to the 4T receptacles.
Figure 23 EIA/TIA-232 Adapter Cable Connectors, Network End
The router (VIP) end of all EIA/TIA-449 adapter cables is a high-density 60-pin plug. The opposite (network) end of the adapter cable provides a standard 37-pin D-shell connector, which is commonly used for EIA/TIA-449 connections. Figure 24 shows the connectors at the network end of the adapter cable. EIA/TIA-449 cables are available as either DTE (DB-37 plug) or DCE (DB-37 receptacle).
Figure 24 EIA/TIA-449 Adapter Cable Connectors, Network End
The router (VIP) end of all V.35 adapter cables is a high-density 60-pin plug. The opposite (network) end of the adapter cable provides a standard 34-pin Winchester-type connector commonly used for V.35 connections. Figure 25 shows the connectors at the network end of the V.35 adapter cable. V.35 cables are available with a standard V.35 plug for DTE mode (CAB-V35MT=) or a V.35 receptacle for DCE mode (CAB-V35FC=).
Figure 25 V.35 Adapter Cable Connectors, Network End
The router (VIP) end of all X.21 adapter cables is a high-density 60-pin plug. The opposite (network) end of the adapter cable is a standard DB-15 connector. Figure 26 shows the connectors at the network end of the X.21 adapter cable. X.21 cables are available as either DTE (DB-15 plug) or DCE (DB-15 receptacle).
Figure 26 X.21 Adapter Cable Connectors, Network End
The EIA-530 adapter cable is available in DTE mode only. The router (VIP) end of the EIA-530 adapter cable is a high-density 60-pin plug. The opposite (network) end of the adapter cable is a standard DB-25 plug commonly used for EIA/TIA-232 connections. Figure 27 shows the DB-25 connector at the network end of the adapter cable.
Figure 27 EIA-530 Adapter Cable Connector, Network End (Available in DTE Only)
The 4T port adapter contains the enabled LED, standard on all port adapters, and a one status LED for each port. After system initialization, the enabled LED goes on to indicate that the 4T port adapter has been enabled for operation. (The LEDs are shown in Figure 28.)
Figure 28 LEDs on the 4T Port Adapter (Horizontal Orientation Shown)
The following conditions must be met before the enabled LED goes on:
If any of these conditions is not met, or if the initialization fails for other reasons, the enabled LED does not go on.
Table 9 lists the 4T port adapter LEDs and their indications.
| LED Label | DTE Function | DCE Function | Color and Function |
| TD | Transmit data out | Transmit data in | Green |
| TC | Transmit clock in | Transmit clock in (TXCE) | Green |
| RD | Receive data in | Receive data out | Green |
| RC | Receive clock in | Receive clock out | Green |
| LB/CD | -- | -- | Green: DTR, DSR, RTS, CTS, or DCD activeYellow: local loop or internal loop active |
| EN (enable) | -- | -- | Green: port adapter enabled |
The following sections describe the serial receptacles on the 4T port adapter, and the cables and pinouts for the various serial interface cables.
The 4T port adapter and adapter cables allow a high density of interface ports, regardless of the size of the connectors typically used with each electrical interface type.
All ports use an identical 60-pin, D-shell receptacle that supports all interface types: EIA/TIA-232, V.35, EIA/TIA-449, X.21, and EIA-530. Each port requires a serial adapter cable, which provides the interface between the high-density serial port and the standard connectors that are commonly used for each electrical interface type.
The network end of the cable is an industry-standard connector for the type of electrical interface that the cable supports. For most interface types, the adapter cable for DTE mode uses a plug at the network end, and the cable for DCE mode uses a receptacle at the network end. Exceptions are V.35 adapter cables, which are available with either a V.35 plug or a receptacle for either mode, and the EIA-530 adapter cable, which is available only in DTE mode with a DB-25 plug at the network end. The mode is labeled on the molded plastic connector shell at the ends of all cables except V.35 (which uses the standard Winchester block-type connector instead of a molded plastic D-shell).
Following are the available interface cable options for the mode and network-end connectors for each cable:
For cable pinouts, refer to the section "Serial Port Adapter Cable Pinouts."
Figure 29 shows the serial port adapter cables for connection from the 4T port adapters to your network.
Figure 29 Serial Port Adapter Cables
Metric (M3) thumbscrews are included with each port adapter cable to allow connections to devices that use metric hardware. Because the 4T port adapter uses a special, high-density port that requires special adapter cables for each electrical interface type, we recommend that you obtain serial interface cables from the factory.
The 4T port adapter supports EIA/TIA-232, EIA/TIA-449, X.21, V.35, and EIA-530 serial interfaces.
All 4T ports use a a 60-pin receptacle that supports all available interface types. A special serial adapter cable, which is required for each port, determines the electrical interface type and mode of the interface. The router (VIP) end of all of the adapter cables is a 60-pin plug; the connectors at the network end are the standard connectors used for the respective interfaces.
All interface types except EIA-530 are available in DTE or DCE format: DTE with a plug connector at the network end and DCE with a receptacle at the network end. V.35 is available in either mode with either gender at the network end. EIA-530 is available in DTE only.
The tables that follow list the signal pinouts for both the DTE and DCE mode serial port adapter cables, for each of the following 4T port adapter interface types:
Table 10 EIA/TIA-232 Adapter Cable Signals
| DTE Cable | DCE Cable | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VIP End, HD(1) 60-Position Plug |
Network End, DB-25 Plug |
VIP End, HD 60-Position Plug |
Network End, DB-25 Receptacle |
||||||||
| Signal | Pin | Pin | Signal | Signal | Pin | Pin | Signal | ||||
| Shield ground | 46 | 1 | Shield ground | Shield ground | 46 | 1 | Shield ground | ||||
| TxD/RxD | 41 | ---> | 2 | TxD | RxD/TxD | 36 | <--- | 2 | TxD | ||
| RxD/TxD | 36 | <--- | 3 | RxD | TxD/RxD | 41 | ---> | 3 | RxD | ||
| RTS/CTS | 42 | ---> | 4 | RTS | CTS/RTS | 35 | <--- | 4 | RTS | ||
| CTS/RTS | 35 | <--- | 5 | CTS | RTS/CTS | 42 | ---> | 5 | CTS | ||
| DSR/DTR | 34 | <--- | 6 | DSR | DTR/DSR | 43 | ---> | 6 | DSR | ||
| Circuit ground | 45 | 7 | Circuit ground | Circuit ground | 45 | 7 | Circuit ground | ||||
| DCD/LL | 33 | <--- | 8 | DCD | LL/DCD | 44 | ---> | 8 | DCD | ||
| TxC/NIL | 37 | <--- | 15 | TxC | TxCE/TxC | 39 | ---> | 15 | TxC | ||
| RxC/TxCE | 38 | <--- | 17 | RxC | NIL/RxC | 40 | ---> | 17 | RxC | ||
| LL/DCD | 44 | ---> | 18 | LTST | DCD/LL | 33 | <--- | 18 | LTST | ||
| DTR/DSR | 43 | ---> | 20 | DTR | DSR/DTR | 34 | <--- | 20 | DTR | ||
| TxCE/TxC | 39 | ---> | 24 | TxCE | RxC/TxCE | 38 | <--- | 24 | TxCE | ||
| Mode 0GroundMode_DCE | 505152 | Shorting group |
Mode 0Ground | 5051 | Shorting group |
||||||
Table 11 EIA/TIA-449 Adapter Cable Signals
| DTE Cable | DCE Cable | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VIP End, HD(1) 60-Position Plug |
Network End, DB-37 Plug |
VIP End, HD 60-Position Plug |
Network End, DB-37 Receptacle |
||||||||
| Signal | Pin | Pin | Signal | Signal | Pin | Pin | Signal | ||||
| Shield ground | 46 | 1 | Shield ground | Shield ground | 46 | 1 | Shield ground | ||||
| TxD/RxD+ | 11 | ---> | 4 | SD+ | RxD/TxD+ | 28 | <--- | 4 | SD+ | ||
| TxD/RxD-- | 12 | ---> | 22 | SD-- | RxD/TxD-- | 27 | <--- | 22 | SD-- | ||
| TxC/RxC+ | 24 | <--- | 5 | ST+ | TxCE/TxC+ | 13 | ---> | 5 | ST+ | ||
| TxC/RxC-- | 23 | <--- | 23 | ST-- | TxCE/TxC-- | 14 | ---> | 23 | ST-- | ||
| RxD/TxD+ | 28 | <--- | 6 | RD+ | TxD/RxD+ | 11 | ---> | 6 | RD+ | ||
| RxD/TxD-- | 27 | <--- | 24 | RD-- | TxD/RxD-- | 12 | ---> | 24 | RD-- | ||
| RTS/CTS+ | 9 | ---> | 7 | RS+ | CTS/RTS+ | 1 | <--- | 7 | RS+ | ||
| RTS/CTS-- | 10 | ---> | 25 | RS-- | CTS/RTS-- | 2 | <--- | 25 | RS-- | ||
| RxC/TxCE+ | 26 | <--- | 8 | RT+ | TxC/RxC+ | 24 | ---> | 8 | RT+ | ||
| RxC/TxCE-- | 25 | <--- | 26 | RT-- | TxC/RxC-- | 23 | ---> | 26 | RT-- | ||
| CTS/RTS+ | 1 | <--- | 9 | CS+ | RTS/CTS+ | 9 | ---> | 9 | CS+ | ||
| CTS/RTS-- | 2 | <--- | 27 | CS-- | RTS/CTS-- | 10 | ---> | 27 | CS-- | ||
| LL/DCD | 44 | ---> | 10 | LL | NIL/LL | 29 | ---> | 10 | LL | ||
| Circuit ground | 45 | 37 | SC | Circuit ground | 30 | 37 | SC | ||||
| DSR/DTR+ | 3 | <--- | 11 | ON+ | DTR/DSR+ | 7 | ---> | 11 | ON+ | ||
| DSR/DTR-- | 4 | <--- | 29 | ON-- | DTR/DSR-- | 8 | ---> | 29 | ON-- | ||
| DTR/DSR+ | 7 | ---> | 12 | TR+ | DSR/DTR+ | 3 | <--- | 12 | TR+ | ||
| DTR/DSR-- | 8 | ---> | 30 | TR-- | DSR/DTR-- | 4 | <--- | 30 | TR-- | ||
| DCD/DCD+ | 5 | <--- | 13 | RR+ | DCD/DCD+ | 5 | ---> | 13 | RR+ | ||
| DCD/DCD-- | 6 | <--- | 31 | RR-- | DCD/DCD-- | 6 | ---> | 31 | RR-- | ||
| TxCE/TxC+ | 13 | ---> | 17 | TT+ | RxC/TxCE+ | 26 | <--- | 17 | TT+ | ||
| TxCE/TxC-- | 14 | ---> | 35 | TT-- | RxC/TxCE-- | 25 | <--- | 35 | TT-- | ||
| Circuit ground | 15 | 19 | SG | Circuit ground | 15 | 19 | SG | ||||
| Circuit ground | 16 | 20 | RC | Circuit ground | 16 | 20 | RC | ||||
| Mode 1Ground | 4948 | Shorting group | Mode 1Ground | 4948 | Shorting group | ||||||
| GroundMode_DCE | 5152 | Shorting group | |||||||||
Table 12 X.21 Adapter Cable Signals
| DTE Cable | DCE Cable | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| VIP End, HD(1) 6-Position Plug |
Network End, DB-15 Plug |
VIP End, HD 60Position Plug |
Network End, DB-15 Receptacle |
|||||||
| Signal | Pin | Pin | Signal | Signal | Pin | Pin | Signal | |||
| Shield ground | 46 | 1 | Shield ground | Shield ground | 46 | 1 | Shield ground | |||
| TxD/RxD+ | 11 | ---> | 2 | Transmit+ | RxD/TxD+ | 11 | ---> | 2 | Transmit+ | |
| TxD/RxD-- | 12 | ---> | 9 | Transmit-- | RxD/TxD-- | 12 | ---> | 9 | Transmit-- | |
| RTS/CTS+ | 9 | ---> | 3 | Control+ | CTS/RTS+ | 9 | ---> | 3 | Control+ | |
| RTS/CTS -- | 10 | ---> | 10 | Control-- | CTS/RTS -- | 10 | ---> | 10 | Control-- | |
| RxD/TxD+ | 28 | <--- | 4 | Receive+ | TxD/RxD+ | 28 | <--- | 4 | Receive+ | |
| RxD/TxD-- | 27 | <--- | 11 | Receive-- | TxD/RxD-- | 27 | <--- | 11 | Receive-- | |
| CTS/RTS+ | 1 | <--- | 5 | Indication+ | RTS/CTS+ | 1 | <--- | 5 | Indication+ | |
| CTS/RTS -- | 2 | <--- | 12 | Indication-- | RTS/CTS-- | 2 | <--- | 12 | Indication-- | |
| RxC/TxCE+ | 26 | <--- | 6 | Timing+ | TxC/RxC+ | 26 | <--- | 6 | Timing+ | |
| RxC/TxCE-- | 25 | <--- | 13 | Timing-- | TxC/RxC -- | 25 | <--- | 13 | Timing-- | |
| Circuit ground | 15 | 8 | Circuit ground | Circuit ground | 15 | 8 | Circuit ground | |||
| GroundMode_2 | 4847 | Shorting group | GroundMode_2 | 4847 | Shorting group | |||||
| GroundMode_DCE | 5152 | Shorting group | GroundMode_DCE | 5152 | ||||||
Table 13 V.35 Adapter Cable Signals
| DTE Cable | DCE Cable | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| VIP End, HD(1) 60-Position Plug |
Network End, 34-Position Plug | VIP End, HD 60-Position Plug |
Network End, 34-Position Receptacle | |||||||
| Signal | Pin | Pin | Signal | Signal | Pin | Pin | Signal | |||
| Shield ground | 46 | A | Frame ground | Shield ground | 46 | A | Frame ground | |||
| Circuit ground | 45 | B | Circuit ground | Circuit ground | 45 | B | Circuit ground | |||
| RTS/CTS | 42 | ---> | C | RTS | CTS/RTS | 35 | <--- | C | RTS | |
| CTS/RTS | 35 | <--- | D | CTS | RTS/CTS | 42 | ---> | D | CTS | |
| DSR/DTR | 34 | <--- | E | DSR | DTR/DSR | 43 | ---> | E | DSR | |
| DCD/LL | 33 | <--- | F | RLSD | LL/DCD | 44 | ---> | F | RLSD | |
| DTR/DSR | 43 | ---> | H | DTR | DSR/DTR | 34 | <--- | H | DTR | |
| LL/DCD | 44 | ---> | K | LT | DCD/LL | 33 | <--- | K | LT | |
| TxD/RxD+ | 18 | ---> | P | SD+ | RxD/TxD+ | 28 | <--- | P | SD+ | |
| TxD/RxD-- | 17 | ---> | S | SD-- | RxD/TxD-- | 27 | <--- | S | SD-- | |
| RxD/TxD+ | 28 | <--- | R | RD+ | TxD/RxD+ | 18 | ---> | R | RD+ | |
| RxD/TxD-- | 27 | <--- | T | RD-- | TxD/RxD-- | 17 | ---> | T | RD-- | |
| TxCE/TxC+ | 20 | ---> | U | SCTE+ | RxC/TxCE+ | 26 | <--- | U | SCTE+ | |
| TxCE/TxC-- | 19 | ---> | W | SCTE-- | RxC/TxCE-- | 25 | <--- | W | SCTE-- | |
| RxC/TxCE+ | 26 | <--- | V | SCR+ | NIL/RxC+ | 22 | ---> | V | SCR+ | |
| RxC/TxCE-- | 25 | <--- | X | SCR-- | NIL/RxC-- | 21 | ---> | x | SCR-- | |
| TxC/RxC+ | 24 | <--- | Y | SCT+ | TxCE/TxC+ | 20 | ---> | Y | SCT+ | |
| TxC/RxC-- | 23 | <--- | AA | SCT-- | TxCE/TxC-- | 19 | ---> | AA | SCT-- | |
| Mode 1Ground | 4948 | Shorting group | Mode 1Ground | 4948 | Shorting group | |||||
| Mode 0GroundMode_DCE | 505152 | Shorting group | Mode 0Ground | 5051 | Shorting group | |||||
| TxC/NILRxC/TxCERxC/TxDGround | 53545556 | Shorting group | TxC/NILRxC/TxCERxC/TxDGround | 53545556 | Shorting group | |||||
Table 14 EIA-530 DTE Adapter Cable Signals
| VIP End, HD(1) 60-Position Plug |
Network End, DB-25 Plug |
|||
|---|---|---|---|---|
| Signal | Pin | Pin | Signal | |
| Shield ground | 46 | 1 | Shield ground | |
| TxD/RxD+ | 11 | ---> | 2 | TxD+ |
| TxD/RxD-- | 12 | ---> | 14 | TxD-- |
| RxD/TxD+ | 28 | <--- | 3 | RxD+ |
| RxD/TxD-- | 27 | <--- | 16 | RxC-- |
| RTS/CTS+ | 9 | ---> | 4 | RTS+ |
| RTS/CTS-- | 10 | ---> | 19 | RTS-- |
| CTS/RTS+ | 1 | <--- | 5 | CTS+ |
| CTS/RTS-- | 2 | <--- | 13 | CTS-- |
| DSR/DTR+ | 3 | <--- | 6 | DSR+ |
| DSR/DTR-- | 4 | <--- | 22 | DSR-- |
| DCD/DCD+ | 5 | <--- | 8 | DCD+ |
| DCD/DCD-- | 6 | <--- | 10 | DCD-- |
| TxC/RxC+ | 24 | <--- | 15 | TxC+ |
| TxC/RxC-- | 23 | <--- | 12 | TxC-- |
| RxC/TxCE+ | 26 | <--- | 17 | RxC+ |
| RxC/TxCE-- | 25 | <--- | 9 | RxC-- |
| LL/DCD | 44 | ---> | 18 | LL |
| Circuit ground | 45 | 7 | Circuit ground | |
| DTR/DSR+ | 7 | ---> | 20 | DTR+ |
| DTR/DSR-- | 8 | ---> | 23 | DTR-- |
| TxCE/TxC+ | 13 | ---> | 24 | TxCE+ |
| TxCE/TxC-- | 14 | ---> | 11 | TxCE-- |
| Mode_1GroundMode_2 | 494847 | Shorting group |
||
| GroundMode_DCE | 5152 | Shorting group | ||
On a single 4T port adapter, you can use up to four synchronous-serial connections.
Connect serial cables to the 4T port adapter as follows:
Figure 30 Connecting 4T Serial Cables (Horizontal Orientation---Shown without Handles)
Figure 31 Connecting Serial Port Adapter Cables
If you installed a new VIP or if you want to change the configuration of an existing interface, you must enter Configuration mode to configure the new interfaces. If you replaced a VIP that was previously configured, the system will recognize the new 4T port adapter interfaces and bring each of them up in their existing configuration.
After you verify that the new 4T port adapter is installed correctly (the enabled LED goes on), use the privileged-level configure command to configure the new interfaces. Be prepared with the information you will need, such as the following:
Refer to the appropriate software documentation for descriptions of the configuration options available and instructions for configuring a serial interface.
The following sections describe the commands for configuring an external clock signal for a DCE interface and for configuring a port for NRZI encoding or 32-bit CRC. Configuration commands are executed from the privileged level of the EXEC command interpreter, which usually requires password access. (See the section "Using the EXEC Command Interpreter" on page 69.) Refer to the description that follows and contact your system administrator, if necessary, to obtain access.
The following section describes how to identify chassis slot, port adapter, and serial interface port numbers.
In the router, physical port addresses specify the actual physical location of each interface port on the router interface processor end. (See Figure 32.) This address is composed of a three-part number in the format chassis slot number/port adapter number/interface port number.
The first number identifies the chassis slot in which the VIP is installed (as shown in the example system in Figure 32). The second number identifies the physical port adapter number on the VIP, and is either 0 or 1. The interface ports on each 4T port adapter are always numbered in sequence as interface 0 through 3.
Interface ports on the 4T port adapter maintain the same address regardless of whether other interface processors are installed or removed. However, when you move a VIP to a different slot, the first number in the address changes to reflect the new slot number.
Figure 32 shows some of the slot port adapter and interface ports of a sample Cisco 7505 system. For example, on a VIP-4R/4T VIP in slot 3, the addresses of the 4T port adapter are 3/1/0 through 3/1/3 (chassis slot 3, port adapter slot 1, and interface ports 0 through 3). The first port adapter slot number is always 0. The individual interface port numbers always begin with 0. The number of additional ports depends on the number of ports on a port adapter.
Figure 32 4T Serial Interface Port Number Example (Cisco 7505 Shown)
You can identify interface ports by physically checking the slot/port adapter/interface port location on the back of the router or by using software commands to display information about a specific interface or all interfaces in the router.
To display information about a specific interface, use the show interfaces command with the interface type and port address in the format show interfaces [type slot/port adapter/port].
Following is an example of how the show interfaces [type slot/port adapter/port] command displays status information (including the physical slot and port address) for the interfaces you specify. In these examples, most of the status information for each interface is omitted, and the four serial interfaces (0--3) are in chassis slot 3, in port adapter slot 1. (Interfaces are administratively shut down until you enable them.)
Router# sh int serial 3/1/0 Serial3/1/1 is administratively down, line protocol is down Hardware is cyBus Serial, address is 0000.0ca5.2300 (bia 0000.0ca5.2389) MTU 1500 bytes, BW 10000 Kbit, DLY 1000 usec, rely 255/255, load 1/255 Encapsulation ARPA, loopback not set, keepalive set (10 sec) Router# sh int serial 3/1/1 Serial3/1/2 is administratively down, line protocol is down Hardware is cyBus Serial, address is 0000.0ca5.2300 (bia 0000.0ca5.238a) MTU 1500 bytes, BW 10000 Kbit, DLY 1000 usec, rely 255/255, load 1/255 Encapsulation ARPA, loopback not set, keepalive set (10 sec) Router# sh int serial 3/1/2 Serial3/1/3 is administratively down, line protocol is down Hardware is cyBus Serial, address is 0000.0ca5.2300 (bia 0000.0ca5.238b) MTU 1500 bytes, BW 10000 Kbit, DLY 1000 usec, rely 255/255, load 1/255 Encapsulation ARPA, loopback not set, keepalive set (10 sec) Router# sh int serial 3/1/3 Serial3/1/3 is administratively down, line protocol is down Hardware is cyBus Serial, address is 0000.0ca5.2300 (bia 0000.0ca5.238b) MTU 1500 bytes, BW 10000 Kbit, DLY 1000 usec, rely 255/255, load 1/255 Encapsulation ARPA, loopback not set, keepalive set (10 sec)
Serial interface port adapters are always numbered as port adapter 1 because VIPs currently support only one 4T port adapter with the VIP-4R/4T configuration, and the 4T port adapter is always in the second port adapter slot location (port adapter slot 1). With this VIP configuration, a 4T port adapter is always in port adapter slot 0. Refer to Table 15, Table 16, Table 17, Table 18, and Table 19 for the 4T port numbers associated with the interface processor slots in your chassis.
Table 15 4T Slot, Port Adapter, and Port Numbers in a Cisco 7000
| Slot 0/ Adapter 1/ Port n | Slot 1/ Adapter 1/ Port n | Slot 2/ Adapter 1/ Port n | Slot 3/ Adapter 1/ Port n | Slot 4/ Adapter 1/ Port n |
|---|---|---|---|---|
| 0/1/0 | 1/1/0 | 2/1/0 | 3/1/0 | 4/1/0 |
| 0/1/1 | 1/1/1 | 2/1/1 | 3/1/1 | 4/1/1 |
| 0/1/2 | 1/1/2 | 2/1/2 | 3/1/2 | 4/1/2 |
| 0/1/3 | 1/1/3 | 2/1/3 | 3/1/3 | 4/1/3 |
Table 16 4T Slot, Port Adapter, and Port Numbers in a Cisco 7010
| Slot 0/ Adapter 1/ Port n | Slot 1/ Adapter 1/ Port n | Slot 2/ Adapter 1/ Port n |
|---|---|---|
| 0/1/0 | 1/1/0 | 2/1/0 |
| 0/1/1 | 1/1/1 | 2/1/1 |
| 0/1/2 | 1/1/2 | 2/1/2 |
| 0/1/3 | 1/1/3 | 2/1/3 |
Table 17 4T Slot, Port Adapter, and Port Numbers in a Cisco 7505
| Slot 0/ Adapter 1/ Port n | Slot 1/ Adapter 1/ Port n | Slot 2/ Adapter 1/ Port n | Slot 3/ Adapter 1/ Port n |
|---|---|---|---|
| 0/1/0 | 1/1/0 | 2/1/0 | 3/1/0 |
| 0/1/1 | 1/1/1 | 2/1/1 | 3/1/1 |
| 0/1/2 | 1/1/2 | 2/1/2 | 3/1/2 |
| 0/1/3 | 1/1/3 | 2/1/3 | 3/1/3 |
Table 18 4T Slot, Port Adapter, and Port Numbers in a Cisco 7507
| Slot 0/ Adapter 1/ Port n | Slot 1/ Adapter 1/ Port n | Slot 4/ Adapter 1/ Port n | Slot 5/ Adapter 1/ Port n | Slot 6/ Adapter 1/ Port n |
|---|---|---|---|---|
| 0/1/0 | 1/1/0 | 4/1/0 | 5/1/0 | 6/1/0 |
| 0/1/1 | 1/1/1 | 4/1/1 | 5/1/1 | 6/1/1 |
| 0/1/2 | 1/1/2 | 4/1/2 | 5/1/2 | 6/1/2 |
| 0/1/3 | 1/1/3 | 4/1/3 | 5/1/3 | 6/1/3 |
Table 19 4T Slot, Port Adapter, and Port Numbers in a Cisco 7513
| Slot 0 / Adapter(1)/Port | Slot 1 / Adapter/Port n | Slot 2/ Adapter/Port n | Slot 3/ Adapter/Port n | Slot 4/ Adapter/Port n | Slot 5/ Adapter/ Port n | Slot 8/ Adapter/Port n | Slot 9/ Adapter/Port n | Slot 10/ Adapter/Port n | Slot 11/ Adapter/Port n | Slot 12/ Adapter/ Port n |
|---|---|---|---|---|---|---|---|---|---|---|
| 0/1/0 | 1/1/0 | 2/1/0 | 3/1/0 | 4/1/0 | 5/1/0 | 8/1/0 | 9/1/0 | 10/1/0 | 11/1/0 | 12/1/0 |
| 0/1/1 | 1/1/1 | 2/1/1 | 3/1/1 | 4/1/1 | 5/1/1 | 8/1/1 | 9/1/1 | 10/1/1 | 11/1/1 | 12/1/1 |
| 0/1/2 | 1/1/2 | 2/1/2 | 3/1/2 | 4/1/2 | 5/1/2 | 8/1/2 | 9/1/2 | 10/1/2 | 11/1/2 | 12/1/2 |
| 0/1/3 | 1/1/3 | 2/1/3 | 3/1/3 | 4/1/3 | 5/1/3 | 8/1/3 | 9/1/3 | 10/1/3 | 11/1/3 | 12/1/3 |
With the show interfaces type slot/port adapter/port command, use arguments such as the interface type (serial, and so forth) and the slot, port adapter, and port numbers (slot/port adapter/port) to display information about a specific serial interface only.
The following example of the show interfaces serial slot/port adapter/port command shows all of the information specific to the first 4T interface port (interface port 0) in chassis slot 3, port adapter slot 1:
Router# sh int serial 3/1/0
Serial3/1/0 is administratively down, line protocol is down
Hardware is cyBus Serial, address is 0000.0ca5.2300 (bia 0000.0ca5.2388)
MTU 1500 bytes, BW 10000 Kbit, DLY 1000 usec, rely 255/255, load 1/255
Encapsulation ARPA, loopback not set, keepalive set (10 sec)
ARP type: ARPA, ARP Timeout 4:00:00
Last input never, output never, output hang never
Last clearing of "show interface" counters 2:56:26
Output queue 0/40, 0 drops; input queue 0/75, 0 drops
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 input packets with dribble condition detected
0 packets output, 0 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets, 0 restarts
0 output buffer failures, 0 output buffers swapped out
For complete VIP command descriptions and examples, refer to the publications listed in the section "If You Need More Configuration Information" on page 2.
The show version (or show hardware) command displays the configuration of the system hardware (the number of each interface processor type installed), the software version, the names and sources of configuration files, and the boot images. Following is an example of the show version command used with a Cisco 7500 series system:
Router# show version Cisco Internetwork Operating System Software IOS (tm) GS Software (RSP-A), Version 11.1(1) [mpo 105] Copyright (c) 1986-1995 by cisco Systems, Inc. Compiled Fri 06-Oct-95 12:22 by mpo Image text-base: 0x600088A0, data-base: 0x605A4000 ROM: System Bootstrap, Version 5.3(16645) [biff 571], INTERIM SOFTWARE ROM: GS Bootstrap Software (RSP-BOOT-M), Version 11.0(1.2), MAINTENANCE INTERIME honda uptime is 4 hours, 22 minutes System restarted by reload System image file is "slot0:rsp-a111-1", booted via slot0 cisco RSP2 (R4600) processor with 32768K bytes of memory. R4600 processor, Implementation 32, Revision 2.0 Last reset from power-on G.703/E1 software, Version 1.0. Bridging software. X.25 software, Version 2.0, NET2, BFE and GOSIP compliant. Chassis Interface. 1 VIP controllers (4 Serial)(4 Token Ring). 4 Network Serial interfaces. 4 Token Ring/IEEE 802.5 interfaces. 125K bytes of non-volatile configuration memory. 20480K bytes of Flash PCMCIA card at slot 0 (Sector size 128K). 8192K bytes of Flash internal SIMM (Sector size 256K). No slave installed in slot 6. Configuration register is 0x2
All interfaces support both DTE and DCE mode, depending on the mode of the interface cable attached to the port. To use a port as a DTE interface, you need only connect a DTE adapter cable to the port. When the system detects the DTE mode cable, it automatically uses the external timing signal. To use a port in DCE mode, you must connect a DCE interface cable and set the clock speed with the clockrate configuration command. You must also set the clock rate to perform a loopback test. This section describes how to set the clock rate on a DCE port and, if necessary, how to invert the clock to correct a phase shift between the data and clock signals.
All DCE interfaces require a noninverted internal transmit clock signal, which is generated by the 4T port adapter. The default operation on an 4T port adapter DCE interface is for the DCE device (4T port adapter) to generate its own clock signal (TxC) and send it to the remote DTE. The remote DTE device returns the clock signal to the DCE (4T port adapter interface). The clockrate command specifies the rate as a bits-per-second value. In the following example, the clock rate for the serial interface on a 4T port adapter on a VIP in interface processor slot 3 (3/1/0) is defined as 72 kbps:
Router(config)# interface serial 3/1/0
Router(config-int)# clockrate 72000
Use the no clockrate command to remove the clock rate.
Following are the acceptable clockrate settings:
1200, 2400, 4800, 9600, 19200
38400 , 56000 , 64000 , 72000 , 125000
148000 , 500000, 800000, 1000000, 1300000, 2000000
Speeds above 64 kbps (64000) are not appropriate for EIA/TIA-232. On all interface types, faster speeds might not work if your cable is too long.
Systems that use long cables may experience high error rates when operating at the higher transmission speeds. Slight variances in cable construction, temperature, and other factors can cause the clock and data signals to shift out of phase. If an 4T port adapter DCE port is reporting a high number of error packets, a phase shift might be the problem. Inverting the clock can often correct this shift.
When the 4T port adapter interface is a DTE, the invert-transmit-clock command inverts the TxC signal it receives from the remote DCE. When the 4T port adapter interface is a DCE, this command inverts the clock signal to the remote DTE port. Use the no invert-transmit-clock command to change the clock signal back to its original phase.
All interfaces support both NRZ and NRZI formats. Both formats use two different voltage levels for transmission. NRZ signals maintain constant voltage levels with no signal transitions (no return to a zero voltage level) during a bit interval and are decoded using absolute values (0 and 1). NRZI uses the same constant signal levels but interprets the presence of data at the beginning of a bit interval as a signal transition and the absence of data as no transition. NRZI uses differential encoding to decode signals rather than determining absolute values.
NRZ format, the factory default on all interfaces, is most common. NRZI format, which is configured with a software command, is commonly used with EIA/TIA-232 connections in IBM environments.
To enable NRZI encoding on any interface, specify the slot and port address of the interface followed by the command nrzi-encoding. Enter Ctrl-Z when you have finished with the configuration change. In the example that follows, the first serial port on a 4T port adapter in interface processor slot 3 is configured for NRZI encoding:
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)# interface serial 3/1/0 Router(config-int)# nrzi-encoding Router(config-int)# ^Z
To disable NRZI encoding on a port, specify the slot and port address and use the no nrzi-encoding command. For complete command descriptions and instructions, refer to the related software documentation.
CRC is an error-checking technique that uses a calculated numeric value to detect errors in transmitted data. All interfaces use a 16-bit CRC by default, but also support a 32-bit CRC. The sender of a data frame divides the bits in the frame message by a predetermined number to calculate a remainder or frame check sequence (FCS). Before it sends the frame, the sender appends the FCS value to the message so that the frame contents are exactly divisible by the predetermined number. The receiver divides the frame contents by the same predetermined number that the sender used to calculate the FCS. If the result is not 0, the receiver assumes that a transmission error occurred and sends a request to the sender to resend the frame.
The designators 16 and 32 indicate the number of check digits per frame that are used to calculate the FCS. CRC-16, which transmits streams of 8-bit characters, generates a 16-bit FCS. CRC-32, which transmits streams of 16-bit characters, generates a 32-bit FCS. CRC-32 transmits longer streams at faster rates and, therefore, provides better ongoing error correction with fewer retransmissions. Both the sender and the receiver must use the same setting.
The default for all serial interfaces is for 16-bit CRC. To enable 32-bit CRC on an interface, specify the slot and port address of the interface followed by the command crc32. In the example that follows, the first serial port on an 4T port adapter on a VIP in interface processor slot 3 is configured for 32-bit CRC:
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)# interface serial 3/1/0 Router(config-int)# crc32 Router(config-int)# ^Z
To disable CRC-32 and return to the default CRC-16 setting, specify the slot and port address and use the no crc32 command. For command descriptions, refer to the related software documentation.
The port adapter cable connected to each port determines the electrical interface type and mode of the port. The default mode of the ports is DCE, which allows you to perform a loopback test on any port without having to attach a port adapter cable. Although DCE is the default, there is no default clock rate set on the interfaces. When there is no cable attached to a port, the software actually identifies the port as Universal, Cable Unattached rather than either a DTE or DCE interface.
Following is an example of the show controller cbus command that shows an interface port (2/1/0) that has an EIA/TIA-232 DTE cable attached, and a second port (2/1/1) that does not have a cable attached:
Router# show controller cbus
slot2: VIP, hw 2.1, sw 200.03, ccb 5800FF50, cmdq 48000090, vps 8192
software loaded from system
FLASH ROM version 255.255, VPLD version 20.1
4T HW Revision 121, SW Revision 216, Unresponsive 0
Interface 24- Serial2/1/0, electrical interface is RS-232 DTE
31 buffer RX queue threshold, 101 buffer TX queue limit, buffer size 1520
Transmitter delay is 0 microseconds
Interface 24- Serial2/1/1, electrical interface is Universal (cable unattached)
31 buffer RX queue threshold, 101 buffer TX queue limit, buffer size 1520
To change the electrical interface type or mode of a port online, you replace the serial adapter cable and use software commands to restart the interface and, if necessary, reconfigure the port for the new interface. At system startup or restart, the VIP polls the interfaces and determines the electrical interface type of each port (according to the type of port adapter cable attached).
However, it does not necessarily repoll an interface when you change the adapter cable online. To ensure that the system recognizes the new interface type, shut down and reenable the interface after changing the cable.
Perform the following steps to change the mode or interface type of a port by replacing the adapter cable. First replace the cable, then shut down and bring up the interface with the new cable attached so that the system recognizes the new interface. If you are replacing a cable with one of the same interface type and mode, these steps are not necessary (simply replace the cable without interrupting operation).
Router> enable Password: Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)# int serial 3/1/0 Router(config-int)# shutdown Router(config-int)# ^Z Router# write memory
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)# int serial 3/1/0 Router(config-int)# no shutdown Router(config-int)# ^Z
These steps will prompt the system to poll the interface and recognize new interface immediately.
When you configure a port for a DCE interface for the first time, or when you set up a loopback test, you must set the clock rate for the port. When you connect a DCE cable to a port, the interface will remain down, the clock LEDs will remain off, and the interface will not function until you set a clock rate (regardless of the DCE mode default).
If you are changing the mode of the interface from DCE to DTE, you do not need to change the clock rate for the port. After you replace the DCE cable with a DTE cable and the system recognizes the interface as a DTE, it will use the external clock signal from the remote DCE device and ignore the internal clock signal that the DCE interface normally uses. Therefore, once you configure the clock rate on a port for either a DCE interface or loopback, you can leave the clock rate configured and still use that port as a DTE interface.
Before you use the configure command, you must enter the privileged level of the EXEC command interpreter with the enable command. The system will prompt you for a password if one has been set.
The system prompt for the privileged level ends with a pound sign (#) instead of an angle bracket (>). At the console terminal, enter the privileged level as follows:
Router> enable
Password:
Router#
Proceed to the following section to configure the new interfaces.
Before you remove an interface that you will not replace, or replace port adapters, shut down (disable) the interfaces to prevent anomalies when you reinstall the new or reconfigured interface processor. When you shut down an interface, it is designated administratively down in the show command displays.
Follow these steps to shut down an interface:
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)#
Router(config)# interface serial 1/1/0
Router(config-int)# shutdown
Router(config-int)# int serial 1/1/0 Router(config-int)# shutdown Router(config-int)# int serial 1/1/1 Router(config-int)# shutdown Router(config-int)# ^Z Router#
Router# copy running-config startup-config [OK] Router#
Router# show int serial 1/1/0 Serial 1/1/0 is administratively down, line protocol is down Hardware is cxBus VIP [display text omitted]
Router(config)# int serial 1/1/0 Router(config-int)# no shutdown Router(config-int)# ^Z Router# copy running-config startup-config [OK] Router# show int serial 1/1/0 Serial 1/1/0 is up, line protocol is up Hardware is cxBus VIP [display text omitted]
For complete descriptions of software configuration commands, refer to the publications listed in the section "If You Need More Configuration Information" on page 2.
Following are instructions for a basic configuration: enabling an interface, specifying IP routing, and setting up external timing on a DCE interface. You might also need to enter other configuration subcommands, depending on the requirements for your system configuration and the protocols you plan to route on the interface. For complete descriptions of configuration subcommands and the configuration options available for serial interfaces, refer to the appropriate software documentation.
Cisco 7000 series and Cisco 7500 series routers identify an interface address by its slot number and port number (port numbers 0 through 7, depending on the interface processor type) in the format slot/port. Each 4T port adapter contains four serial interfaces.
Ports are numbered sequentially beginning with either the top port (in the Cisco 7000, Cisco 7507, and Cisco 7513) or the left-most port (in the Cisco 7010, and the Cisco 7505), which is always port (interface) 0. For example, the slot/port adapter/port address of the first interface on a VIP installed in interface processor slot 1 is 1/1/0, and the adjacent port on the same VIP is 1/1/1.
The following steps describe a basic configuration. Press the Return key after each step unless otherwise noted.
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)#
Router(config)# interface serial 1/1/0
Router(config-int)# ip address 145.22.4.67 255.255.255.0
Router(config-int)# clockrate 72000
Router(config-int)# no shutdown
Router(config-int)# ^z
Router# copy running-config startup-config [OK] Router#
Router# disable Router>
To check the interface configuration using show commands, proceed to the section "Checking the Configuration" on page 72.
After configuring the new interface, use the show commands to display the status of the new interface or all interfaces.
The following steps use show commands to verify that the new interfaces are configured and operating correctly.
If the interface is down and you configured it as up, or if the displays indicate that the hardware is not functioning properly, ensure that the network interface is properly connected and terminated. If you still have problems bringing the interface up, contact a customer service representative for assistance.
The packet internet groper (ping) and loopback commands allow you to verify that an interface port is functioning properly and to check the path between a specific port and connected devices at various locations on the network. This section provides brief descriptions of these commands. After you verify that the system and VIP have booted successfully and are operational, you can use these commands to verify the status of interface ports. Refer to the publications listed in the section "If You Need More Configuration Information" on page 2, for detailed command descriptions and examples.
The ping command sends an echo request out to a remote device at an IP address that you specify. After sending a series of signals, the command waits a specified time for the remote device to echo the signals. Each returned signal is displayed as an exclamation point (!) on the console terminal; each signal that is not returned before the specified time-out is displayed as a period (.). A series of exclamation points (!!!!!) indicates a good connection; a series of periods (.....) or the messages [timed out] or [failed] indicate that the connection failed.
Following is an example of a successful ping command to a remote server with the address 1.1.1.10:
Router# ping 1.1.1.10 <Return> Type escape sequence to abort. Sending 5, 100-byte ICMP Echoes to 1.1.1.10, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 1/15/64 ms Router#
If the connection fails, verify that you have the correct IP address for the server and that the server is active (powered on), and repeat the ping command.
The loopback test allows you to detect and isolate equipment malfunctions by testing the connection between the 4T port adapter interface and a remote device such as modems or CSU/DSUs. The loopback subcommand sends a series of packets out to and through the device (or cable), and back to the 4T port adapter interface. If the packets complete the loop, the connection is good. If not, you can isolate a fault to the remote device or interface cable in the path of the loopback test.
Depending on the mode of the port, issuing the loopback command checks the following path:
Refer to the appropriate software configuration document for command descriptions and examples.
This completes the configuration procedure for the new 4T port adapter serial interfaces.
Cisco Connection Online (CCO) is Cisco Systems' primary, real-time support channel. Maintenance customers and partners can self-register on CCO to obtain additional content and services.
Available 24 hours a day, 7 days a week, CCO provides a wealth of standard and value-added services to Cisco's customers and business partners. CCO services include product information, software updates, release notes, technical tips, the Bug Navigator, configuration notes, brochures, descriptions of service offerings, and download access to public and authorized files.
CCO serves a wide variety of users through two interfaces that are updated and enhanced simultaneously---a character-based version and a multimedia version that resides on the World Wide Web (WWW). The character-based CCO (called "CCO Classic") supports Zmodem, Kermit, Xmodem, FTP, Internet e-mail, and fax download options, and is excellent for quick access to information over lower bandwidths. The WWW version of CCO provides richly formatted documents with photographs, figures, graphics, and video, as well as hyperlinks to related information.
You can access CCO in the following ways:
http://www.cisco.com
cio.cisco.com
For a copy of CCO's Frequently Asked Questions (FAQ), contact
ciohelp@cisco.com.
For additional information, contact
cioteam@cisco.com.
tac@cisco.com.
To obtain general information about Cisco Systems, Cisco products, or upgrades, contact 800 553-6387, 408 526-7208, or
csrep@cisco.com.
|
Copyright 1988-1996 © Cisco Systems Inc.
