Switching Solutions

Catalyst 5000 Series

Product Overvi ew

Cisco's Catalyst 5000 family offers a complete set of enterprise switching solutions spanning everything from the campus backbone to the desktop. The Cisco Catalyst 5000 family of switches builds on the award-winning architecture of the Catalyst 5000, while delivering two new chassis to address campus intranet needs.

With integrated frame and cell switching, full support for Cisco IOS-based routing, full support for Fast EtherChannel and ATM, and a migration path to future gigabit Ethernet and gigabit EtherChannel, the Catalyst 5000 family is well positioned to evolve as campus bandwidth needs grow.

The media-independent architecture supports all legacy LAN and Asynchronous Transfer Mode (ATM) switching technologies through a wide range of Ethernet, Fast Ethernet, Fiber Distributed Data Interface (FDDI), Token Ring, and ATM switch modules. The Catalyst 5000 family of switches will, over time, evolve to include support for new, emerging technologies such as gigabit Ethernet.

All Catalyst 5000 family switches support NetFlow switching as part of the architecture. NetFlow switching combines the simplicity and speed of switching with the intelligence and scalability of routing. This feature will enable multilayer switching scalability.

A route-switch module (RSM) delivers integrated support for Cisco IOS-based multiprotocol routing, and a NetFlow switching feature card option on supervisor engine II and III will scale your forwarding capacity to millions of packets per second.

Cisco's Catalyst 5000 family features four modular chassis: 2-, 5-, and 13-slot versions. All four chassis share the same set of interface modules and software features, providing scalability while maintaining interoperability and investment protection across all chassis.

The Cisco Catalyst 5000 family consists of the following multilayer switching systems:

Catalyst 5000

: The existing Catalyst 5000 platform is a 5-slot chassis, and it will continue to serve as a platform supporting both wiring closet and data center applications. The five module slots support the required supervisor engine and four additional interface modules. The Catalyst 5000 supports all supervisor engines (including the NetFlow switching feature card option, available in the future), and will support all new line cards as part of a complete solution.
: High-speed connectivity between switches, switches and routers, and switches and servers is provided using standard Fast Ethernet, FDDI, or ATM interfaces. Fast EtherChannel is supported on supervisor engine II ports and on new, Fast EtherChannel-capable line cards on which you can group up to four Fast Ethernet ports, providing up to 800 Mbps of load-sharing, redundant, point-to-point connections between Catalyst 5500, 5505, 5002, and 5000 switches. You can choose dual AC or DC power supplies for fault tolerance.
: The Catalyst 5000 chassis fits into a standard 19-inch rack, and all system components are accessible from the same side of the chassis.

Cata lyst 5002

: The Catalyst 5002 is a 2-slot chassis where one slot is used by the supervisor engine (supporting two built-in Fast Ethernet ports), and the second slot is used for any existing, or new, Catalyst 5000 family module for Ethernet, Fast Ethernet, Token Ring, FDDI, or ATM. The 5002 also supports all supervisor engines (including the NetFlow switching feature card option, available in the future) and the Route Switch module.

Catal yst 5500

: The Catalyst 5500, the 13-slot member of the Catalyst 5000 family, serves as the high-end modular switching platform. With a gigabit Ethernet-ready architecture that scales to more than 50 Gbps and throughput of tens of millions of packets or cells per second (pps), the Catalyst 5500 provides the scalability, flexibility, and redundancy required for building large, switched intranets and can be used in both wiring closet and backbone applications.
: At the same time, the new Catalyst 5500 protects your investment in current Cisco products by seamlessly integrating existing Catalyst 5000 and LightStream 1010 interface modules and features into the new 5500 chassis.

Catalyst 5505

: 5-slot member supporting dual supervisor engines, plus supervisor engine III with high capacity switch fabric.

Standard Features

The Catalyst 5000 family of multilayer switching systems includes the following standard features and options:

Modular 2-, 5-, or 13-slot chassis base chassis does not ship with any modules; these must be ordered separately
Supervisor engine:
- Hardware-based switching backplane with tri-level priority
- Bridge address table for 16,000 MAC addresses
- Network management processor
- Two 100-Mbps Fast Ethernet uplinks
Switching modules with choice of interface options
AC or DC power supply (Catalyst 5000/5500/5505 option)
Second AC or DC power supply option (Catalyst 5002 has dual AC-input power supplies built in)
Hot-swap feature for all power supply and module options
Dual power cord availability
Rack-mounting hardware and cable guide availability
NetFlow switching, providing multilayer support for Layer 2 and Layer 3 switching
Route-switch module multiprotocol layer 3 routing
Media-independent switching backplane
- Accommodates Ethernet, Token Ring, FDDI, and ATM simultaneously in a single system
Three levels of priority on the switching backplane
- Accommodates technologies that use priorities, such as ATM and Token Ring
- Enables user to define priorities on per-interface basis
- Ensures server traffic priority
- Accommodates bursty traffic
- Prevents higher-layer protocols from timing out by giving the interface the highest priority on the backplane until the buffer content is reduced

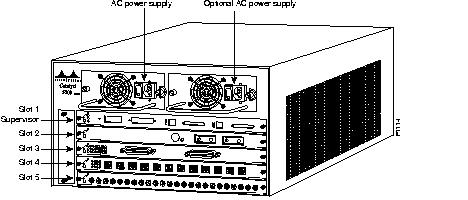

Figure 8-1 shows a rear view of the Catalyst 5000 5-slot chassis with AC-input power supplies installed, and Figure 8-2 shows a rear view with DC-input power supplies installed.

Figure 8-1: Catalyst 5000 Rear View With AC Power Supplies

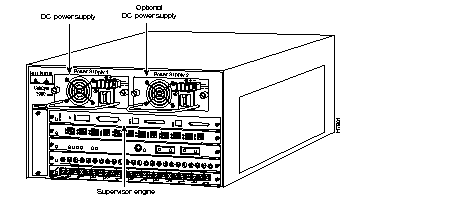

Figure 8-2: Catalyst 5000 Rear View With DC Power Supplies

Figure 8-3 shows a rear view of the Catalyst 5002 2-slot chassis with one installed supervisor engine and one switching module.

Figure 8-3: Catalyst 5002 Rear View

Figure 8-4 shows a rear view of the Catalyst 5500 13-slot chassis with two supervisor engine IIs installed in slots 1 and 2, and an ATM Switch Processor (ASP) module installed in slot 13 with four port adapter modules (PAMs) installed above it.

Figure 8-4: Catalyst 5500 Rear View

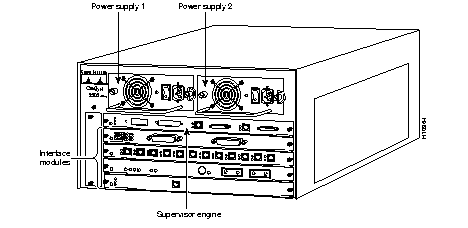

Figure 8-5: Catalyst 5505 Rear View

Table 8-1 summarizes the features of the Catalyst 5000 family, Table 8-2 summarizes the major software features, and lists the environmental specifications.

**Table 8-1: Catalyst 50 00 Family Summary of Features**
Characteristic	Description
Placement	Rack-mounted, front or back (standard 19-inch rack)
Switching backplane	1.2 Gbps (Catalyst 5000 and 5002): Supports over 1 million pps 3.6 Gbps (Catalyst 5500 and 5505)
Memory	4-MB Flash memory (all supervisor engine I models) 8-MB Flash memory (all supervisor engine II models) 8-MB Flash memory + PC Card Flash support (all supervisor engine III models) 16-MB DRAM (supervisor engine II) 4-MB or 20-MB DRAM (supervisor engine I) 16-MB DRAM (supervisor engine II) 32-MB DRAM (supervisor engine III) 128-KB NVRAM (supervisor engine I) 256-KB NVRAM (supervisor engine II and III)
Interfaces	Supervisor console: DB-25 (female) Supervisor 100BaseTX: RJ-45 (female), MII ¹(female) Supervisor 100BaseFX: MMF SC, SMF SC Group Switched 10BaseT: RJ-21 (female), 48 interfaces Switched 10BaseT: RJ-21 and RJ-45 (female), 24 interfaces Switched 10BaseFL Ethernet: ST (female), 12 interfaces Group Switched 100BaseTX: RJ-45 (female), 24 interfaces Switched 10/100BaseTX FE²: MMF RJ-45 (female), 12 interfaces Switched 100BaseFX FE: MMF SC, SMF SC, 12 interfaces Switched Token Ring: RJ-45 copper UTP/STP (female), 16 ports Switched Token Ring: MMF 62.5-micron fiber, 16 ports Switched 10/100BaseTX FE: RJ-45 (female) 24 interfaces ATM LAN Emulation: UTP RJ-45, SMF SC, 1 interface Fast Ether Channel 10/100BaseTX FE: RJ-45 (female), 12 interfaces Fast Ether Channel 100BaseTX FE: MMF SC, 12 interfaces
Interfaces (Continued)	ATM LAN Emulation: UTP RJ-45, MMF SC, SMF SC, dual PHY CDDI: RJ-45 (female), 1 interface FDDI: MMF MIC, SMF ST, 1 interface Optical bypass switch connector: 6-pin mini-DIN
Port adapter modules (for Catalyst 5500)	ATM OC-3: SONET STS3c/SDH STM1, MMF SC or SMF SC, RJ-45, 4 ports ATM OC-12: SONET STS12c/STM4c, SMF SC, 1 port DS-3: 75-ohm coaxial BNC, 2 or 4 T3 DS3 ports E-3: 75-ohm coaxial BNC, 2 E3 ports T1/E1 ATM trunk: RJ-48, 4 ports, balanced or unbalanced T1/E1 circuit emulation: RJ-48, 4 ports, balanced or unbalanced 25 Mbps ATM: Telco cable 96-pin, 12 ATM25 ports
Duplex	10-Mbps Ethernet: Full or half duplex 100-Mbps Fast Ethernet: Full or half duplex 10/100-Mbps Fast Ethernet: Auto-negotiated speed and duplex Token Ring copper: full or half duplex Token Ring fiber: half duplex FDDI: Half duplex ATM: Full duplex Group switched 10BaseT and 100BaseTX: Half duplex
Network Management	CiscoWorks for Switched Internetworks GUI management including the following: CiscoView VlanDirector Traffic Director User Tracking ATMDirector Cisco Discovery Protocol VLAN Trunk Protocol SNMP agent v1 (RFC 1155-1157) SNMP MIB II (RFC 1213) RMON (4 groups) Ethernet MIB (RFC 1643) Ethernet repeater MIB (RFC 1516) Interface Table (RFC 1573) Bridge MIB (RFC 1493) Token Ring MIB (RFC 1748) Source-Route Bridge MIB (RFC 1525) Cisco Stack MIB Extensions (Token Ring group) RMON Token Ring Extensions (RFC 1513) Token Ring extensions for Statistics, History, Alarms, and Events groups Ring Station Order Group Ring Station Control Table FDDI MIB (RFC 1512) SMT 7.3 (RFC 1285) AToM MIB (RFC 1695) ILMI MIB Cisco Workgroup MIB LEC MIB (ATM Forum LANE v1.0) Cisco LECS, LES/BUS MIB E-SPAN
Network management (Continued)	Text-based command-line interface based on familiar router interface Standard Cisco IOS security capabilities: passwords and TACACS Telnet, TFTP, BOOTP, LAN Emulation client, RFC 1577 Classical IP over ATM client, for management access
Standard protocols	Ethernet: IEEE 802.3, 10BaseT, and 10BaseFL Fast Ethernet: IEEE 802.3u, 100BaseTX, 100BaseFX Token Ring: IEEE 802.5r, IEEE 802.5j FDDI: ISO 9314-1 FDDI PHY standard; ISO 9314-3 FDDI PMD standard; CDDI TP-PMD standard; ANSI FDDI X3T9.5 SMT 7.3 ATM: ATM Forum--3.1 UNI Specification, Q.2931 signaling protocols, ATM Forum LANE v1.0
Maximum cabling distances	10BaseT Ethernet: Category 5 UTP, 328 ft (100 m) 10BaseFL Ethernet: 62.5/125-micron fiber, 1.24 miles (2 km) 100BaseTX Fast Ethernet: Category 5 UTP, 328 ft (100 m) 10/100BaseTX Fast Ethernet: Category 5 UTP, 328 ft (100 m) 100BaseFX Fast Ethernet: 62.5/125 multimode fiber, 0.248 mile (400 m) half duplex, 1.24 miles (2 km) full duplex or 8.7/125 single-mode fiber, 6.2 miles (10 km), full or half duplex 4-Mbps Token Ring 150-ohm STP: Types 1, 1a, 2, 2a, 2460 feet (750 m); Type 8, 1234 feet (376 m); Type 9, 1640 feet (500 m) 4-Mbps Token Ring 100-ohm UTP: Category 3, 820 feet (250 m); Category 4, 1148 feet (350 m); Category 5, 1148 feet (350 m) 16-Mbps Token Ring: 150-ohm STP Types 1, 1a, 2, 2a, 952 feet (290 m); Type 8, 480 feet (146 m); Type 9, 656 feet (200 m) 16-Mbps Token Ring 100-ohm UTP: Category 3, 328 feet (100 m); Category 4, 656 feet (200 m); Category 5, 656 feet (200 m) CDDI: Category 5 UTP, 328 ft (100 m) FDDI: 62.5/125 multimode fiber, 1.24 miles (2 km) or 8.7/125 single-mode fiber, 6.2 miles (10 km) ATM LAN emulation module UTP: Category 5 UTP, 328 ft (100 m) ATM LAN emulation module MMF³: 62.5/125-micron fiber, 1.24 miles (2 km) ATM LAN emulation module SMF⁴: 8.7/125-micron fiber, 6.2 miles (10 km)
Fiber-optical specifications	Multimode specifications for modules WS-X5006, WS-X5011, WS-X5114=, WS-X5101, WS-X5158, WS-X5031, and WS-X5506: Transmitter output power: -19 to -14 dBm⁵ Receiver sensitivity: -32.5 to -14 dBm Wavelength: 850 to 1360 nm Optical source: LED Maximum span: 1.24 miles (2 km) Single-mode specifications for modules WS-X5005, WS-X5157, WS-X5114=, WS-X5154, and WS-X5505: Transmitter output power: -14 to -8 dBm Receiver sensitivity: -32.5 to -8 dBm Wavelength: 1261 to 1360 nm Optical source: Laser Maximum span: 6.2 miles (10 km) Single-mode specifications for module WS-X5104: Transmitter output power: -4.0 to-7.0 dBm Receiver sensitivity: -33 to -14 dBm Optical source: Laser Maximum span: 18.63 miles (30 km)
Fiber optical specifications for ASP port adapter modules	OC-12 multimode fiber PAM Transmitter output power: -20 to -14 dBm Receiver sensitivity: -26 to -14 dBm Wavelength: 1270 to 1380 nm Optical source: LED Maximum span: 500 m OC-12 single-mode fiber IR PAM Transmitter output power: -15 to -8 dBm Receiver sensitivity: -28 to -8 dBm Wavelength: 1260 to 1360 nm Optical source: Laser Maximum span: 15 km (intermediate reach) OC-12 single-mode fiber LR PAM Transmitter output power: -3 to 2 dBm Receiver sensitivity: -28 to -8 dBm Wavelength: 1280 to 1335 nm Optical source: Laser Maximum span: 40 km (long reach) OC-3 multimode fiber PAM Transmitter output power: -20 to -14 dBm Receiver sensitivity: -30 to -14 dBm Wavelength: 1270 to 1380 nm Optical source: LED Maximum span: 2 km OC-3 single-mode fiber IR PAM Transmitter output power: -15 to -8 dBm Receiver sensitivity: -28 to -8 dBm Wavelength: 1260 to 1360 nm Optical source: Laser Maximum span: 15 km (intermediate reach) OC-3 mixed-mode fiber IR+ PAM For IR+ only. For MM specifications see OC-3 MM PAM above. Transmitter output power: -8 to -3 dBm Receiver sensitivity: -32 to -3 dBm Wavelength: 1270 to 1380 nm Optical source: Laser Maximum span: 30 km (intermediate reach plus) OC-3 single-mode fiber LR PAM Transmitter output power: -5 to -0 dBm Receiver sensitivity: -34 to -10 dBm Wavelength: 1280 to 1335 nm Optical source: Laser Maximum span: 40 km (long reach)
LEDs	Status LED on each module shows successful completion, minor and major failure of power-up diagnostics Link Good LED shows status of any interface Switch Load LEDs show backplane utilization

¹ MII = media-independent interface
² FE = Fast Ethernet
³ MMF = multimode fiber
⁴ SMF = single-mode fiber
⁵ dBm = decibels per milliwatt

**Table 8-2: Catalyst 5000 Series Major Software Features**
Feature	Functions	Benefits
Bandwidth Management
Fast EtherChannel	Enables two to four full-duplex Fast Ethernet links to be grouped together to form a single logical link or channel between devices that support Cisco's Fast EtherChannel.	Improves network performance by enabling higher-bandwidth channels. Provides bandwidth scalability within the campus by providing increments from 200 to 800 Mbps.
CGMP	CGMP allows Cisco IOS routers to download to a Catalyst switch the identity of multicast clients as they join a multicast group. Using this information, multicast streams are switched to only those ports interested in the specific multicast traffic.	CGMP provides scalable, multicast distribution for all IGMP-capable workstations. CGMP allows Catalyst switches to provide wire-speed multicast delivery while preventing excessive flooding across switched ports within a VLAN.
CGMP Fast Leave Processing	With CGMP Fast Leave Processing the Catalyst 5000 can detect an IGMP V.2 host leave message and immediately prune ports from the specified multicast forwarding tree after a quick check to make sure that no other hosts on the interface need multicast traffic from that particular multicast group.	Reduces processing latency for nodes leaving a multicast group. Ensures maximum performance for every switch port by quickly pruning multicast tree from ports that no longer want multicast traffic.
Broadcast Suppression	Allows the user to set a threshold level for broadcasts on a switch port. Additional broadcasts beyond that threshold rate are discarded.	Preserves network bandwidth by automatically throttling broadcast traffic to a preset level.
Multiple Spanning Trees	Cisco's Catalyst switches run an instance of spanning tree on each defined VLAN for optimal path determination and link utilization.	Enables load balancing and efficient use of links in a switched internetwork through the distribution of VLANs across all available uplinks.
Network Resiliency
Redundant Supervisors	When redundant supervisors are present in a Catalyst 550x chassis, the active supervisor automatically keeps the standby supervisor image and configuration synchronized.	Ensures fast, reliable switch over to a redundant supervisor in a Catalyst switch while minimizing any impact on network users or disruption to connectivity.
Spanning Tree Protocol (STP)	STP is an algorithm which runs in Catalyst switches to ensure full connectivity, optimal path selection, and loop avoidance in a layer 2 switched network topology.	Standards-defined protocol for avoiding network loops at layer 2 and activating redundant links when a primary link fails or a better path becomes available.
Portfast	STP enhancement for user ports on a switch. Allows the port to go immediately into spanning-tree Forwarding state by bypassing Listening and Learning states.	Allows user ports to gain immediate access to the network and avoids loss of a client's first transmitted frames, which are often used by NT and Netware servers to establish server connections.
VLANs
Dynamic VLANs, MAC-address based	Allows the switch to dynamically assign ports to a VLAN based on the source MAC address of the hosts connected to a Catalyst switch port. Utilizes a new protocol, Virtual Query Protocol (VQP), which communicates with the VMPS to determine which VLAN a user's switch port should be configured to.	Allows switch fabric to automatically configure user ports to the correct VLAN with no intervention from the network administrator. After a policy has been set up for a given user's MAC address, that user may plug into any Catalyst 5000 switch carrying their VLAN and be automatically assigned to their VLAN for instant connectivity.
Policy Server, VMPS I	Virtual Membership Policy Server is a server process that manages a database of host source MAC address-to-VLAN mappings that enables a user's workstation to be placed into the correct VLAN.	Empowers network administrators with the ability to define in a central database the VLAN membership policies for their network. Provides user mobility for any port within a switched internetwork.
ISL Trunking Protocol	Inter-Switch Link is a VLAN multiplexing protocol that allows a single link to carry traffic for multiple VLANs between switches by becoming an ISL trunk.	Enables efficient distribution of VLAN traffic across a switched internetwork.
VTP, VTP2	VLAN Trunking Protocol is a protocol that runs on Cisco Catalyst switches to ensure consistency of VLAN configuration between switches. VTP also dynamically maps VLANs across multiple LAN types with unique names and internal index associations. VTP2 extends this protocol to support Token Ring VLANs.	VTP greatly simplifies and helps avoid errors in the configuration of VLANs within the network. The dynamic mapping eliminates excessive device administration required from network administrators.
VTP Pruning	Allows the switch fabric to automatically prune the forwarding tree for VLANs in order to contain traffic from each defined VLAN to only those trunks that require this traffic.	Maximizes efficiency of inter-switch VLAN trunk bandwidth. Allows switched internetworks to scale more effectively by intelligently managing VLAN traffic on trunks and backbones.
Embedded Manageability
CDP	Cisco Discovery Protocol is a "hello-based" Layer 2 protocol that allows network management applications and internetworking devices to learn important attributes about their neighbors and their capabilities.	Provides fast, efficient discovery of Cisco devices on the network.
SNMP, MIB II Agent	The Simple Network Management Protocol provides a light weight protocol for network management stations to access and modify information in a switch. Management Information Base (MIB-II) provides an extensive list of standards-defined information objects or items within the switch.	Standards-based network management access to important switch configuration and monitoring information.
RMON Agent	The embedded mini-Remote Monitoring (RMON) MIB provides the Statistics, History, Alarms, and Events groups with a virtual agent on every Ethernet, Fast Ethernet, Token Ring copper, and Token Ring fiber port in the Catalyst 5000.	Standards-based RFC 1757 RMON provides a very effective traffic analysis capability for each switch port. The Alarms and Events groups can be employed to create a powerful proactive management solution by automatically alerting a network administrator when preset thresholds are exceeded.
SPAN and E-SPAN	Switch Port Analyzer allows the administrator to mirror traffic from a user port, trunk port, or VLAN to an external network analyzer or RMON probe for in-depth traffic analysis.	Provides an effective troubleshooting tool and traffic analysis aid for Catalyst switches while leveraging existing investments in external probes and network analyzers.
Traps	Multiple standard and enterprise-defined traps may be sent from the Catalyst 5000 when predefined system events occur.	Traps provide an efficient standards-defined SNMP-based mechanism for notifying network administrators of important system events.
Syslog	Enables the Catalyst 5000 to internally log important events and to send syslog messages to a syslog daemon running on a management workstation for external logging.	Creates a flexible logging and tracking system for network administrators to obtain detailed event logs and save historical event data to spot trends and aid in troubleshooting their networks.
DISL	Dynamic Inter-Switch Link is an enhancement to Cisco's ISL VLAN trunking protocol that allows neighboring switches to automatically configure ISL trunk links.	Automates network configuration and eliminates user errors from incorrect manual configuration.
Security Services
Port Security	This feature allows the Catalyst 5000 to block input to an Ethernet or Fast Ethernet port when the MAC address of a station attempting to access the port is different from the configured or learned MAC address for that port. Upon a violation the port is disabled, and a link-down trap is sent.	Provides a powerful and easy-to-configure security mechanism based on Media Access Control (MAC) address filtering on each switch port.
TACACS+ support	TACACS+ provides user authentication for access to the Catalyst 5000 system console by determining the identity of a user. Additionally, the Catalyst 5000 encrypts the user's password using the MD5 encryption algorithm before transmitting it to the TACACS+ server for authentication.	Provides security for access to the Catalyst 5000 system console to ensure that only authorized personnel can configure critical networking devices.
IP permit List	Allows an administrator to create a list of permitted IP addresses or subnets to access the system console via Telnet and SNMP agent services. Can send an SNMP trap and log the event to the syslog table when an access attempt is denied.	Adds security to inbound Telnet supervisor console logins and SNMP agent access. Provides a console security mechanism that may be used with or without TACACS+ security.
Standard Feature Set (Release 3.1 and higher)
Fast EtherChannel--Phase II	Full protocol support including: Spanning-Tree, DISL, VTP, and CDP New Cisco Port Aggregation Protocol (PAgP) Enhanced monitoring--Interface-based MIBs for the channel Enables two to four full-duplex Fast Ethernet links to be grouped together Forms a single logical link or channel between devices that support Cisco's Fast EtherChannel technology	PAgP provides fully automated configuration of Fast EtherChannel technology Improves network performance by enabling higher bandwidth channels Provides bandwidth scalability within the campus by providing increments from 200 Mbps to 800 Mbps Resilient and easy-to-manage network topologies
Uplink Fast Convergence-- Spanning-Tree Enhancement	Reduces failover time to two to three seconds for uplinks on a wiring closet switch For a new root port, Spanning Tree transitions immediately to forwarding state on failure detection or root path cost change Fast path relearning via sending of special multicasts for each content-addressable memory (CAM) entry to upstream neighbors; includes an automatic pacing mechanism for these multicasts for cases when the CAM table is large	Rapid switchover to a redundant uplink for wiring closet switches on failure and Spanning-Tree topology recalculations Minimizes network disruptions due to Spanning-Tree convergence Fast path relearning allows upstream neighbors to immediately update their frame-forwarding databases
Uplink Load Balancing--Spanning Tree Enhancement	Enables traffic load balancing across uplinks by providing direct control over the spanning tree port cost for each VLAN on a trunking port By setting a lower relative port cost on the preferred set of VLANs for a given uplink port, Spanning Tree will select that uplink to carry the traffic for those VLANs	Enables the use of all uplink bandwidth in the network while still ensuring the resiliency that redundant uplinks provide Ensures network availability by utilizing any available link(s) in the case of a link failure
Fast Switchover to Redundant Supervisor (to be supported in a 3.1 maintenance release)	Reduces redundant supervisor switchover to 3 to 15 seconds Does not reset line cards nor bring port links down	Provides maximum resilience and ensures full system redundancy for mission-critical environments Minimizes chances of end-user systems timing out when Catalyst 550x supervisors switch over.
SPAN from Multiple Source Ports	Allows the selection of multiple source ports for the SPAN feature	Added flexibility when monitoring switch port traffic with external probes and protocol analysis devices Enables monitoring of multiple Ethernet ports from a single Fast Ethernet probe or analyzer on the SPAN destination port
VLAN Trunk Protocol (VTP) Version 2	Extension to Cisco's VLAN Trunk Protocol to support Token Ring LAN switching	Ensures consistency of VLAN configuration across a LAN switch fabric Maps VLANs across different backbone technologies such as Fast Ethernet, Token Ring, ATM, and Fiber Distributed Data Interface (FDDI) Allows greater scalability because it eliminates complex VLAN administration tasks across each switch
Token Ring VLANs	VLANs for Token Ring switch ports	Provide all the benefits of VLANs such as broadcast containment and subnet address management to Token Ring switch port users
Token Ring VLANs over ISL Trunk Links	ISL trunk links can now carry both Ethernet and Token Ring VLANs	Fast Ethernet ISL trunk links can now carry Token Ring as well as Ethernet VLAN traffic between ISL-capable devices
SNMPv2c Agent	Provides 64-bit counters Provides Get_Bulk	64-bit counter MIB objects are important for the monitoring of high-speed interfaces. Get_Bulk allows efficient retrieval of large MIB tables to provide faster response for users and eliminate unnecessary SNMP requests
Cisco-Flash MIB	MIB designed for administration and management of a Flash memory-based file system within a Cisco internetworking device	Enables the Supervisor Engine III module to upload, download, and manage multiple supervisor images In the future, this will be extended to support multiple images for all intelligent Catalyst 5000 modules
Enhanced Feature Set (Release 3.1 and higher)
Mini-RMON for Fast EtherChannel Technology	Provides RFC 1757 RMON statistics, history, alarm, and event groups Use standard RMON applications such as the TrafficDirector application within CiscoWorks for Switched Internetworks (CWSI) to monitor Fast EtherChannel traffic	Extends valuable RMON traffic analysis and proactive notification capabilities to a logical Fast EtherChannel technology Monitors channel utilization, packet and byte rates, broadcast/multicast/unicast distributions, packet size distributions, and information on errors Enables proactive notification via an SNMP trap to a network management station when user-defined thresholds are exceeded
Mini-RMON Agent for Token Ring Ports	Supports the following RMON groups: MAC-Layer statistics Promiscuous statistics MAC-Layer history Promiscuous history Alarms group Events group	Ring station order Standards-based RFC 1757 and RFC 1513 RMON for Catalyst 5000 Token Ring ports Provides a complete Token Ring Mini-RMON Agent for monitoring traffic statistics Enables proactive notification via an SNMP trap to a network management station when user-defined thresholds are exceeded
RMON Alarm Thresholds on any MIB Object	RMON rising and falling thresholds can be set on, any integer-based MIB object in the Catalyst 5000 SNMP agent	Provides an effective notification mechanism via SNMP traps for any user defined event in the Catalyst 5000 that has a MIB object

**Table 8-3: Catalyst 50 00 Family Environmental Specifications**
Description	Specification
Temperature	Operating: 32°F to 104°F (0°C to 40°C) Storage: -40°F to 167°F (-40°C to 75°C)
Humidity	10 to 90%, noncondensing
MTBF¹	7 years for system configuration
Safety certifications	UL 1950 EN 60950 CSA-C22.2 No. 950 93 IEC 950
Electromagnetic emissions certifications	FCC 15J Class A VCCI Class 2 on shielded UTP CE Mark on shielded UTP EN 55022A Class B on shielded UTP CISPR 22 Class B
AC power requirements	Catalyst 5500 8.0 Amps at 230 VAC², 50 Hz 16 Amps at 115 VAC, 60 Hz Power consumption: 1100W kVA³ = 1.84	Catalyst 5000/5505 8.0 Amps at 100-127 VAC, 60 Hz 4.0 Amps at 200-240 VAC, 50 Hz Power consumption: 376W Heat dissipation: 562.5W, 1919.83 BTUs⁴/hour kVA = 0.8	Catalyst 5002 5.0 Amps at 100 VAC, 60 Hz 2.5 Amps at 200 VAC, 50 Hz Power consumption: 250W kVA = 0.5
DC power requirements	Catalyst 5500 -40.5 VDC⁵ to -72 VDC continuous Typical range (U.S. and Canada) -48 VDC (nominal) -54 VDC (high) -42 VDC (low) Typical range (international) -60 VDC (nominal) -72 VDC (high) -52 VDC (low)	Catalyst 5000 -40.5 VDC⁶ to -72 VDC continuous Typical range (U.S. and Canada) -48 VDC (nominal) -54 VDC (high) -42 VDC (low) Typical range (international) -60 VDC (nominal) -72 VDC (high) -52 VDC (low)	Catalyst 5002 Not applicable
Dimensions (H x W x D)	Catalyst 5500 25.25 x 17.3 x 18.25 in. (64.14 x 43.9 x 46.36 cm)	Catalyst 5000/5505 10.4 x 17.21 x 18.14 in. (26.2 x 42.5 x 44.5 cm)	Catalyst 5002 5.75 x 17 x 18 in. (14.6 x 43.2 x 45.7 cm)
Weight	Catalyst 5500 Minimum: 70 lb (31.7 kg) Maximum: 160 lb (72.5 kg)	Catalyst 5000/5505 Minimum: 43 lb (19.5 kg) Maximum: 88 lb (39 kg) Average shipping: 60 lb (27.2 kg)	Catalyst 5002 35 lb (15.9 kg)

¹ MTBF = mean time between failures
² VAC = volts alternating current
³ kVA = kilovoltampere
⁴ BTU = British thermal units
⁵ VDC = volts direct current
⁶ VDC = volts direct current

Hardware

The Cisco Catalyst 5000 family features three modular chassis: 2-, 5- and 13-slot versions. All four versions fit a standard 19-inch rack. (Rack-mounting hardware and cable guides can be ordered as spares.) Each chassis supports one required supervisor engine (the Catalyst 5500/5505 supports two supervisor engines), and up to two power supplies. All four chassis share the same set of line cards and software features--providing scalability while maintaining interoperability across all chassis.

The Catalyst 5000 family supports hot-swapping of all system components including supervisor engines, interface modules, power supplies, and fans. (Hot-swapping means that all system components can be removed, added, or changed without rebooting or taking the system off line.) Switching modules offer a wide variety of interface choices to accommodate all local area network technologies.

Catalyst 5000 Family Modules

This section describes some of the hardware modules available for the Catalyst 5000, the Catalyst 5002, the Catalyst 5505, and the Catalyst 5500 multilayer switching systems.

Supervisor engine I or II or III

: The supervisor engine modules support Layer 2 and Layer 3 switching and enable network management to provide a completely manageable switching system that delivers high-performance switching for even the most demanding workgroup applications.
: The supervisor engine module contains two Fast Ethernet interfaces for redundant connections to switches, routers, and servers. You can choose dual 100BaseTX and MII, or 100BaseFX in dual multimode, or dual single-mode uplinks. The media-independent interface frame-switching backplane accommodates Ethernet, Token Ring, FDDI, and ATM simultaneously. Further, with Cisco's Fast EtherChannel technology, the two ports can be configured as a single 400-Mbps, fault-tolerant connection.
: The additional benefits of supervisor engine II include support for Fast EtherChannel and Token Ring Switching modules, increased network management performance, and a daughter card that can be upgraded to support NetFlow switching.
: The additional benefits of supervisor engine III include the same as supervisor engine II plus a tripling of the switch fabric capacity and modular uplink capabilities with Gigabit Ethernet (ready) support.

10BaseT Ethernet switching module

: The 10BaseT Ethernet switching module supports 24 or 48 dedicated segments; each can be assigned to a different VLAN. Telco and RJ-45 interfaces are available.

Group Ethernet switching modules

: Group Ethernet and Fast Ethernet switching modules provide a method to divide users into managed switch groups. Group switching combines hub-costing and network management on one module; it is an alternative to shared-media hubs. The 10BaseT 48-port group switching Ethernet module has four 10BaseT Ethernet segments, with groups of 12 users per segment. You can switch each group of 12 ports to any Catalyst 5000 VLAN. Similarly, the 24-port group switching Fast Ethernet module has three 100BaseT Ethernet segments with eight users per segment.

Token Ring modules

: Implementation of Token Ring switching increases the effective bandwidth to end stations without obsoleting installed Token Ring network interface cards (NICs) or the network's wiring infrastructure. The Catalyst 5000 Token Ring module supports IEEE 802.5r specifications. This specification defines standards for the direct attachment of end stations (via concentrator port) to the switch and for the transmission of data at half-duplex (4/16 Mbps) and full-duplex (32 Mbps) speeds. These capabilities allow network administrators to microsegment overloaded ring segments and to provide dedicated switch ports for high-performance file servers. Shielded RJ-45 ports support both 150-ohm shielded twisted pair (STP) and 100-ohm unshielded twisted pair (UTP), providing wiring infrastructure flexibility.
: The multimode fiber Token Ring module supports the IEEE 802.5j standard for ring-in/ring-out (RI/RO) compliance as well as the fiber lobe attachment of end stations over a 2-km drive distance. The fiber ports also support the proprietary RI/RO signaling used for attaching to the IBM 8230 and the Olicom OC-3610 Controlled Access Unit.
: Both the copper and fiber Token Ring Switching modules require supervisor engine II or higher to be installed in the catalyst switch.

10/100BaseTX Fast Ethernet s witching module

: The 10/100BaseTX module supports autosensing and autonegotiation, which sets the appropriate speed and duplex mode (half or full) for the switched connection and adapter interface.

ATM LAN Emulation m odules

The ATM LAN Emulation dual PHY module delivers fault tolerance for critical network applications via two unique features:

Dual-homed ATM

: Dual PHY ATM allows network administrators to deploy redundant connections from one uplink port. Similar to FDDI dual homing, the Catalyst 5000 dual PHY module provides link redundancy by duplicating the data link with a primary and secondary interface. If connectivity is lost on the primary interface, data connectivity automatically switches over to the redundant secondary interface.

LAN Emulation (LANE) server redundancy

: Each Catalyst 5000 ATM LANE module delivers redundant LANE services using Cisco's LANE simple server redundancy protocol (SSRP). Cisco's SSRP allows the enterprise-wide deployment of ATM by removing LANE servers as a single point of failure.

ATM Switch Processor (ASP) module (Catalyst 5500 only)

: The ASP module has a field-replaceable feature card and a 100-MHz MIPS R4600 processor running Cisco IOS software. The ASP supports a wide range of port adapter modules for a variety of ATM interfaces.

Route Switch Module (RSM)

: Each RSM delivers integrated inter-VLAN routing on the backplane of the switch, improving network traffic patterns. The WS-5302 route switch module, the latest member of the Catalyst 5000 series of line modules, provides the performance, scalability, and sophisticated multiprotocol capabilities of Cisco IOS software integrated into the award-winning Catalyst 5000 switch series.

This variety of interface modules offers the flexibility to accommodate today's dynamic network topologies and the scalability to meet bandwidth, speed, and application advancements today and in the future.

Catalyst 5000 Route Switch Module

The WS-X5302 route switch module, the latest member of the Catalyst 5000 series of line modules, provides the performance, scalability, and sophisticated multiprotocol capabilities of Cisco IOS software integrated into the award-winning Catalyst 5000 switch series. With the introduction of the route switch module, the Catalyst 5000 becomes the first truly multiprotocol, multilayer switch available today, and allows network managers the option to deploy cost-effective distributed Layer 3 services from the wiring closet to the data center. The route switch module provides high-performance, multilayer switching and routing services between switched VLANs, emulated LANs within an ATM fabric, or across mixed media via an optional VIP and port adapters.

Multiprotocol Switching with Cisco IOS Software

The Cisco Catalyst 5000 series route switch module builds on the Route Switch Processor (RSP) featured in Cisco's premier multiprotocol routing platform, the Cisco 7500. It combines Cisco Systems proven software technology with the exceptional performance features of the Catalyst 5000 series of LAN switches to meet the requirements of today's mission-critical networks. The route switch module delivers the full suite of Cisco IOS software services, which includes the widest set of protocols available on any multilayer switch:

IP--Interior Gateway Routing Protocol (IGRP), Enhanced IGRP, Routing Information Protocol (RIP), Open Shortest Path First (OSPF), Border Gateway Protocol Version 4 (BGP4)
IPX--RIP, SAPs, NetWare Link Services Protocol (NLSP), Enhanced IGRP
AppleTalk
DECnet
VINES
Xerox Network Systems (XNS)
Systems Network Architecture (SNA)
Multimedia services--Protocol Independent Multicast (PIM), Resource Reservation Protocol (RSVP), Cisco Group Management Protocol (CGMP)
Security Services--access lists, encryption, Lock and Key
Class of Service (CoS)--RSVP, Weighted Fair Queuing (WFQ), Random Early Detection (RED)

The Catalyst 5000 series route switch module offers multiple software feature sets and feature licenses, which allow the selection of a package that best meets the user's network needs. Network managers can select from multiple feature sets, which can be enhanced with additional feature licenses. If requirements change in the future, an easy software change can be made to upgrade to a higher-level feature set or add another feature license. Feature licenses include encryption, network address translation (NAT), and interdomain routing.

Features and Benefits

The route switch module offers a rich set of capabilities that address the need for performance, reliability, and multiprotocol switching support that is required for networks both today and in the future. Table 8-4 lists these features.

**Table 8-4: Route Switch Module Features**
Feature	Benefits
Cisco IOS Software	Multiprotocol switching Support for IP, IPX, AppleTalk, DECnet, VINES, XNS, SNA Multiple routing protocols--RIP, IGRP, Enhanced IGRP, OSPF, NLSP Value-added features such as NAT, RED, WFQ Scalability, security, resiliency Feature set upgrades on regularly scheduled release cycle Well-known CLI and command structure
NetFlow	High-performance Layer 3 switching with network services: Security services CoS enablement Flow management
Hot Standby Routing Protocol	Redundancy, resiliency, load sharing
PIM, CGMP, RSVP	Integrated multimedia support
Consistent Architecture	Compatible with Catalyst 5000, 5002, 5500 Compatible with all existing line cards
Multiple Route Switch Modules per Chassis	Load balancing, scalable Layer 3 performance
Slot Independent, Hot-Swappable	Ease of use, no downtime during maintenance
Route Switch Module Design Based on RSP Design	Supports RSP standard DRAM SIMMs, Flash memory, and PC Card modules
System Flash Memory	Enables fast, reliable software and microcode updates
Web-Browser Interface	Provides an easy navigation tool through the CLI and allows the user to check status through an easy point-and-click interface
Versatile Interface Processor	Non-LAN media support--HSSI, Packet over SONET, Integrated Services Digital Network (ISDN), T1, E1
Common Port Adapters with Cisco 7000, 7200, 7500 VIPs	Simplifies sparing Protects customer investment
CiscoView and NETSYS Support	Consistent management across platforms; Layer 2 and Layer 3 "what if" analysis

Product Numbers

This section describes the product numbers associated with the Catalyst 5000 family (Table 8-5). If a product number ends with an equal sign (=), the item can be ordered only as a spare. If a product number does not end with an equal sign, the item can be ordered as a spare or as a configurable part of a system order. When you order a product as a spare, remember to include the equal sign.

**Table 8-5: Catalyst 50 00 Family Product Numbers**
Description	Product Number
Catalyst 5500 System
Catalyst 5500 chassis	WS-C5500
Catalyst 5500 chassis with single AC power supply	WS-C5507=
Catalyst 5500 single AC power supply	WS-C5508
Catalyst 5500 second AC power supply	WS-C5508/2
Catalyst 5500 single DC power supply	WS-C5568
Catalyst 5500 second DC power supply	WS-C5568/2
Catalyst 5500 rack-mount kit and cable organizer (spare)	WS-C5599=
Catalyst 5500 fan tray (spare)	WS-C5504=
Catalyst 5500 backplane clock module (spare)	WC-C5505=
Catalyst 5500 RMON agent license	WS-C5500-EMS-LIC
Catalyst 5500 SMARTnet maintenance	See the "Service and Support" chapter.
Catalyst 5505 System
Catalyst 5505 chassis	WS-C5505
Catalyst 5505 chassis with single WS-C5008B AC power supply (spare)	WS-C5505-CHAC=
Catalyst 5505 backplane clock module (spare)	WS-C5505-CL=
Catalyst 5505 AC power supply	WS-C5008B
Catalyst 5505 second AC power supply (spare)	WS-C5008B/2
Catalyst 5505 RMON agent license	WS-C5505-EMS-LIC
Catalyst 5505 SMARTnet maintenance	CON-SNT-WS-C5505
Catalyst 5000 System
Catalyst 5000 chassis	WS-C5000
Catalyst 5000 chassis with single AC power supply (spare)	WS-C5007=
Catalyst 5000 single AC power supply	WS-C5008A
Catalyst 5000 second AC power supply (optional)	WS-C5008A/2
Catalyst 5000 single DC power supply	WS-C5068
Catalyst 5000 second DC power supply (optional)	WS-C5068/2
Catalyst 5000 rack-mount kit and cable organizer (spare)	WS-C5099=
Catalyst 5000 RMON agent license	WS-C5K-EMS-LIC
Catalyst 5000 Release 2.1 memory upgrade	MEM-C5K-4M-V21
Catalyst 5000 Release 2.2 custom memory upgrade	MEM-C5K-16M-Custom=
Catalyst 5000 Release 2.2 memory upgrade	MEM-C5K-16M=
Catalyst 5000 series User Guide	DOC-5000UG3=
Catalyst 5000 series Configuration Guide and Command Reference	DOC-5000CGCR3=
Catalyst 5000 SMARTnet maintenance	CON-SNT-WS-C5001
Catalyst 5002 System
Catalyst 5002 chassis (with integrated dual AC power supplies)	WS-C5002
Catalyst 5002 RMON agent license	WS-C5002-EMS-LIC
Catalyst 5002 SMARTnet maintenance	CON-SNT-WS-C5002
Supervisor Engines
Catalyst 5000/5002 supervisor engine I, 100BaseTX	WS-X5009
Catalyst 5000/5002 supervisor engine I, 100BaseFX (SMF)	WS-X5005
Catalyst 5000/5002 supervisor engine I, 100BaseFX (MMF)	WS-X5006
Catalyst 5000/5002/5500 supervisor engine II, 100BaseTX and MII	WS-X5509
Catalyst 5000/5002/5500 supervisor engine II, 100BaseFX (MMF)	WS-X5506
Catalyst 5000/5002/5500 supervisor engine II, 100BaseFX (SMF)	WS-X5505
Catalyst 5002/5000/5505/5500 supervisor engine III base module	WS-X5530-E1
Supervisor Engines
Dual port 100BaseTX uplink module for supervisor III	WS-U5531-FETX
Dual port 100BaseFX MMF uplink module for supervisor III	WS-U5533-FEFX-MMF
Dual port 100BaseFX SMF uplink module for supervisor III	WS-U5535-FEFX-SMF
Interface Modules
Catalyst 5500, 5000, and 5002
Catalyst 5000 16-port copper token ring switching module	WS-X5030
Cat5k TR switching module software Flash 3.1.1	SFC5K-TR-3.1.1
Cat5k TR switching module software Flash 3.1.1	SWC5K-TR-3.1.1=
C5K SW Flash for TR and ENET LANE for ATM dual phy module	SFC5-TELANE100.1
C5K SW Flash for TR and ENET LANE for ATM dual phy module	SWC5-TELANE100.1=
Catalyst 5000 ATM LANE module (UTP, RJ-45)	WS-X5153
Catalyst 5000 ATM LANE module (single mode, SC)	WS-X5154
Ethernet switching module (10BaseT, 24 interfaces, Telco)	WS-X5010
Ethernet switching module (10BaseFL, 12 interfaces)	WS-X5011
Desktop Ethernet Switching module (10BaseT, 48, Telco)	WS-X5012
Ethernet switching module (10BaseT, 24 RJ-45)	WS-X5013
Fast Ethernet 10/100 switching module (10/100 autonegotiating, 24, RJ-45) (No ISL)	WS-X5224
Group Ethernet switching module (10BaseT, 48, Telco)	WS-X5020
Fast Ethernet switching module (10/100BaseTX, autonegotiation, 12, RJ-45) (ISL every port.)	WS-X5213A
Group switched 100BaseTX Ethernet (24, RJ-45)	WS-X5223
Fast Ethernet switching module (100BaseFX, 12 ports MMF)	WS-X5111
Fast Ethernet switching module (100BaseFX, 6 ports MMF, 6 ports SMF)	WS-X5114
Fast Ethernet switching module with Fast EtherChannel (100BaseFX, 12, SC)	WS-X5201
Fast Ethernet switching module with Fast EtherChannel (10/100BaseTX, 12, RJ-45)	WS-X5203
Token Ring UTP/STP switching module (4/16 Mbps, 16 ports)	WS-X5030
Token Ring fiber switching module (MMF, 16 ports)	WS-X5031
CDDI module (UTP, RJ-45)	WS-X5103
FDDI module (multimode, MIC)	WS-X5101
FDDI module (single mode, ST)	WS-X5104
ATM LAN Emulation module, dual PHY, UTP ¹,²	WS-X5156
ATM LAN Emulation module, dual PHY, MMF SC	WS-X5158
ATM LAN Emulation module, dual PHY, SMF SC	WS-X5157
Route Switch Module (RSM) (Inter-VLAN Layer 3)	WS-X5302
Catalyst 5500 Only
ASP (ATM Switch Processor plus feature card 1)	L1010-ASP-B-FC1
DRAM Options for the ASP
ASP DRAM 16-MB SIMM	MEM-ASP-16M
ASP DRAM 32-MB SIMM	MEM-ASP-32M
ASP DRAM 64-MB SIMM	MEM-ASP-64M
Flash Memory Cards
PCMCIA Flash memory card, 8 MB (spare)	MEM-ASP-FLC8M=
PCMCIA Flash memory card, 16 MB (spare)	MEM-ASP-FLC16M=
PCMCIA Flash memory card, 20 MB (spare)	MEM-ASP-FLC20M=
Cisco/OS software for ATM feature set, version 11.2.2	SF-WAS3-11.2.2
Cisco/OS software for ATM feature set (spare)	SW-WAS3-11.2.2=
Carrier Modules
Carrier module for 2-port PAMs³ with slot covers for empty slots	WATM-CAM-2P
CAM⁴ slot cover (spare)	WATM-CAM-CVR=
PAM slot cover (spare)	WAI-CVR=
Catalyst 5500 Port Adapter Modules
ATM OC-3, 155-Mbps multimode fiber	WAI-OC3-4MM
ATM OC-3, 155-Mbps single-mode fiber	WAI-OC3-4SS
ATM OC-3, 155-Mbps unshielded twisted pair, Category 5 (UTP-5)	WAI-OC3-4U5
ATM OC-12, 622-Mbps single-mode fiber	WAI-OC12-1SS
DS-3 with 2 T3 ports, coaxial cable, BNC connectors	WAI-T3-2BNC
E-3 with 2 ports, coaxial cable, BNC connectors	WAI-E3-2BNC
E-3 with 4 ports, coaxial cable, BNC connectors⁵	WAI-E3-4BNC
T1 ATM trunk	WAI-T1-4RJ48
E1 ATM trunk (balanced)	WAI-E1-4RJ48
E1 ATM trunk (unbalanced)	WAI-E1-4BNC
T1 circuit emulation	WAI-T1C-4RJ48
E1 circuit emulation (balanced)	WAI-E1C-4RJ48
E1 circuit emulation (unbalanced)	WAI-E1C-4BNC
25-Mbps ATM	WAI-ATM25-12P
Route Switch Module
Catalyst 5000 Switch Route Module	WS-X5302
Catalyst 5000 Versatile Interface Processor-2 (VIP-2) Model 15	WS-X5303-15=
Catalyst 5000 Versatile Interface Processor-2 (VIP-2) Model 40	WS-X5303-40=
Catalyst 5000 RSM/VIP2-15	WS-X5304-15
Catalyst 5000 RSM/VIP2-40	WS-X5304-40
RSM console cable (spare)	CAB-RSM2CON=
RSM auxiliary cable (spare)	CAB-RSM2AUX=
RSM Flash Credit Card: 16 MB (default)	MEM-RSM-FCL16M
RSM Flash Credit Card: 20 MB Option	MEM-RSM-FCL20M
RSM 32-MB DRAM option (default)	MEM-RSM-32M
RSM 64-MB DRAM option	MEM-RSM-64M
RSM 128-MB DRAM option	MEM-RSM-128
RSM NetFlow License (default)	FR-NFC5
Cisco IOS Catalyst 5000 RSM WAN packet protocols license	FRC5-WPP=
Cisco IOS Catalyst 5000 RSM NAT license	FRC5-NAT
Cisco IOS Catalyst 5000 RSM IP with VIP feature set	SFC5CV-11.2.9P
Cisco IOS Catalyst 5000 RSM desktop with VIP feature set	SFC5BV-11.2.9P
Cisco IOS Catalyst 5000 RSM enterprise with VIP feature set	SFC5AV-11.2.9P
CiscoWorks for Switched Internetworks (CWSI)
CiscoWorks for switched Internetworks--IBM AIX	CWSI-1.3-NV
CiscoWorks for switched Internetworks-IBM AIX upgrade	CWSI-1.3-NV-UG
CiscoWorks for switched Internetworks--HP UX	CWSI-1.3-OVH
CiscoWorks for switched Internetworks--HP UX upgrade	CWSI-1.3-OVH-UG
CiscoWorks for switched Internetworks--Windows NT	CWSI-1.3-WIN-NT
CiscoWorks for switched Internetworks--Windows NT upgrade	CWSI-1.3-WIN-NT-UG
CiscoWorks for switched Internetworks--Solaris (HPOV and SNM)	CWSI-1.3.1-SOLAR
CWSI-Solaris (HPOV and SNM)--upgrade	CWSI-1.3.1-SOLAR-U
Telco Cables

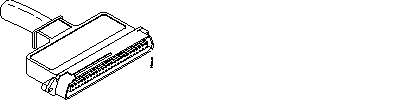

Category 3 Telco Cable Assy. M90 to F90,5'	CAB-3-M90F90-5=
Category 3 Telco Cable Assy. M90 to F90, 10'	CAB-3-M90F90-10=
Category 3 Telco Cable Assy. M180 to F90, 5'	CAB-3-M180F90-5=
Category 3 Telco Cable Assy. M180 to F90, 10'	CAB-3-M180F90-10=
Category 3 Telco Cable Adapter (110 degrees)	CAB-3-ADPTR-TEL=
Network Management
CiscoWorks for Switched Internetworking is now available	See the "Internetwork Management Applications" chapter.
Service and Documentation
SMARTnet	See the "Service and Support" chapter.
Documentation	See the "Documentation" chapter.

¹ For cable and connector information, see"ATM Cable Specifications" in the "Cables and Transceivers"chapter.

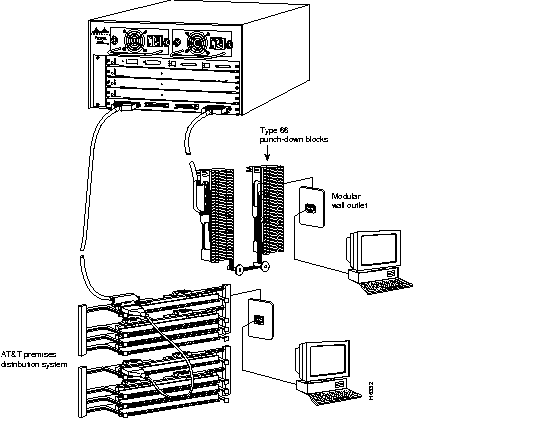

² For wiring layout examples, see the section titled, "Wiring Layouts for the Catalyst 5000 Family," later in this chapter.
³ PAM = port adapter module.
⁴ CAM = carrier module.
⁵ This port adapter module is only available with the Cisco IOS software for ATM maintenance Release 2 or later releases.

Configuration Guidelines

This section provides guidelines for configuring the Catalyst 5500 carrier modules and port adapters for the ATM switch processor module (ASP).

The amount of DRAM required for a Catalyst 5500 configured with an ASP module is a function of the number of active physical and logical ports (VP tunnels) and the expected number of active switched virtual circuits (SVCs) through the switch. For DRAM requirement guidelines, see"Configuration Guidelines" in the "Cisco LightStream 1010" chapter.

The base chassis does not ship with any carrier modules (CAMs); these must be ordered separately. They can be ordered at the same time as the chassis if you want to have them installed in the factory. Because each CAM can support up to two port adapter modules (PAMs) the minimum number of CAMs required varies with the number of supported PAMs (as shown in Table 11-4 in the "Cisco LightStream 1010" chapter).

Note CAMs ordered as spares will be shipped with two PAM slot covers. CAMs installed in the factory will ship with PAM slot covers for any slots not occupied by PAMs.

Port adapter modules must be ordered separately. They can be ordered at the same time as the chassis if you want to have them installed in the factory. Note, however, that an appropriate number of CAMs should be ordered at the same time as the PAMs when all components are ordered with a switch chassis. There are no slot dependencies for PAMs--these can be plugged into any available PAM slot on any CAM. Table 8-5 lists product numbers for the Catalyst 5000 Series Switching Modules.

**Table 8-6: Catalyst 5000 Series Switching Modules**
Product	Number of Interfaces Supported per Module	Catalyst 5002	Catalyst 5000	Catalyst 5500
Catalyst 5002, 5000, 5500 Switching Modules
Group Switched 10BaseT Ethernet	48	48	192	528
Switched 10BaseT Ethernet (RJ-21)	24	24	96	264
Switched 10BaseT Ethernet (RJ-45)	24	24	96	264
Switched 10BaseFL Ethernet	12	12	48	132
Group Switched 100BaseTX Ethernet	24	24	96	264
Switched 10/100BaseTX Fast Ethernet	12	14	50	134
Switched 100BaseFX Fast Ethernet	12	14	50	134
Switched Token Ring copper	16	16	64	176
Switched Token Ring fiber	16	16	64	176
ATM LAN Emulation	2	1 (Dual PHY)	3 (Dual PHY)	7 (Dual PHY)
CDDI/FDDI	1	1	4	11
Calalyst 5500 ATM Switching Modules
ATM OC-3 155-Mbps Multimode Fiber	4	N/A	N/A	32
ATM OC-3 155-Mbps Single-mode Fiber	4	N/A	N/A	32
ATM OC-3 155-Mbps Unshielded Twisted-Pair, Category 5 (UTP-5)	4	N/A	N/A	32
ATM OC-12, 622-Mbps Single-Mode Fiber	1	N/A	N/A	8
DS3	2/4	N/A	N/A	16/32
E3	2	N/A	N/A	16
T1/ET ATM Trunk	4	N/A	N/A	32
T1/E1 Circuit Emulation	4	N/A	N/A	32
25-Mbps ATM	12	N/A	N/A	96

The Flash memory PCMCIA cards are not required for operation and can only be ordered as spares.

Configuration Worksheets

The Catalyst 5000 family systems have many options. Use the Catalyst 5000 family Configuration Worksheets that follow to help you plan your order or to upgrade an existing system. One blank worksheet is provided for the Catalyst 5000 and the Catalyst 5002 combined, and one blank worksheet is provided for the Catalyst 5500. You can make extra copies as needed.

Use Table 8-7 to help you fill in the configuration worksheet. The following choices apply to all three models except where noted. Circle your choices, then plan your system configuration by filling in the appropriate worksheet.

**Table 8-7: Configuration Worksheet Planner**
	Catalyst 5000	Catalyst 5002	Catalyst 5500	Catalyst 5505
Chassis:	WS-C5000	WS-C5002	WS-C5500	WS-C5505
AC power supply:	WS-C5008A	N/A	WS-C5508	WS-C5008B
Dual AC power supply: (optional)	WS-C5008A/2	N/A	WS-C5508/2	WS-C5508B/2
DC power supply:	WS-C5068	N/A	WS-C5568	Future
Dual DC power supply: (optional)	WS-C5068/2	N/A	WS-C5568/2	Future
Rack-mounting hardware:	WS-C5099=	N/A	WS-C5599=	WS-C5099=
AC power cord:	U.S. (CAB-7KAC)--standard if not specified
	Italy (CAB-7KACI)	Australia (CAB-7KACA)
	U.K. (CAB-7KACU)	Europe (CAB-7KACE)

Catalyst 5000/5002 Configuration Worksheet

**Table 8-8: Catalyst 5000/5002 Configuration Worksheet**
Switching and Backbone Modules (One Per Slot Maximum)	Product Number	Slot¹ 1	Slot² 2	Slot 3	Slot 4	Slot 5
Catalyst 5000 5-slot chassis	WS-C5000	X	X	X	X	X
Catalyst 5002 2-slot chassis	WS-C5002	X	X	X	X	X
Supervisor engine I, 100BaseTX	WS-X5009		X	X	X	X
Supervisor engine I, 100BaseFX (MMF)	WS-X5006		X	X	X	X
Supervisor engine I, 100BaseFX (SMF)	WS-X5005		X	X	X	X
Supervisor engine II, 100BaseTX	WS-X5509		X	X	X	X
Supervisor engine II, 100BaseFX (MMF)	WS-X5506		X	X	X	X
Supervisor engine II, 100BaseFX (SMF)	WS-X5505		X	X	X	X
Ethernet switching module (10BaseT)	WS-X5010	X
Group Ethernet switching module (10BaseT)	WS-X5020	X
Ethernet switching module (10BaseFL)	WS-X5011	X
Fast Ethernet switching module (10/100BaseTX)	WS-X5213A	X
Group Fast Ethernet switching module (100BaseTX)	WS-X5223	X
Fast Ethernet switching module (100BaseFX, MMF)	WS-X5111	X
Fast Ethernet switching module (100BaseFX, MMF/SMF)	WS-X5114	X
Token Ring copper switching module (UTP/STP)	WS-X5030³	X
Token Ring fiber switching module (MMF)	WS-X50313	X
CDDI module (UTP)	WS-X5103	X
FDDI module (multimode)	WS-X5101	X
FDDI module (single mode)	WS-X5104	X
ATM LANE⁴ module (dual PHY, UTP)	WS-X5156	X
ATM LANE4 module (dual PHY, MMF)	WS-X5158	X
ATM LANE4 module (dual PHY, SMF)	WS-X5157	X
RSM	WS-X5302	X

¹ Slot 1 reserved for supervisor engine. May choose any supervisor engine I or supervisor engine II model.
² In both the Catalyst 5000 and the Catalyst 5002, slot 2 is reserved for line card use. The Catalyst 5002 has only 2 slots.
³ W5-X5030 and WS0X5031 work only with supervisor II and above.
⁴ Limit of 3 LAN Emulation modules in the Catalyst 5000.

Note When ordering a Catalyst 5500, the following slot restrictions apply: Slot 1 requires a supervisor engine (the Catalyst 5500 requires the supervisor engine II model); slot 2 supports a second supervisor engine, or a choice of any switching module; slot 13 is reserved for the ASP module; slots 9 through 12 can be either the ATM port adapter modules or a choice of any switching modules.

Catalyst 5500/5505 Configuration Worksheet

**Table 8-9: Catalyst 5500/5505 Configuration Worksheet**
Backbone, Switching, and Port Adapter Modules	Product Number	C5505					Slot 6	Slot 7	Slot 8	Slot 9	Slot 10	Slot 11	Slot 12	Slot 13
Backbone, Switching, and Port Adapter Modules	Product Number	Slot 1	Slot 2	Slot 3	Slot 4	Slot 5	Slot 6	Slot 7	Slot 8	Slot 9	Slot 10	Slot 11	Slot 12	Slot 13
Catalyst 5500 13-slot chassis	WS-C5500	X	X	X	X	X	X	X	X	X	X	X	X	X
Supervisor engine II, 100BaseTX	WS-X5509			X	X	X	X	X	X	X	X	X	X	X
Supervisor engine II, 100BaseFX (MMF)	WS-X5506			X	X	X	X	X	X	X	X	X	X	X
Supervisor engine II, 100BaseFX (SMF)	WS-X5505			X	X	X	X	X	X	X	X	X	X	X
Supervisor engine III	WS-X5530-E1
Ethernet switching module (10BaseT, Telco)	WS-X5010	X												X
Ethernet switching module (10BaseT, RJ-45)	WS-X5013	X												X
Group Ethernet switching module (10BaseT)	WS-X5020	X												X
Ethernet switching module (10BaseFL)	WS-X5011	X												X
Fast Ethernet switching module 10/100BaseTX)	WS-X5213A	X												X
Group Fast Ethernet switching module (100BaseTX)	WS-X5223	X												X
Fast Ethernet switching module (100BaseFX, MMF)	WS-X5111	X												X
Fast Ethernet switching module (100BaseFX, MMF/SMF)	WS-X5114	X												X
Token Ring copper switching module (UTP/STP)	WS-X5030¹	X
Token Ring fiber switching module (MMF)	WS-X50311	X
CDDI module (UTP)	WS-X5103	X												X
FDDI module (multimode)	WS-X5101	X												X
FDDI module (single mode)	WS-X5104	X												X
ATM LANE² module (dual PHY, UTP)	WS-X5156	X												X
ATM LANE2 module (dual PHY, MMF)	WS-X5158	X												X
ATM LANE2 module (dual PHY, SMF)	WS-X5157	X												X
ASP (ATM Switch Processor plus feature card 1)	L1010-ASP-B-FC	X	X	X	X	X	X	X	X	X	X	X	X
ATM OC-3 (MMF) port adapter module	WAI-OC3-4MM	X	X	X	X	X	X	X	X					X
ATM OC-3 (SMF) port adapter module	WAI-OC3-4SS	X	X	X	X	X	X	X	X					X
ATM OC-3 (UTP-5) port adapter module	WAI-OC3-4U5	X	X	X	X	X	X	X	X					X
ATM OC-12 (SMF) port adapter module	WAI-OC12-1SS	X	X	X	X	X	X	X	X					X
DS-3 port adapter module	WAI-T3-2BNC	X	X	X	X	X	X	X	X					X
E-3 port adapter module with 2 ports	WAI-E3-2BNC	X	X	X	X	X	X	X	X					X
E-3 port adapter module with 4 ports	WAI-E3-4BNC	X	X	X	X	X	X	X	X					X
T1 ATM trunk port adapter module	WAI-T1-4RJ48	X	X	X	X	X	X	X	X					X
E1 ATM trunk (balanced) port adapter module	WAI-E1-4RJ48	X	X	X	X	X	X	X	X					X
E1 ATM trunk (unbalanced) port adapter module	WAI-E1-4BNC	X	X	X	X	X	X	X	X					X
T1 circuit emulation port adapter module	WAI-T1C-4RJ48	X	X	X	X	X	X	X	X					X
E1 circuit emulation (balanced) port adapter module	WAI-E1C-4RJ48	X	X	X	X	X	X	X	X					X
E1 circuit emulation (unbalanced) port adapter module	WAI-E1C-4BNC	X	X	X	X	X	X	X	X					X
25-Mbps ATM port adapter module	WAI-ATM25-12P	X	X	X	X	X	X	X	X					X
RSM	WS-X5302	X												X

¹ WS-X5030 and WX-X5031 work only with supervisor II and above.
² Limit of 7 LAN Emulation modules in the Catalyst 5500.

Ca talyst 5000 Family Wiring Layouts

Figure 8-6 through Figure 8-9 provide examples of commonly used wiring layouts for the Catalyst 5000 family.

Figure 8-6: 180-Degree Male Telco Connector
(for WS-X5020 and WS-X5010 10BaseT modules)

Figure 8-7: 90-Degree Male Telco Connectors
(for WS-X5010 10BaseT modules only)

Figure 8-8: Velcro Ties for Fastening 90-Degree Telco Connector Cables

Figure 8-9: Catalyst 5000 with a 48-Port Group Switching 10BaseT Module
Using 180-Degree Telco Connectors

Table of Contents

Switching Solutions
